Product details

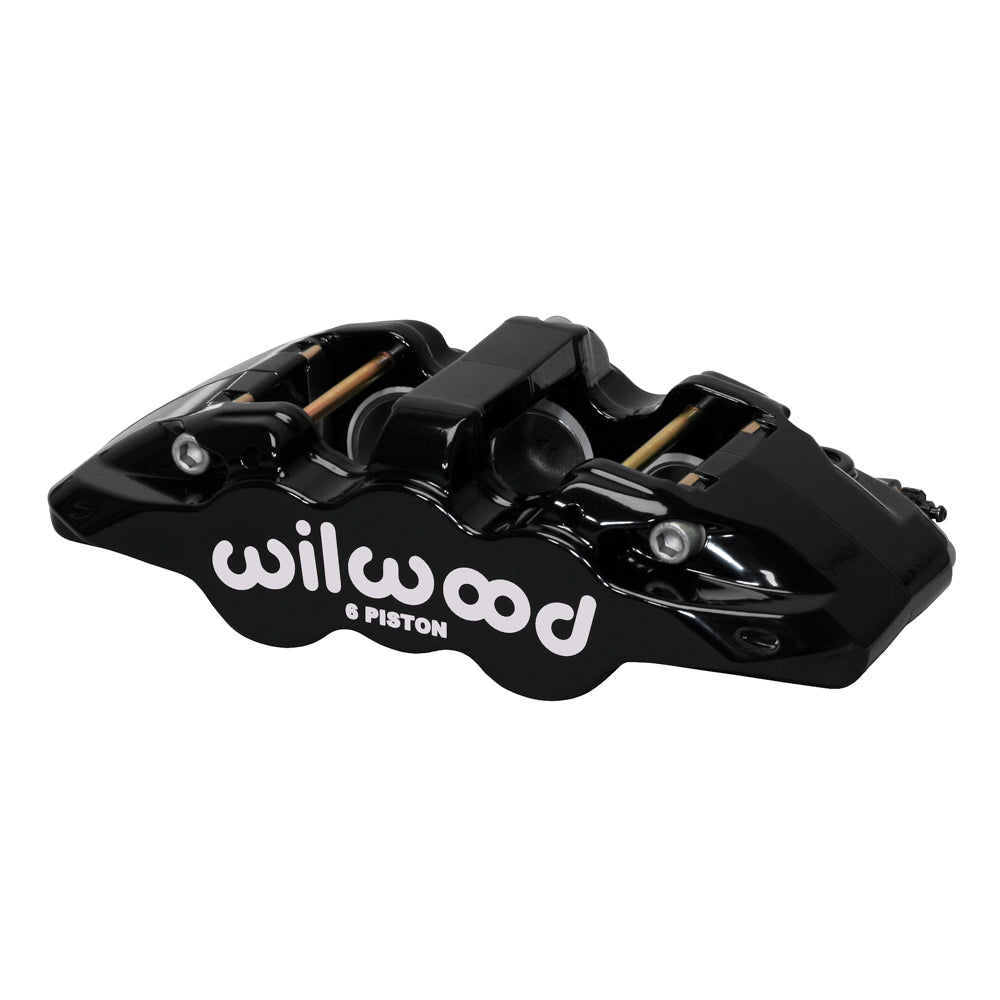

An individual Wilwood Aero6 right brake caliper, finished in black, is specified here. Use the 1.75/1.62/1.62-inch piston bores, 7.09-inch mounting centers and 1.25-inch rotor width to compare it with the existing brake assembly. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures calipers, rotors, master cylinders, valves, fittings and brake lines as part of its disc brake range. Its motorsport, street-performance and specialized products are chosen around the requirements of the whole braking system. Aero6 is a forged six-piston hydraulic caliper with internal fluid passages. Differential piston bores, radial bracket spacing and rotor dimensions determine the assembly. Select the pad compound separately for the operating temperature and use of the complete brake system.
Technical Details
- Manufacturer part number: 120-16892-BK
- Component: Aero6 Radial Mount; one individual caliper
- Placement: Right
- Construction and finish: Forged aluminum; Black Powder Coat
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–15.00 inches
- Caliper weight reference: 6.9 lb
- Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
- Hydraulic piston area: 6.52 square inches
- Dust boots: No
- Brake pad shape: 6620; shape number does not specify a friction compound
- Mounting interface: Radial; mounting centers 7.09 inches
- Mounting-hole diameter: 0.45 inches
- Mount height: 2.09 inches
- Hydraulic inlet thread: 1/8-27 NPT
Fitment & Compatibility
This caliper requires the measured 1.25-inch rotor-width configuration and the matching radial bracket on 7.09-inch centers. Use the right-hand caliper and keep the bleed arrangement in the specified orientation. Confirm the 1/8-27 NPT hydraulic inlet, pad outline and total piston area with the rest of the brake system before assembly.
