Product details

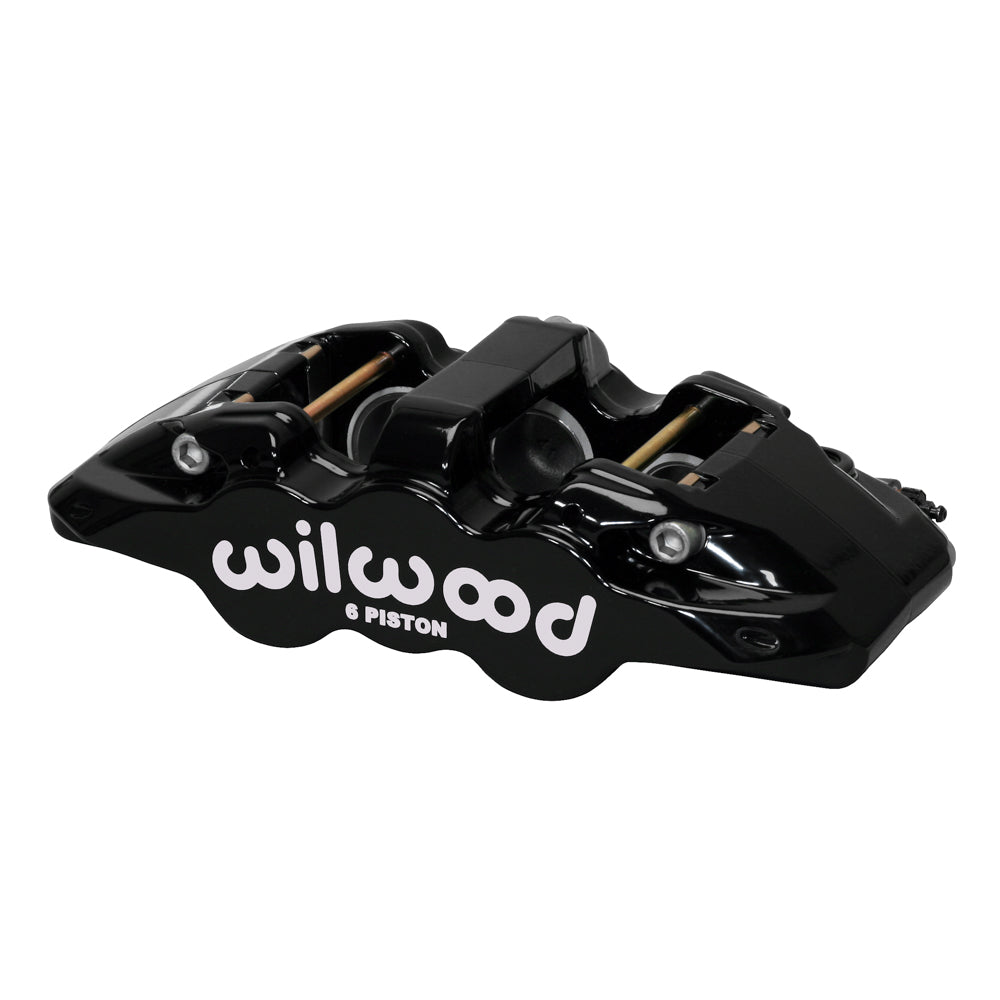

This black Wilwood Aero6 left brake caliper uses a 7.09-inch radial mount and the 0.81-inch rotor-width configuration. It is sold as one caliper, with its piston and mounting specification selected for the complete brake assembly. Aero6 is a forged six-piston hydraulic caliper with internal fluid passages. Differential piston bores, radial bracket spacing and rotor dimensions determine the assembly. Select the pad compound separately for the operating temperature and use of the complete brake system. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc brake design and manufacturing work includes master cylinders, valves, fittings and brake lines as well as rotors and calipers. The company serves motorsport, street-performance and specialized applications in which the entire brake system determines component choice.
Technical Details
- Manufacturer part number: 120-16891-BK
- Component: Aero6 Radial Mount; one individual caliper
- Placement: Left
- Construction and finish: Forged aluminum; Black Powder Coat
- Nominal rotor width: 0.81 inches
- Rotor width range: 0.75–0.84 inches
- Rotor diameter range: 12.19–15.00 inches
- Caliper weight reference: 6.8 lb
- Mounting interface: Radial; mounting centers 7.09 inches
- Mounting-hole diameter: 0.45 inches
- Mount height: 2.09 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
- Hydraulic piston area: 6.52 square inches
- Dust boots: No
- Brake pad shape: 6620; shape number does not specify a friction compound
Fitment & Compatibility
Compare the caliper drawing with your radial bracket before ordering. The 7.09-inch mounting centers and 1.75/1.62/1.62-inch bores must suit the installed rotor offset and hydraulic system. Use the left-hand caliper and keep the bleed arrangement in the specified orientation. A suitable pad sweep and clearance inside the wheel must be verified independently of rotor width.
Wilwood caliper specifications
For a modified brake system, provide its existing component specifications along with the vehicle details. PMB Performance has over 20 years of parts and fitment experience to help check the assembly before purchase.
