Product details

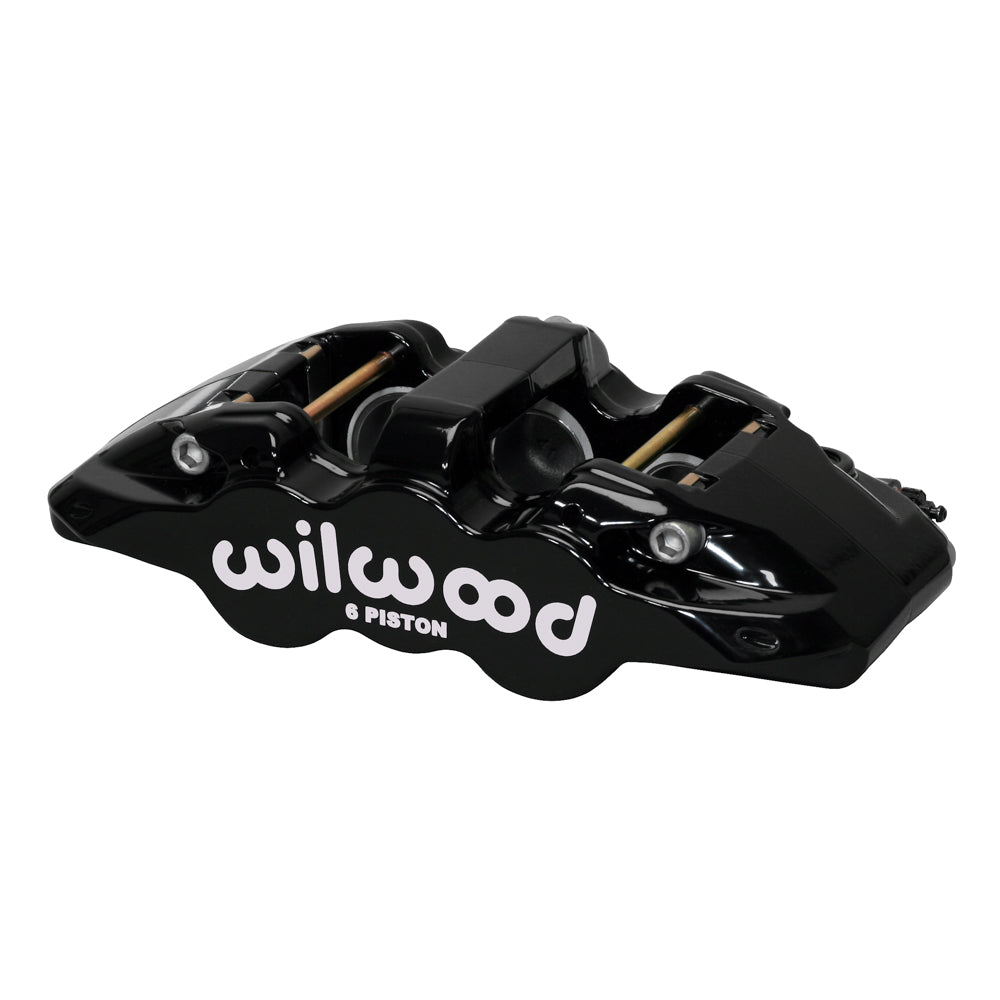

The rotor and bracket determine whether this black Wilwood Aero6 right brake caliper is the correct choice. Its 0.81-inch rotor-width configuration works with the radial mount and 6-piston layout detailed below. Aero6 is a forged six-piston hydraulic caliper with internal fluid passages. Differential piston bores, radial bracket spacing and rotor dimensions determine the assembly. Select the pad compound separately for the operating temperature and use of the complete brake system. Based in Camarillo, California, Wilwood Engineering has its origins in the company Bill Wood founded in 1977. Its designs and manufactured disc brake products cover calipers and rotors alongside master cylinders, valves, fittings and lines. Motorsport, street-performance and specialized installations each require components selected for the complete system.
Technical Details
- Manufacturer part number: 120-16890-BK
- Component: Aero6 Radial Mount; one individual caliper
- Placement: Right
- Construction and finish: Forged aluminum; Black Powder Coat
- Mounting interface: Radial; mounting centers 7.09 inches
- Mounting-hole diameter: 0.45 inches
- Mount height: 2.09 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Nominal rotor width: 0.81 inches
- Rotor width range: 0.75–0.84 inches
- Rotor diameter range: 12.19–15.00 inches
- Caliper weight reference: 6.8 lb
- Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
- Hydraulic piston area: 6.52 square inches
- Dust boots: No
- Brake pad shape: 6620; shape number does not specify a friction compound
Fitment & Compatibility
Compare the caliper drawing with your radial bracket before ordering. The 7.09-inch mounting centers and 1.75/1.62/1.62-inch bores must suit the installed rotor offset and hydraulic system. Use the right-hand caliper and keep the bleed arrangement in the specified orientation. A suitable pad sweep and clearance inside the wheel must be verified independently of rotor width.
