Product details

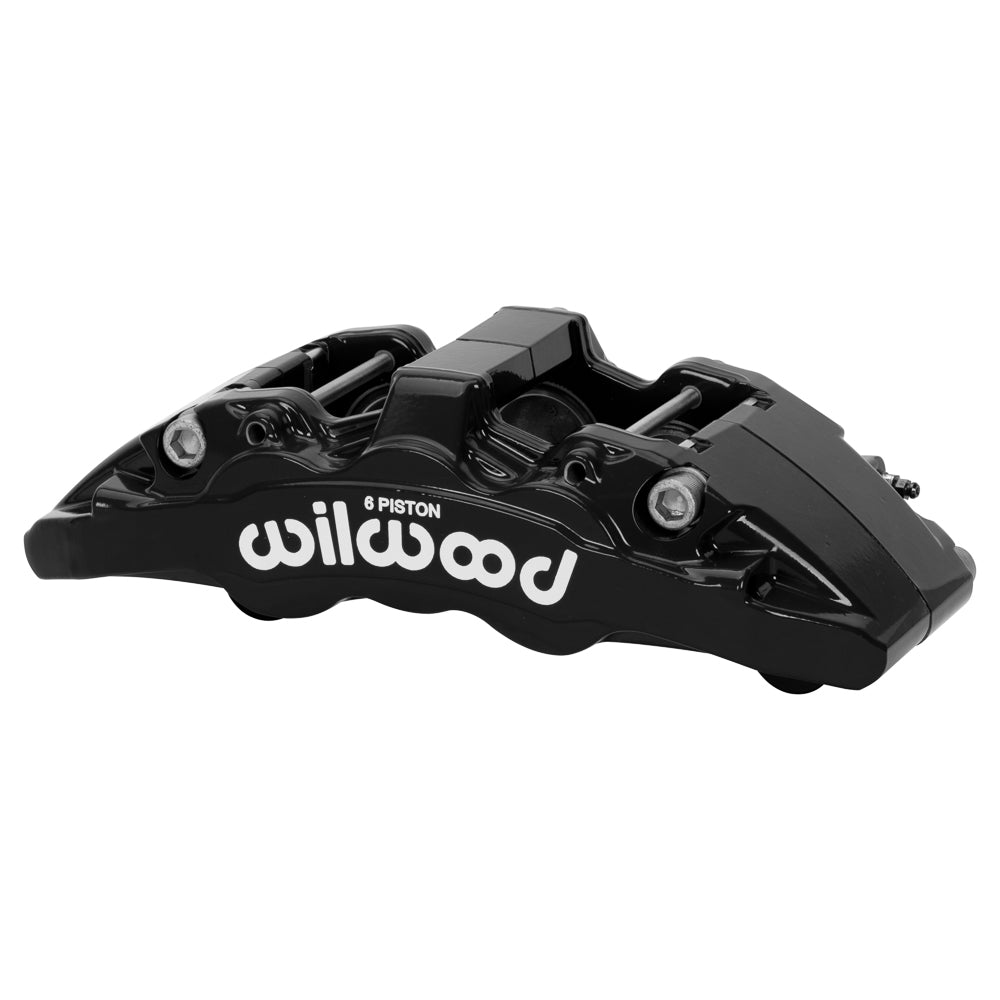

Wilwood AeroDM calipers must be matched by width and mounting configuration. This black front left brake caliper for Ford F-150 (2010–2025) and Raptor (2010–2014, 2017–2025) has 1.75/1.62/1.62-inch bore dimensions, a 7.09-inch mounting span and the 1.25-inch-wide rotor specification. AeroDM is a forged six-piston caliper using a vehicle-specific direct lug mount. It is intended for the matching Wilwood rotor and conversion geometry, rather than the stock rotor by itself. Verify the package, side and lug offset before ordering a replacement. Based in Camarillo, California, Wilwood Engineering has its origins in the company Bill Wood founded in 1977. Its designs and manufactured disc brake products cover calipers and rotors alongside master cylinders, valves, fittings and lines. Motorsport, street-performance and specialized installations each require components selected for the complete system.
Technical Details
- Manufacturer part number: 120-16830-BK
- Component: AeroDM Lug Mount; one individual caliper
- Placement: Front Left
- Construction and finish: Forged aluminum; Black Powder Coat
- Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
- Hydraulic piston area: 6.52 square inches
- Dust boots: No
- Brake pad shape: 6617; shape number does not specify a friction compound
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–13.38 inches
- Caliper weight reference: 8.9 lb
- Mounting interface: Lug; mounting centers 7.09 inches
- Mounting-hole diameter: 0.63 inches
- Hydraulic inlet thread: 1/8-27 NPT
Fitment & Compatibility
Replacement caliper for the matching Wilwood AeroDM front brake package on Ford F-150 (2010–2025) and Raptor (2010–2014 or 2017–2025). Match the exact kit and upright, the 13.38 × 1.25-inch Wilwood rotor and the 7.09-inch lug mount. It is not a stock-rotor caliper replacement.
Wilwood caliper specifications · Wilwood technical reference
A correct caliper choice begins with the complete brake arrangement. PMB Performance has over 20 years of parts and fitment experience; send the mounting geometry and rotor dimensions for help with your selection.
