Product details

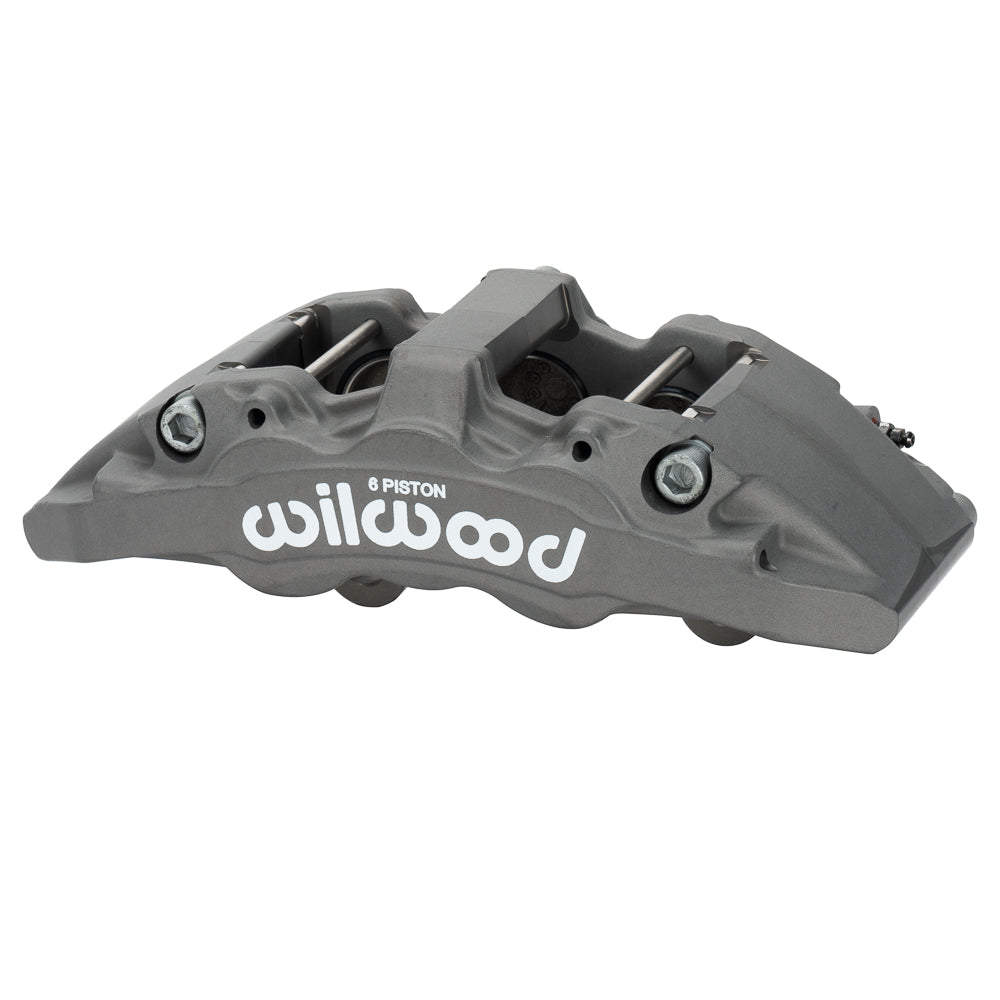

For a brake assembly requiring the 1.25-inch rotor-width version, this Wilwood AeroDM front left brake caliper for Ford F-150 (2010–2025) and Raptor (2010–2014, 2017–2025) provides the anodized configuration. Compare its lug mount and piston area with the component being replaced. AeroDM is a forged six-piston caliper using a vehicle-specific direct lug mount. It is intended for the matching Wilwood rotor and conversion geometry, rather than the stock rotor by itself. Verify the package, side and lug offset before ordering a replacement. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Components must be selected to suit the complete brake system.
Technical Details
- Manufacturer part number: 120-16830
- Component: AeroDM Lug Mount; one individual caliper
- Placement: Front Left
- Construction and finish: Forged aluminum; Type III Anodize
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–13.38 inches
- Caliper weight reference: 8.9 lb
- Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
- Hydraulic piston area: 6.52 square inches
- Dust boots: No
- Brake pad shape: 6617; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 7.09 inches
- Mounting-hole diameter: 0.63 inches
- Hydraulic inlet thread: 1/8-27 NPT
Fitment & Compatibility
Replacement caliper for the matching Wilwood AeroDM front brake package on Ford F-150 (2010–2025) and Raptor (2010–2014 or 2017–2025). Match the exact kit and upright, the 13.38 × 1.25-inch Wilwood rotor and the 7.09-inch lug mount. It is not a stock-rotor caliper replacement.
Wilwood caliper specifications · Wilwood technical reference
A correct caliper choice begins with the complete brake arrangement. PMB Performance has over 20 years of parts and fitment experience; send the mounting geometry and rotor dimensions for help with your selection.
