Product details

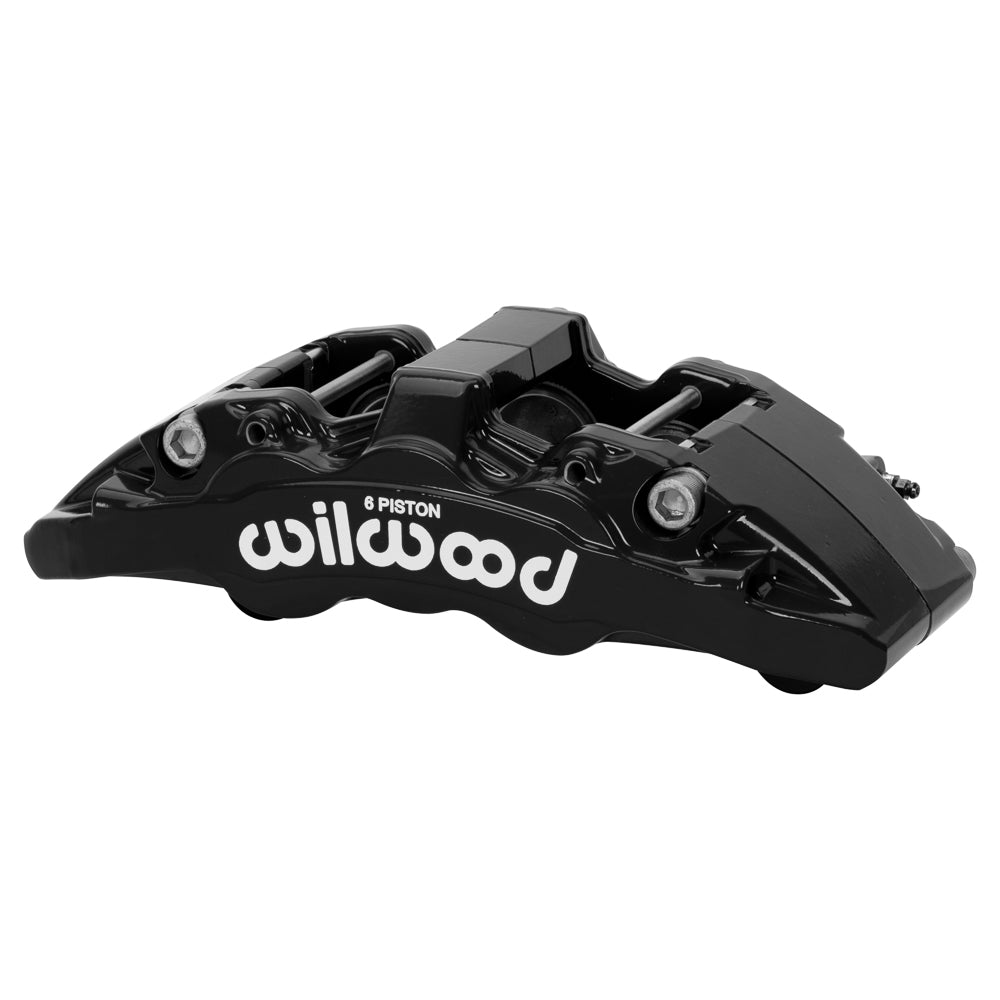

The 7.09-inch lug attachment distinguishes this front right Wilwood AeroDM brake caliper for Ford F-150 (2010–2025) and Raptor (2010–2014, 2017–2025). This individual black unit is built for the 1.25-inch-wide rotor configuration and requires accurate alignment with the mating rotor and bracket. AeroDM is a forged six-piston caliper using a vehicle-specific direct lug mount. It is intended for the matching Wilwood rotor and conversion geometry, rather than the stock rotor by itself. Verify the package, side and lug offset before ordering a replacement. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures calipers, rotors, master cylinders, valves, fittings and brake lines as part of its disc brake range. Its motorsport, street-performance and specialized products are chosen around the requirements of the whole braking system.
Technical Details
- Manufacturer part number: 120-16829-BK
- Component: AeroDM Lug Mount; one individual caliper
- Placement: Front Right
- Construction and finish: Forged aluminum; Black Powder Coat
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–13.38 inches
- Caliper weight reference: 8.9 lb
- Mounting interface: Lug; mounting centers 7.09 inches
- Mounting-hole diameter: 0.63 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
- Hydraulic piston area: 6.52 square inches
- Dust boots: No
- Brake pad shape: 6617; shape number does not specify a friction compound
Fitment & Compatibility
Replacement caliper for the matching Wilwood AeroDM front brake package on Ford F-150 (2010–2025) and Raptor (2010–2014 or 2017–2025). Match the exact kit and upright, the 13.38 × 1.25-inch Wilwood rotor and the 7.09-inch lug mount. It is not a stock-rotor caliper replacement.
Wilwood caliper specifications · Wilwood technical reference
Share the vehicle and the brake system actually installed with PMB Performance before ordering if the configuration is uncertain. We draw on over 20 years of parts and fitment experience when comparing the rotor, mount and caliper.
