Product details

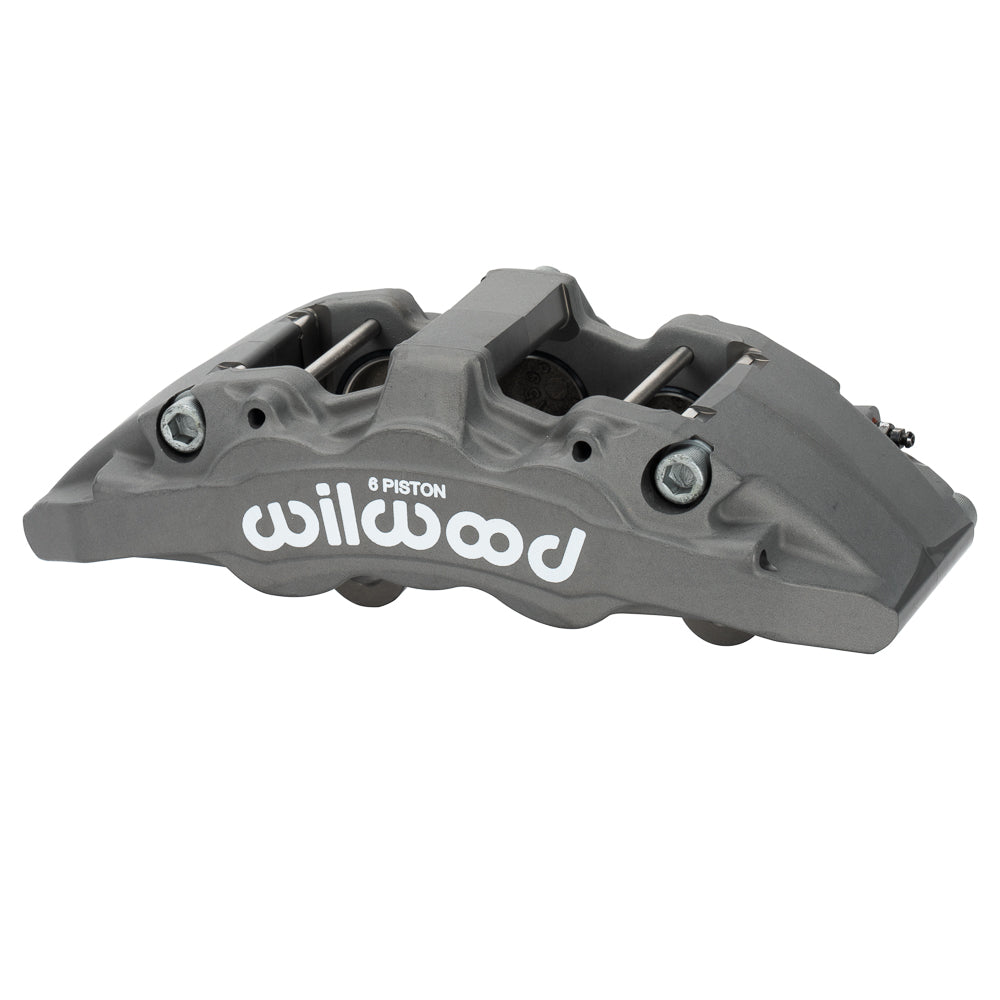

Wilwood supplies this front right AeroDM brake caliper for Ford F-150 (2010–2025) and Raptor (2010–2014, 2017–2025) with an anodized finish. Its 7.09-inch mounting span and 1.25-inch-wide rotor configuration are key checks when selecting a single caliper for an existing system. AeroDM is a forged six-piston caliper using a vehicle-specific direct lug mount. It is intended for the matching Wilwood rotor and conversion geometry, rather than the stock rotor by itself. Verify the package, side and lug offset before ordering a replacement. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc brake design and manufacturing work includes master cylinders, valves, fittings and brake lines as well as rotors and calipers. The company serves motorsport, street-performance and specialized applications in which the entire brake system determines component choice.
Technical Details
- Manufacturer part number: 120-16829
- Component: AeroDM Lug Mount; one individual caliper
- Placement: Front Right
- Construction and finish: Forged aluminum; Type III Anodize
- Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
- Hydraulic piston area: 6.52 square inches
- Dust boots: No
- Brake pad shape: 6617; shape number does not specify a friction compound
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–13.38 inches
- Caliper weight reference: 8.9 lb
- Mounting interface: Lug; mounting centers 7.09 inches
- Mounting-hole diameter: 0.63 inches
- Hydraulic inlet thread: 1/8-27 NPT
Fitment & Compatibility
Replacement caliper for the matching Wilwood AeroDM front brake package on Ford F-150 (2010–2025) and Raptor (2010–2014 or 2017–2025). Match the exact kit and upright, the 13.38 × 1.25-inch Wilwood rotor and the 7.09-inch lug mount. It is not a stock-rotor caliper replacement.
