Product details

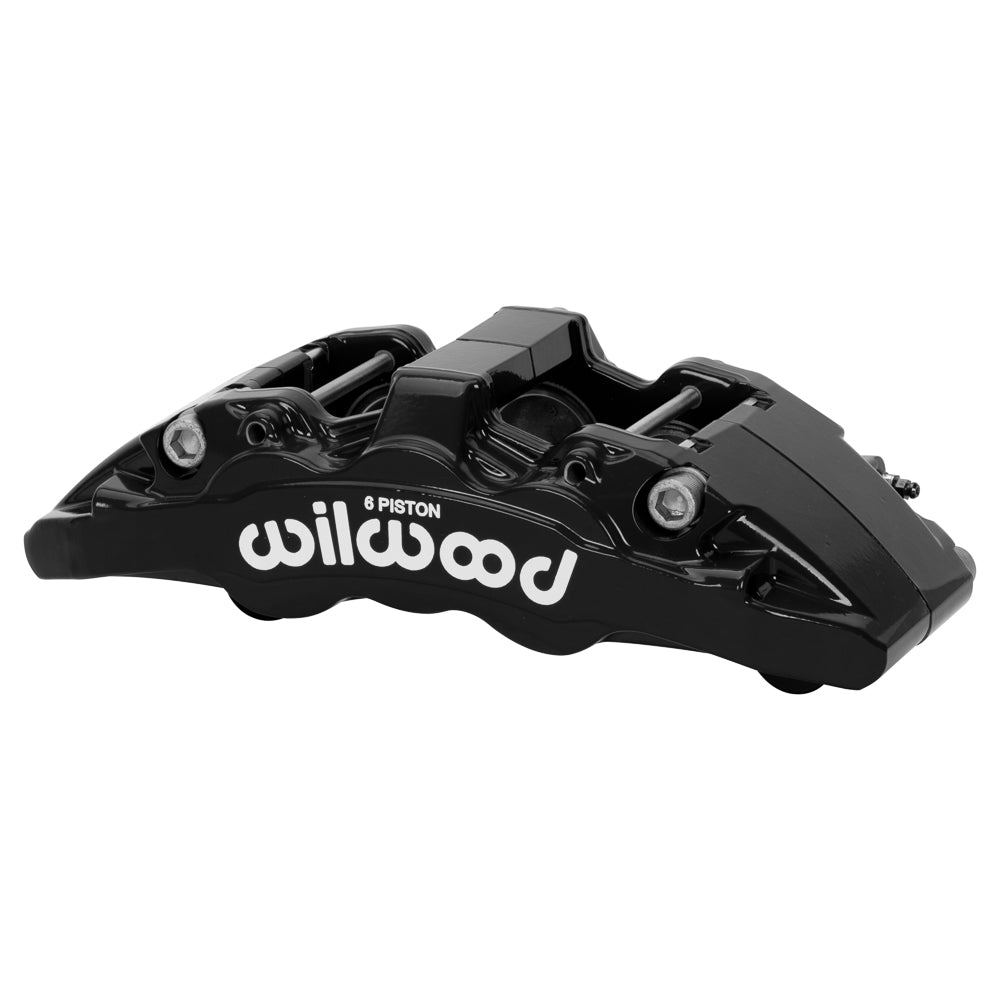

A 1.25-inch rotor-width specification and 1.75/1.62/1.62-inch piston bores identify this front right Wilwood AeroDM brake caliper for GM 1500 Trucks/SUVs. The black finish is applied to the exact component described below; match the mounting bracket before replacement. AeroDM is a forged six-piston caliper using a vehicle-specific direct lug mount. It is intended for the matching Wilwood rotor and conversion geometry, rather than the stock rotor by itself. Verify the package, side and lug offset before ordering a replacement. For motorsport, street-performance and specialized braking applications, Wilwood Engineering designs and manufactures disc brake systems and their individual components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood supplies a range encompassing calipers, rotors, master cylinders, valves, fittings and brake lines, all selected to match the complete system.
Technical Details
- Manufacturer part number: 120-16825-BK
- Component: AeroDM Lug Mount; one individual caliper
- Placement: Front Right
- Construction and finish: Forged aluminum; Black Powder Coat
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–13.38 inches
- Caliper weight reference: 8.7 lb
- Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
- Hydraulic piston area: 6.52 square inches
- Dust boots: No
- Brake pad shape: 6617; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 7.56 inches
- Mounting-hole diameter: 0.55 inches
- Hydraulic inlet thread: 1/8-27 NPT
Fitment & Compatibility
Replacement caliper for the matching Wilwood AeroDM front conversion on GM 1500 trucks and SUVs (2019–2021). Use the specified 13.38 × 1.25-inch Wilwood rotor and correct model-specific attachment geometry. The caliper is not a direct substitution over the stock rotor; confirm the installed kit and side.
