Product details

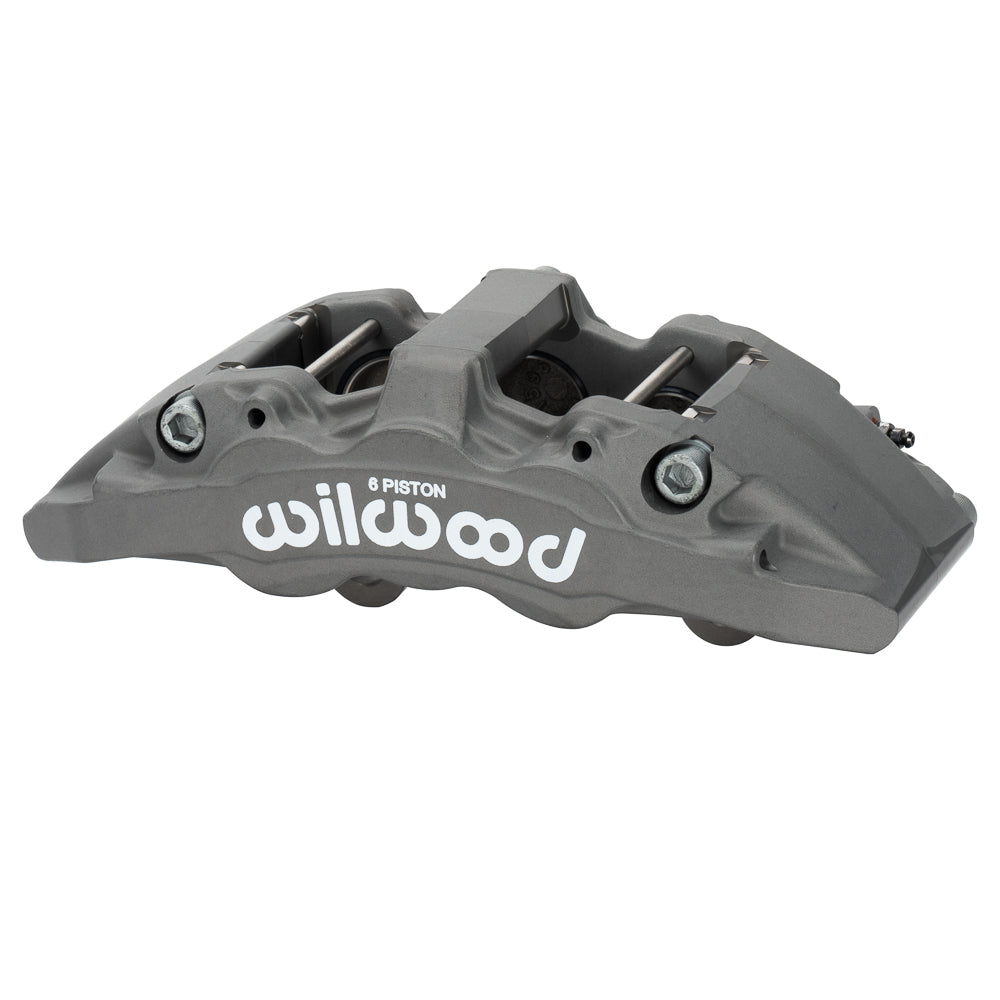

An individual Wilwood AeroDM front right brake caliper for GM 1500 Trucks/SUVs, finished in anodized, is specified here. Use the 1.75/1.62/1.62-inch piston bores, 7.56-inch mounting centers and 1.25-inch rotor width to compare it with the existing brake assembly. AeroDM is a forged six-piston caliper using a vehicle-specific direct lug mount. It is intended for the matching Wilwood rotor and conversion geometry, rather than the stock rotor by itself. Verify the package, side and lug offset before ordering a replacement. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures calipers, rotors, master cylinders, valves, fittings and brake lines as part of its disc brake range. Its motorsport, street-performance and specialized products are chosen around the requirements of the whole braking system.
Technical Details
- Manufacturer part number: 120-16825
- Component: AeroDM Lug Mount; one individual caliper
- Placement: Front Right
- Construction and finish: Forged aluminum; Type III Anodize
- Mounting interface: Lug; mounting centers 7.56 inches
- Mounting-hole diameter: 0.55 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–13.38 inches
- Caliper weight reference: 8.7 lb
- Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
- Hydraulic piston area: 6.52 square inches
- Dust boots: No
- Brake pad shape: 6617; shape number does not specify a friction compound
Fitment & Compatibility
Replacement caliper for the matching Wilwood AeroDM front conversion on GM 1500 trucks and SUVs (2019–2021). Use the specified 13.38 × 1.25-inch Wilwood rotor and correct model-specific attachment geometry. The caliper is not a direct substitution over the stock rotor; confirm the installed kit and side.
