Product details

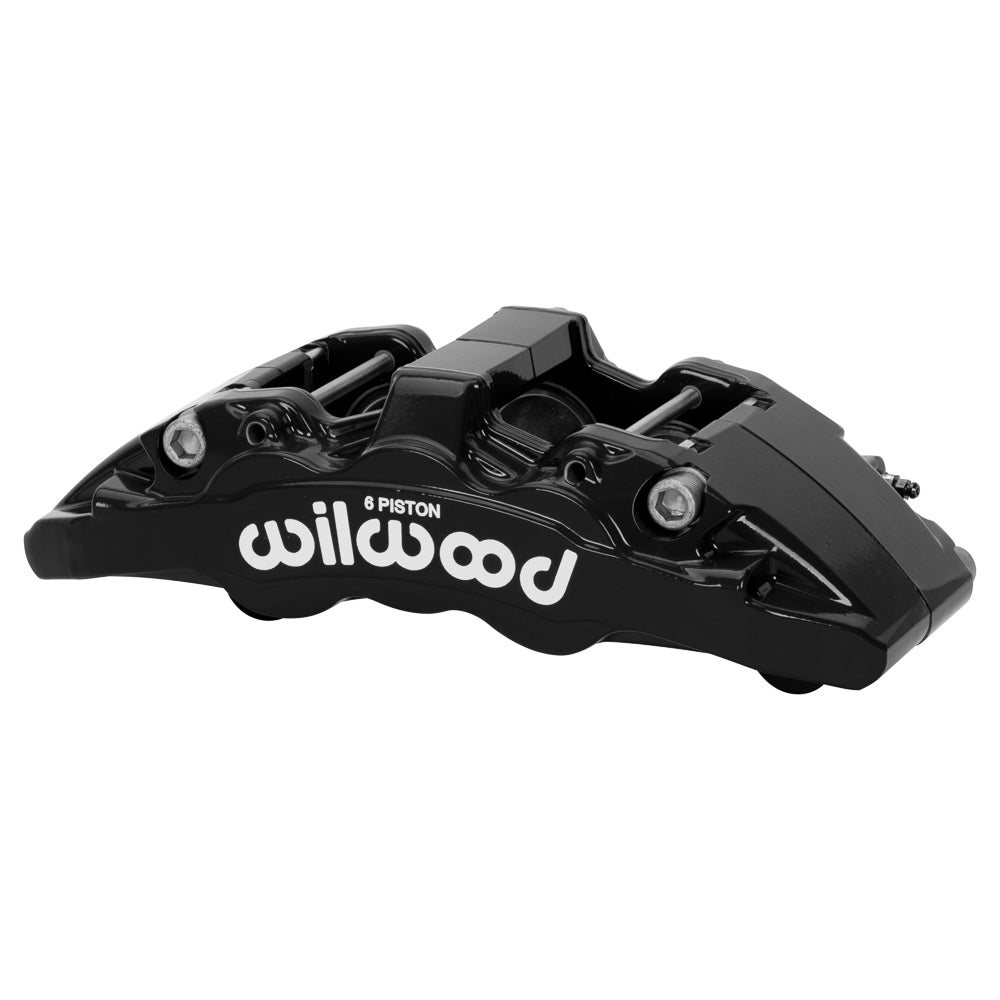

Wilwood AeroDM calipers must be matched by width and mounting configuration. This black front left brake caliper for GM 1500 Trucks/SUVs has 1.75/1.62/1.62-inch bore dimensions, a 7.56-inch mounting span and the 1.25-inch-wide rotor specification. AeroDM is a forged six-piston caliper using a vehicle-specific direct lug mount. It is intended for the matching Wilwood rotor and conversion geometry, rather than the stock rotor by itself. Verify the package, side and lug offset before ordering a replacement. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc braking equipment for motorsport, street-performance and specialized use. Calipers, rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must be matched to one another.
Technical Details
- Manufacturer part number: 120-16824-BK
- Component: AeroDM Lug Mount; one individual caliper
- Placement: Front Left
- Construction and finish: Forged aluminum; Black Powder Coat
- Mounting interface: Lug; mounting centers 7.56 inches
- Mounting-hole diameter: 0.55 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
- Hydraulic piston area: 6.52 square inches
- Dust boots: No
- Brake pad shape: 6617; shape number does not specify a friction compound
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–13.38 inches
- Caliper weight reference: 8.7 lb
Fitment & Compatibility
Replacement caliper for the matching Wilwood AeroDM front conversions on 1999–2006 and 2007–2018 GM 1500 trucks/SUVs. Use the specified 13.38 × 1.25-inch Wilwood rotor and correct model-specific attachment geometry. The caliper is not a direct substitution over the stock rotor; confirm the installed kit and side.
