Product details

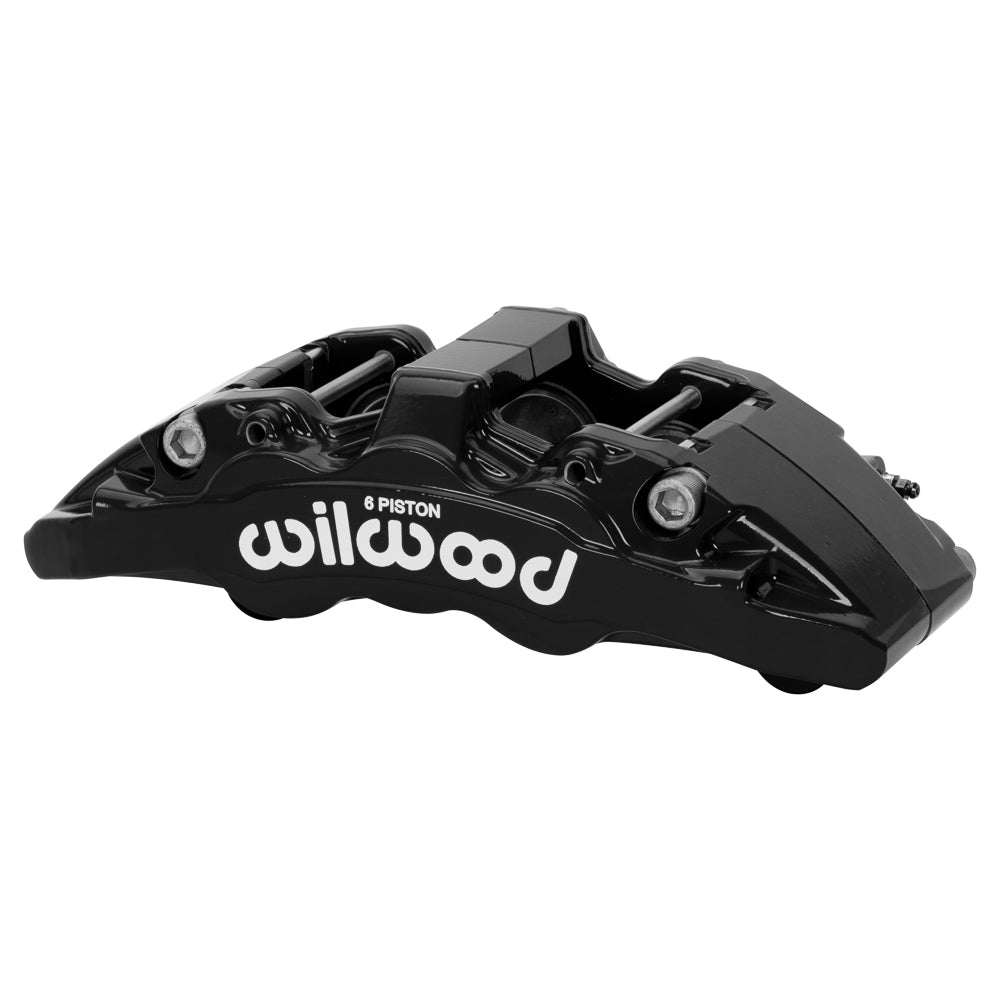

The 7.56-inch lug attachment distinguishes this front right Wilwood AeroDM brake caliper for GM 1500 Trucks/SUVs. This individual black unit is built for the 1.25-inch-wide rotor configuration and requires accurate alignment with the mating rotor and bracket. AeroDM is a forged six-piston caliper using a vehicle-specific direct lug mount. It is intended for the matching Wilwood rotor and conversion geometry, rather than the stock rotor by itself. Verify the package, side and lug offset before ordering a replacement. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Components must be selected to suit the complete brake system.
Technical Details
- Manufacturer part number: 120-16823-BK
- Component: AeroDM Lug Mount; one individual caliper
- Placement: Front Right
- Construction and finish: Forged aluminum; Black Powder Coat
- Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
- Hydraulic piston area: 6.52 square inches
- Dust boots: No
- Brake pad shape: 6617; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 7.56 inches
- Mounting-hole diameter: 0.55 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.19–13.38 inches
- Caliper weight reference: 8.7 lb
Fitment & Compatibility
Replacement caliper for the matching Wilwood AeroDM front conversions on 1999–2006 and 2007–2018 GM 1500 trucks/SUVs. Use the specified 13.38 × 1.25-inch Wilwood rotor and correct model-specific attachment geometry. The caliper is not a direct substitution over the stock rotor; confirm the installed kit and side.
Wilwood caliper specifications · Wilwood technical reference
With over 20 years of experience in parts and fitment, PMB Performance can help you compare the actual brake assembly. Include rotor width, mounting centers and the existing caliper details when requesting assistance.
