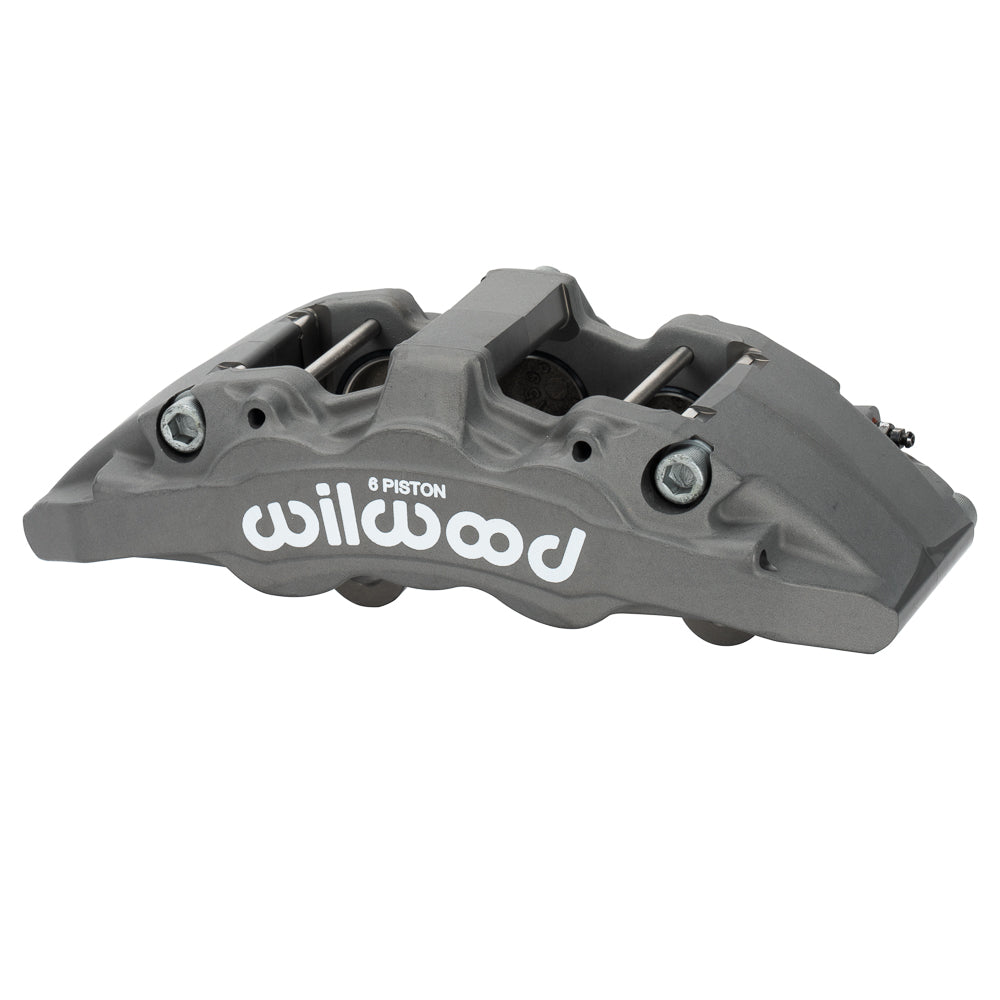

Wilwood Front Right AeroDM Brake Caliper, Anodized, 1.25-Inch Rotor Width for GM 1500 Trucks/SUVs (1999–2018)

Wilwood supplies this front right AeroDM brake caliper for GM 1500 Trucks/SUVs with an anodized finish. Its 7.56-inch mounting span and 1.25-inch-wide rotor configuration are key checks when selecting a single caliper for an existing system. AeroDM is a forged six-piston caliper using a vehicle-specific direct lug mount. It is intended for the matching Wilwood rotor and conversion geometry, rather than the stock rotor by itself. Verify the package, side and lug offset before ordering a replacement. For motorsport, street-performance and specialized braking applications, Wilwood Engineering designs and manufactures disc brake systems and their individual components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood supplies a range encompassing calipers, rotors, master cylinders, valves, fittings and brake lines, all selected to match the complete system.

Technical Details

• Manufacturer part number: 120-16823
• Component: AeroDM Lug Mount; one individual caliper
• Placement: Front Right
• Construction and finish: Forged aluminum; Type III Anodize
• Mounting interface: Lug; mounting centers 7.56 inches
• Mounting-hole diameter: 0.55 inches
• Hydraulic inlet thread: 1/8-27 NPT
• Pistons: 6; stainless steel; bore dimensions 1.75/1.62/1.62 inches
• Hydraulic piston area: 6.52 square inches
• Dust boots: No
• Brake pad shape: 6617; shape number does not specify a friction compound
• Nominal rotor width: 1.25 inches
• Rotor width range: 1.10–1.28 inches
• Rotor diameter range: 12.19–13.38 inches
• Caliper weight reference: 8.7 lb

Fitment & Compatibility

Replacement caliper for the matching Wilwood AeroDM front conversions on 1999–2006 and 2007–2018 GM 1500 trucks/SUVs. Use the specified 13.38 × 1.25-inch Wilwood rotor and correct model-specific attachment geometry. The caliper is not a direct substitution over the stock rotor; confirm the installed kit and side.

Wilwood caliper specifications · Wilwood technical reference

For help selecting the correct caliper, contact PMB Performance with the brake package and measured mounting arrangement. Our over 20 years of parts and fitment experience supports a configuration check before purchase.
