Product details

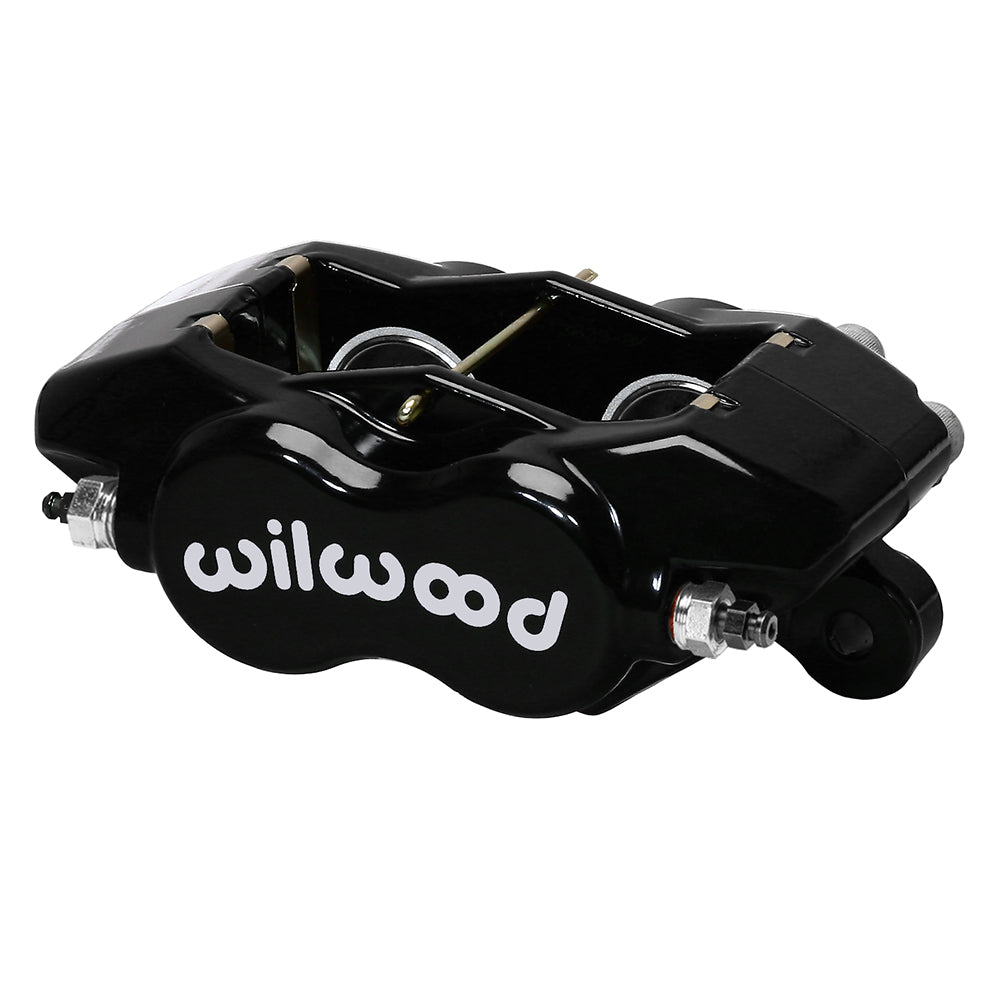

The black Wilwood Dynalite Internal is an individual brake caliper. It combines a 5.25-inch attachment span with 1.75/1.75-inch piston bores; confirm the rotor centerline and 0.50-inch width configuration before installation. This forged Dynalite Internal caliper uses four stainless pistons and internal fluid passages. It has the 7112 pad outline and a 5.25-inch lug mount. Compare the installed rotor width and piston bores before replacing a similar-looking Dynalite. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc brake design and manufacturing work includes master cylinders, valves, fittings and brake lines as well as rotors and calipers. The company serves motorsport, street-performance and specialized applications in which the entire brake system determines component choice.
Technical Details
- Manufacturer part number: 120-16744-BK
- Component: Forged Dynalite Internal; one individual caliper
- Placement: Universal mounting orientation; verify axle position
- Construction and finish: Forged aluminum; Black Powder Coat
- Mounting interface: Lug; mounting centers 5.25 inches
- Mounting-hole diameter: 0.39 inches
- Mount height: 2.03 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Nominal rotor width: 0.50 inches
- Rotor width range: 0.44–0.52 inches
- Rotor diameter range: 10.00–13.06 inches
- Caliper weight reference: 3.6 lb
- Pistons: 4; stainless steel; bore dimensions 1.75/1.75 inches
- Hydraulic piston area: 4.80 square inches
- Dust boots: No
- Brake pad shape: 7112; shape number does not specify a friction compound
Fitment & Compatibility
Compare the caliper drawing with your lug bracket before ordering. The 5.25-inch mounting centers and 1.75/1.75-inch bores must suit the installed rotor offset and hydraulic system. Axle placement is determined by the engineered brake package, not by a generic caliper designation. A suitable pad sweep and clearance inside the wheel must be verified independently of rotor width.
Wilwood caliper specifications
For help selecting the correct caliper, contact PMB Performance with the brake package and measured mounting arrangement. Our over 20 years of parts and fitment experience supports a configuration check before purchase.
