Product details

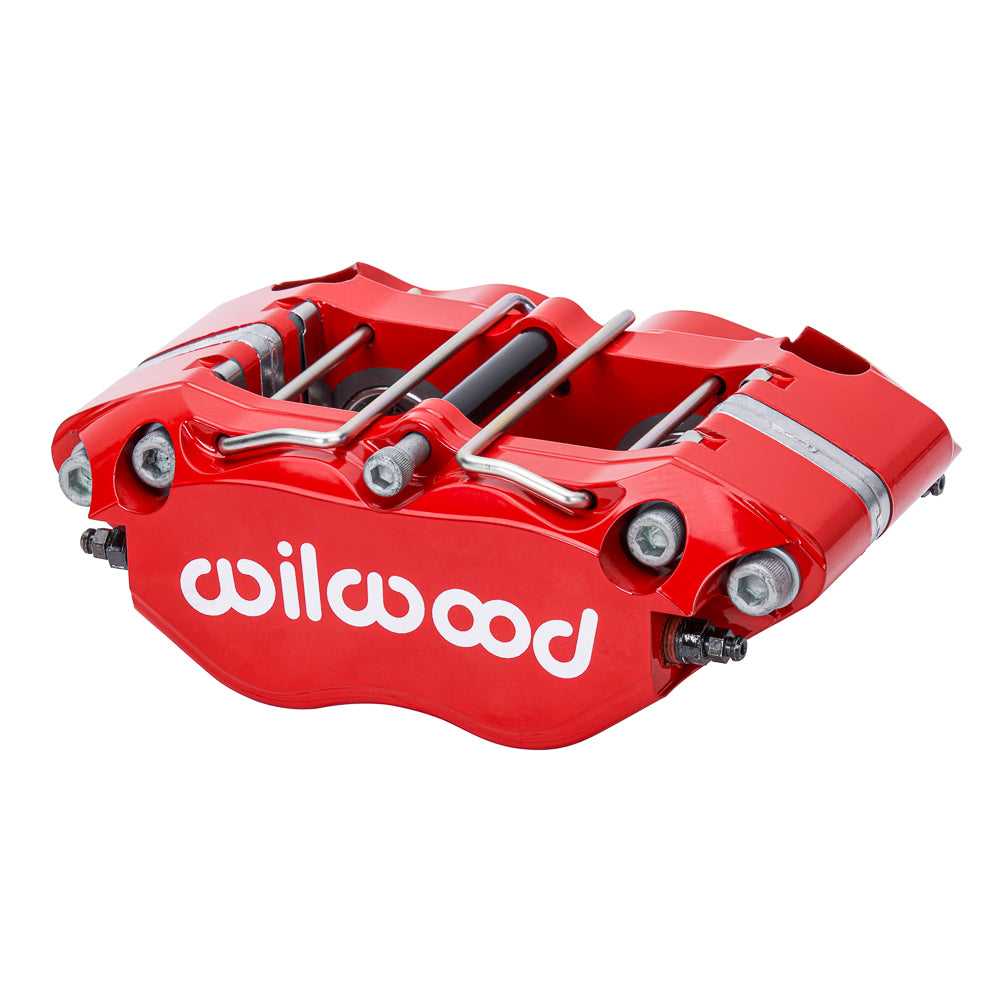

A 0.95-inch rotor-width specification and 1.12/1.12-inch piston bores identify this Wilwood Narrow DynaPro-P brake caliper. The red finish is applied to the exact component described below; match the mounting bracket before replacement. Based in Camarillo, California, Wilwood Engineering has its origins in the company Bill Wood founded in 1977. Its designs and manufactured disc brake products cover calipers and rotors alongside master cylinders, valves, fittings and lines. Motorsport, street-performance and specialized installations each require components selected for the complete system. Narrow DynaPro-P uses four 1.12-inch stainless pistons and the 4812 pad outline. The compact radial mount is suited to a measured bracket arrangement. Check rotor diameter and pad sweep against the installation drawing.
Technical Details
- Manufacturer part number: 120-16687-RD
- Component: Narrow Dynapro-P Radial Mount; one individual caliper
- Placement: Universal mounting orientation; verify axle position
- Construction and finish: Billet aluminum; Red Powder Coat
- Mounting interface: Radial; mounting centers 4.75 inches
- Mounting-hole diameter: 0.39 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Pistons: 4; stainless steel; bore dimensions 1.12/1.12 inches
- Hydraulic piston area: 1.98 square inches
- Dust boots: No
- Brake pad shape: 4812; shape number does not specify a friction compound
- Nominal rotor width: 0.95 inches
- Rotor width range: 0.89–0.99 inches
- Caliper weight reference: 3.9 lb
Fitment & Compatibility
Verify the radial mounting interface and the complete rotor-width range shown above. Axle placement is determined by the engineered brake package, not by a generic caliper designation. Account for the 1.12/1.12-inch bores when selecting the master cylinder and front-to-rear balance. Check that the 1/8-27 NPT fitting, flexline and wheel remain clear throughout their operating movement.
Wilwood caliper specifications
A correct caliper choice begins with the complete brake arrangement. PMB Performance has over 20 years of parts and fitment experience; send the mounting geometry and rotor dimensions for help with your selection.
