Product details

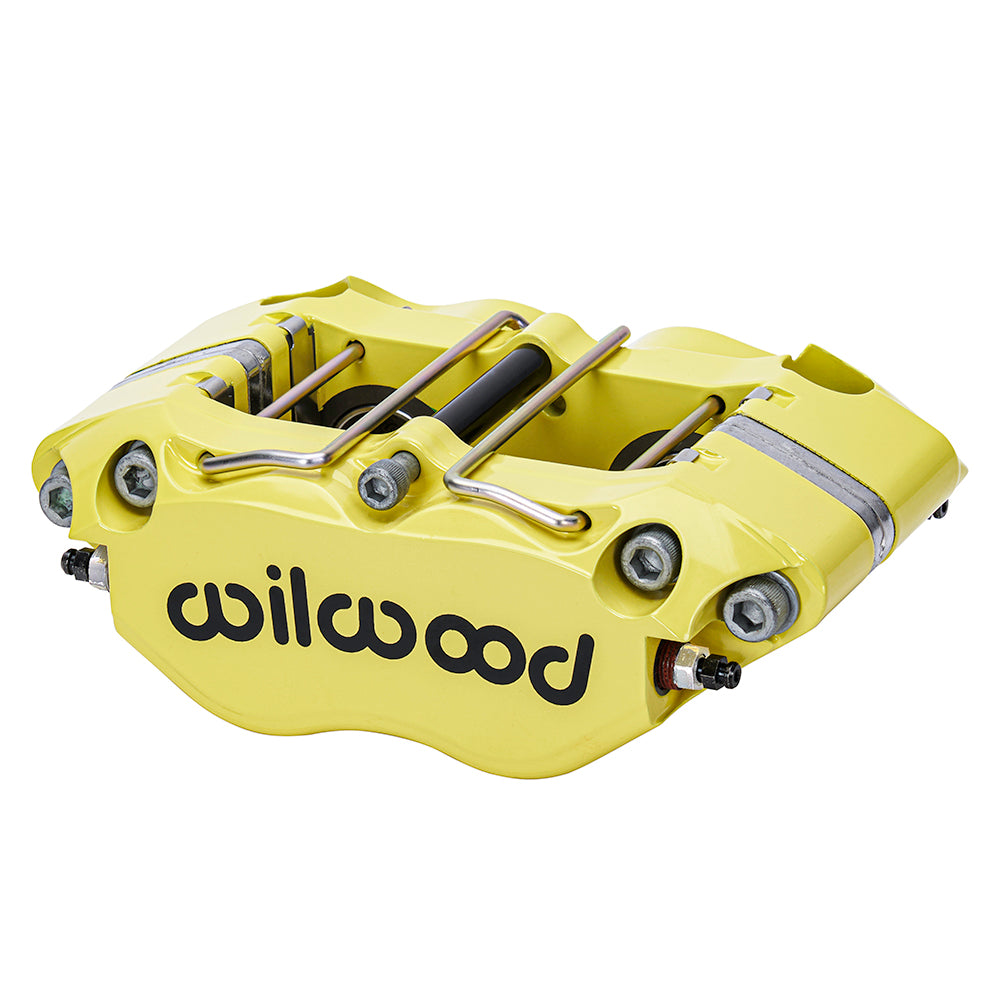

Wilwood Narrow DynaPro-P calipers must be matched by width and mounting configuration. This yellow brake caliper has 1.12/1.12-inch bore dimensions, a 4.75-inch mounting span and the 0.81-inch-wide rotor specification. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Components must be selected to suit the complete brake system. Narrow DynaPro-P uses four 1.12-inch stainless pistons and the 4812 pad outline. The compact radial mount is suited to a measured bracket arrangement. Check rotor diameter and pad sweep against the installation drawing.
Technical Details
- Manufacturer part number: 120-16686-Y
- Component: Narrow Dynapro-P Radial Mount; one individual caliper
- Placement: Universal mounting orientation; verify axle position
- Construction and finish: Billet aluminum; Yellow Powder Coat
- Pistons: 4; stainless steel; bore dimensions 1.12/1.12 inches
- Hydraulic piston area: 1.98 square inches
- Dust boots: No
- Brake pad shape: 4812; shape number does not specify a friction compound
- Mounting interface: Radial; mounting centers 4.75 inches
- Mounting-hole diameter: 0.39 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Nominal rotor width: 0.81 inches
- Rotor width range: 0.75–0.86 inches
- Caliper weight reference: 3.8 lb
Fitment & Compatibility
Verify the radial mounting interface and the complete rotor-width range shown above. Axle placement is determined by the engineered brake package, not by a generic caliper designation. Account for the 1.12/1.12-inch bores when selecting the master cylinder and front-to-rear balance. Check that the 1/8-27 NPT fitting, flexline and wheel remain clear throughout their operating movement.
Wilwood caliper specifications
A correct caliper choice begins with the complete brake arrangement. PMB Performance has over 20 years of parts and fitment experience; send the mounting geometry and rotor dimensions for help with your selection.
