Product details

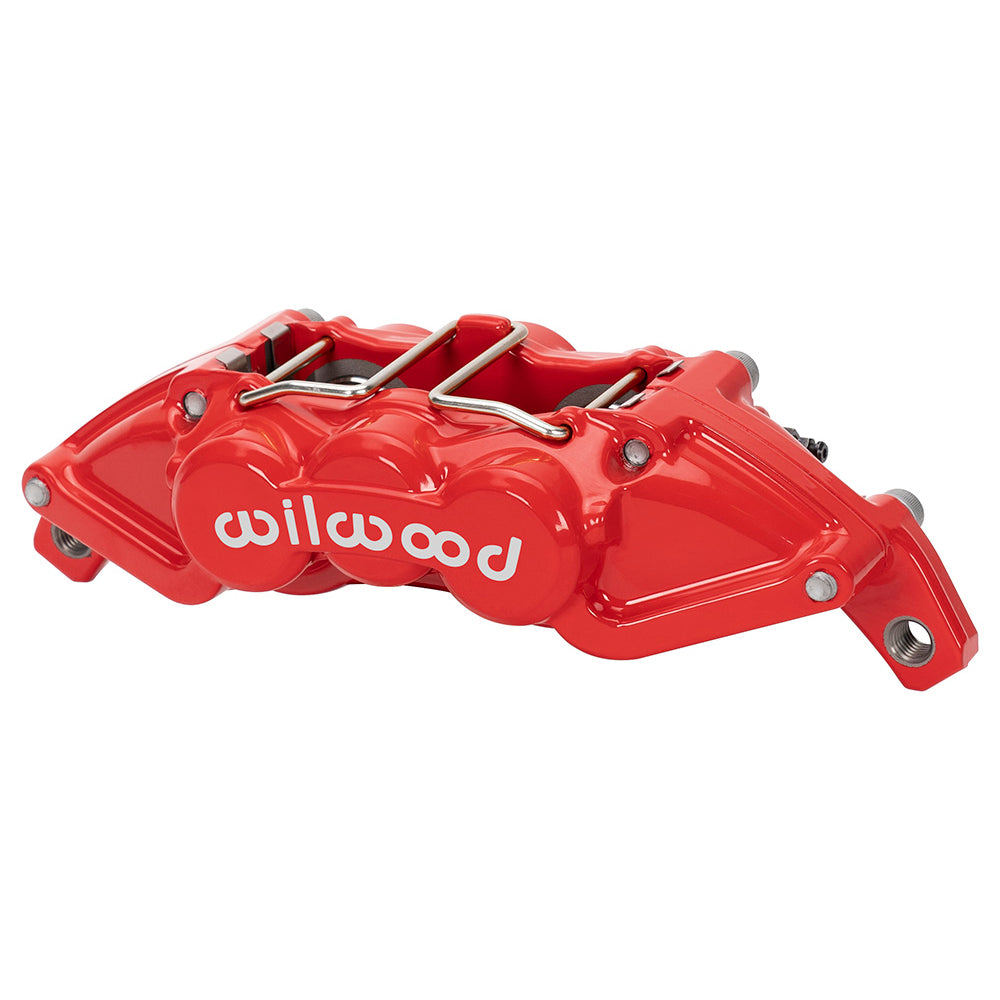

With 4 pistons and 1.00/1.00-inch bore dimensions, the red Wilwood UTV4 rear brake caliper for Honda Talon must be matched to the brake system rather than selected by finish alone. Its 0.25-inch rotor-width specification is separate from rotor diameter. For motorsport, street-performance and specialized braking applications, Wilwood Engineering designs and manufactures disc brake systems and their individual components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood supplies a range encompassing calipers, rotors, master cylinders, valves, fittings and brake lines, all selected to match the complete system. UTV4 is a forged four-piston hydraulic caliper used with the matching Wilwood rear UTV conversion. The replacement caliper requires the kit-specific bracket and rotor assembly; it is not a direct replacement for an unmodified factory brake.
Technical Details
- Manufacturer part number: 120-16572-RD
- Component: UTV4 Caliper; one individual caliper
- Placement: Rear Universal mounting orientation; verify axle position
- Construction and finish: Forged aluminum; Red Powder Coat
- Pistons: 4; stainless steel; bore dimensions 1.00/1.00 inches
- Hydraulic piston area: 1.58 square inches
- Dust boots: No
- Brake pad shape: 7812; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 8.75 inches
- Hydraulic inlet thread: M10 x 1.25
- Nominal rotor width: 0.25 inches
- Rotor width range: 0.19–0.25 inches
- Maximum rotor diameter: 11.25 inches
- Caliper weight reference: 3.2 lb
Fitment & Compatibility
One replacement rear caliper for the matching Wilwood UTV4 conversion on Honda Talon (2019–2021). Use the specified kit bracket and dynamic-mount 11.25 × 0.25-inch-wide rotor. The original Honda brake mounting arrangement does not establish compatibility with this caliper by itself.
