Product details

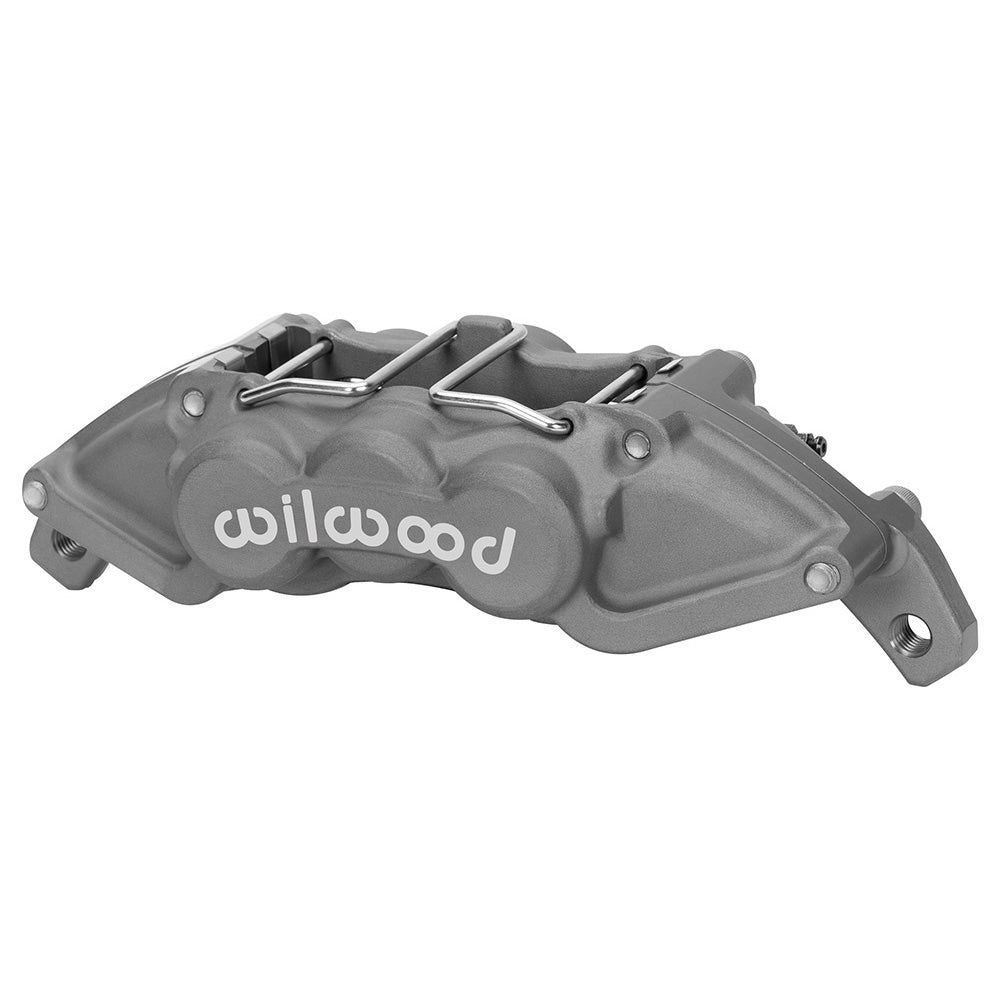

An individual Wilwood UTV4 rear brake caliper for Honda Talon, finished in anodized, is specified here. Use the 1.00/1.00-inch piston bores, 8.75-inch mounting centers and 0.25-inch rotor width to compare it with the existing brake assembly. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc brake design and manufacturing work includes master cylinders, valves, fittings and brake lines as well as rotors and calipers. The company serves motorsport, street-performance and specialized applications in which the entire brake system determines component choice. UTV4 is a forged four-piston hydraulic caliper used with the matching Wilwood rear UTV conversion. The replacement caliper requires the kit-specific bracket and rotor assembly; it is not a direct replacement for an unmodified factory brake.
Technical Details
- Manufacturer part number: 120-16572
- Component: UTV4 Caliper; one individual caliper
- Placement: Rear Universal mounting orientation; verify axle position
- Construction and finish: Forged aluminum; Type III Anodize
- Pistons: 4; stainless steel; bore dimensions 1.00/1.00 inches
- Hydraulic piston area: 1.58 square inches
- Dust boots: No
- Brake pad shape: 7812; shape number does not specify a friction compound
- Nominal rotor width: 0.25 inches
- Rotor width range: 0.19–0.25 inches
- Maximum rotor diameter: 11.25 inches
- Caliper weight reference: 3.2 lb
- Mounting interface: Lug; mounting centers 8.75 inches
- Hydraulic inlet thread: M10 x 1.25
Fitment & Compatibility
One replacement rear caliper for the matching Wilwood UTV4 conversion on Honda Talon (2019–2021). Use the specified kit bracket and dynamic-mount 11.25 × 0.25-inch-wide rotor. The original Honda brake mounting arrangement does not establish compatibility with this caliper by itself.
