Product details

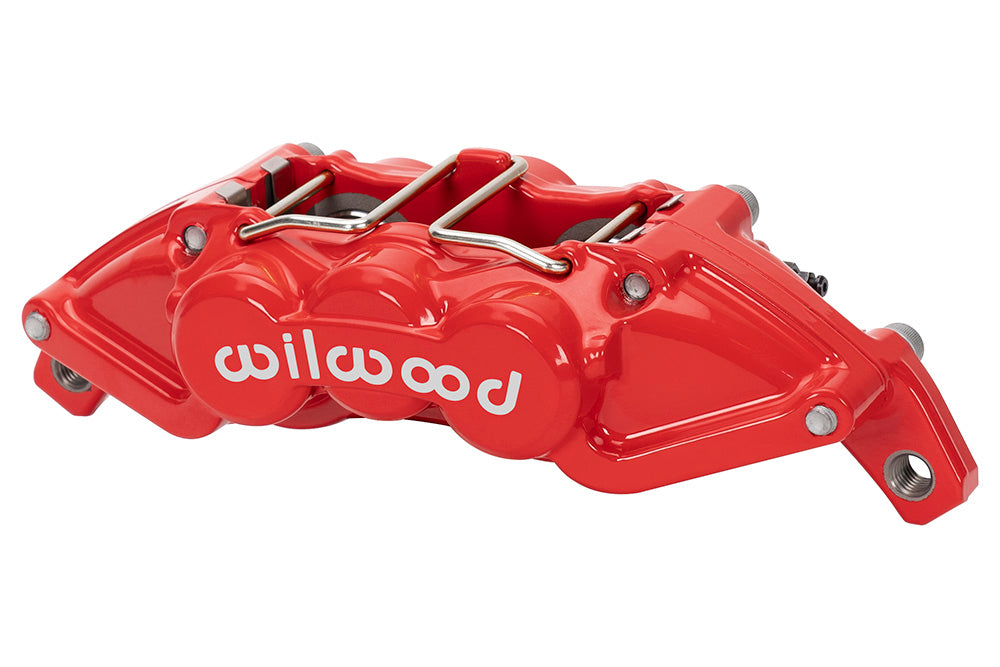

Select this red rear Wilwood UTV4 brake caliper for Can-Am Maverick X3 by the actual lug mounting geometry, not just its appearance. The 4-piston unit uses 1.12/1.12-inch bore dimensions and is configured around a 0.25-inch-wide rotor. Based in Camarillo, California, Wilwood Engineering has its origins in the company Bill Wood founded in 1977. Its designs and manufactured disc brake products cover calipers and rotors alongside master cylinders, valves, fittings and lines. Motorsport, street-performance and specialized installations each require components selected for the complete system. UTV4 is a forged four-piston hydraulic caliper used with the matching Wilwood rear UTV conversion. The replacement caliper requires the kit-specific bracket and rotor assembly; it is not a direct replacement for an unmodified factory brake.
Technical Details
- Manufacturer part number: 120-16571-RD
- Component: UTV4 Caliper; one individual caliper
- Placement: Rear Universal mounting orientation; verify axle position
- Construction and finish: Forged aluminum; Red Powder Coat
- Nominal rotor width: 0.25 inches
- Rotor width range: 0.19–0.25 inches
- Maximum rotor diameter: 11.25 inches
- Caliper weight reference: 3.2 lb
- Pistons: 4; stainless steel; bore dimensions 1.12/1.12 inches
- Hydraulic piston area: 1.98 square inches
- Dust boots: No
- Brake pad shape: 7812; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 8.75 inches
- Hydraulic inlet thread: M10 x 1.25
Fitment & Compatibility
Individual replacement for the Wilwood rear UTV4 conversion on Can-Am Maverick X3 (2017–2023). Uses the kit-specific bracket and 11.25 × 0.25-inch dynamic-mount rotor assembly. Confirm that the Wilwood conversion is fitted; this is not a direct replacement for the unmodified Can-Am rear brake.
Wilwood caliper specifications · Wilwood technical reference
With over 20 years of experience in parts and fitment, PMB Performance can help you compare the actual brake assembly. Include rotor width, mounting centers and the existing caliper details when requesting assistance.
