Product details

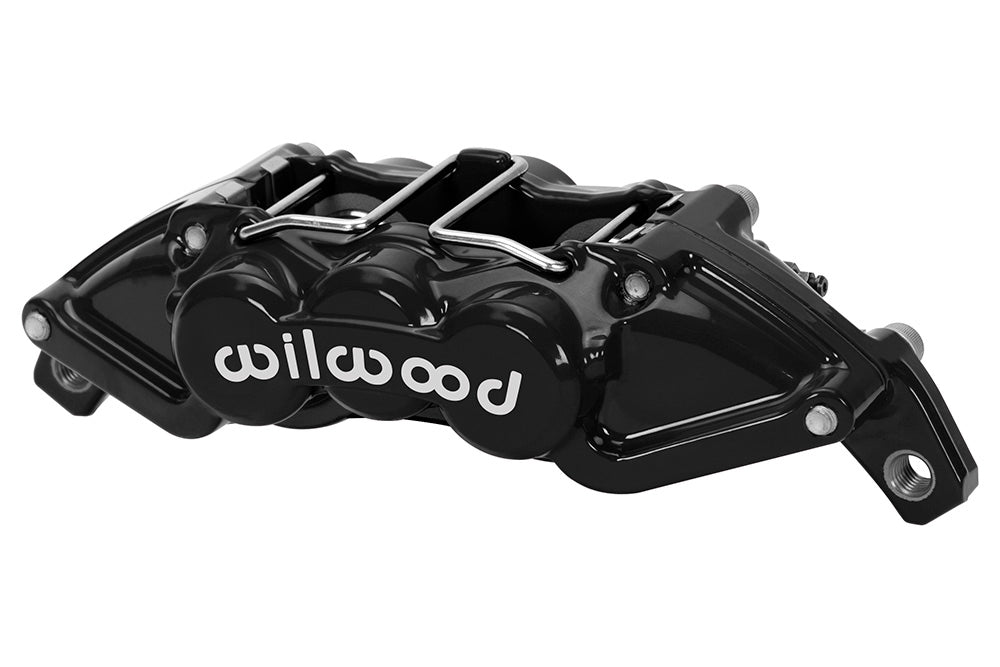

Wilwood UTV4 calipers must be matched by width and mounting configuration. This black rear brake caliper for Can-Am Maverick X3 has 1.12/1.12-inch bore dimensions, an 8.75-inch mounting span and the 0.25-inch-wide rotor specification. The Wilwood disc brake range is designed and manufactured for motorsport, street-performance and specialized applications. It includes brake lines, fittings, valves and master cylinders together with calipers and brake rotors. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California; its components must be matched to the complete braking system. UTV4 is a forged four-piston hydraulic caliper used with the matching Wilwood rear UTV conversion. The replacement caliper requires the kit-specific bracket and rotor assembly; it is not a direct replacement for an unmodified factory brake.
Technical Details
- Manufacturer part number: 120-16571-BK
- Component: UTV4 Caliper; one individual caliper
- Placement: Rear Universal mounting orientation; verify axle position
- Construction and finish: Forged aluminum; Black Powder Coat
- Pistons: 4; stainless steel; bore dimensions 1.12/1.12 inches
- Hydraulic piston area: 1.98 square inches
- Dust boots: No
- Brake pad shape: 7812; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 8.75 inches
- Hydraulic inlet thread: M10 x 1.25
- Nominal rotor width: 0.25 inches
- Rotor width range: 0.19–0.25 inches
- Maximum rotor diameter: 11.25 inches
- Caliper weight reference: 3.2 lb
Fitment & Compatibility
Individual replacement for the Wilwood rear UTV4 conversion on Can-Am Maverick X3 (2017–2023). Uses the kit-specific bracket and 11.25 × 0.25-inch dynamic-mount rotor assembly. Confirm that the Wilwood conversion is fitted; this is not a direct replacement for the unmodified Can-Am rear brake.
Wilwood caliper specifications · Wilwood technical reference
With over 20 years of experience in parts and fitment, PMB Performance can help you compare the actual brake assembly. Include rotor width, mounting centers and the existing caliper details when requesting assistance.
