Product details

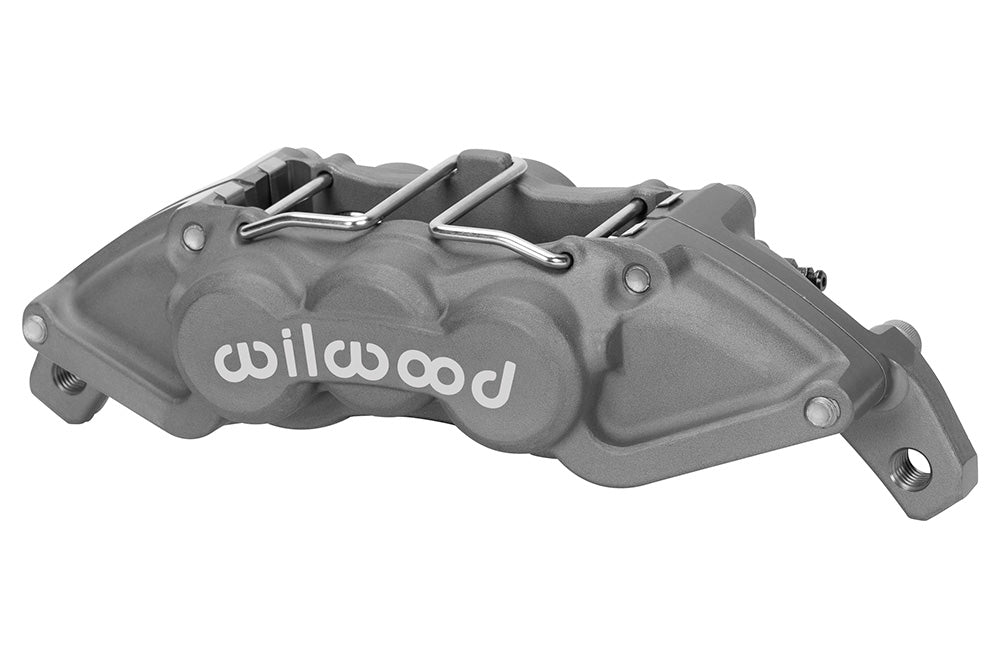

For a brake assembly requiring the 0.25-inch rotor-width version, this Wilwood UTV4 rear brake caliper for Can-Am Maverick X3 provides the anodized configuration. Compare its lug mount and piston area with the component being replaced. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among the disc brake components designed and manufactured by Wilwood Engineering. Bill Wood founded the company in 1977; it is based in Camarillo, California. The range serves motorsport, street-performance and specialized systems, with component selection determined by the full brake arrangement. UTV4 is a forged four-piston hydraulic caliper used with the matching Wilwood rear UTV conversion. The replacement caliper requires the kit-specific bracket and rotor assembly; it is not a direct replacement for an unmodified factory brake.
Technical Details
- Manufacturer part number: 120-16571
- Component: UTV4 Caliper; one individual caliper
- Placement: Rear Universal mounting orientation; verify axle position
- Construction and finish: Forged aluminum; Type III Anodize
- Nominal rotor width: 0.25 inches
- Rotor width range: 0.19–0.25 inches
- Maximum rotor diameter: 11.25 inches
- Caliper weight reference: 3.2 lb
- Mounting interface: Lug; mounting centers 8.75 inches
- Hydraulic inlet thread: M10 x 1.25
- Pistons: 4; stainless steel; bore dimensions 1.12/1.12 inches
- Hydraulic piston area: 1.98 square inches
- Dust boots: No
- Brake pad shape: 7812; shape number does not specify a friction compound
Fitment & Compatibility
Individual replacement for the Wilwood rear UTV4 conversion on Can-Am Maverick X3 (2017–2023). Uses the kit-specific bracket and 11.25 × 0.25-inch dynamic-mount rotor assembly. Confirm that the Wilwood conversion is fitted; this is not a direct replacement for the unmodified Can-Am rear brake.
