Product details

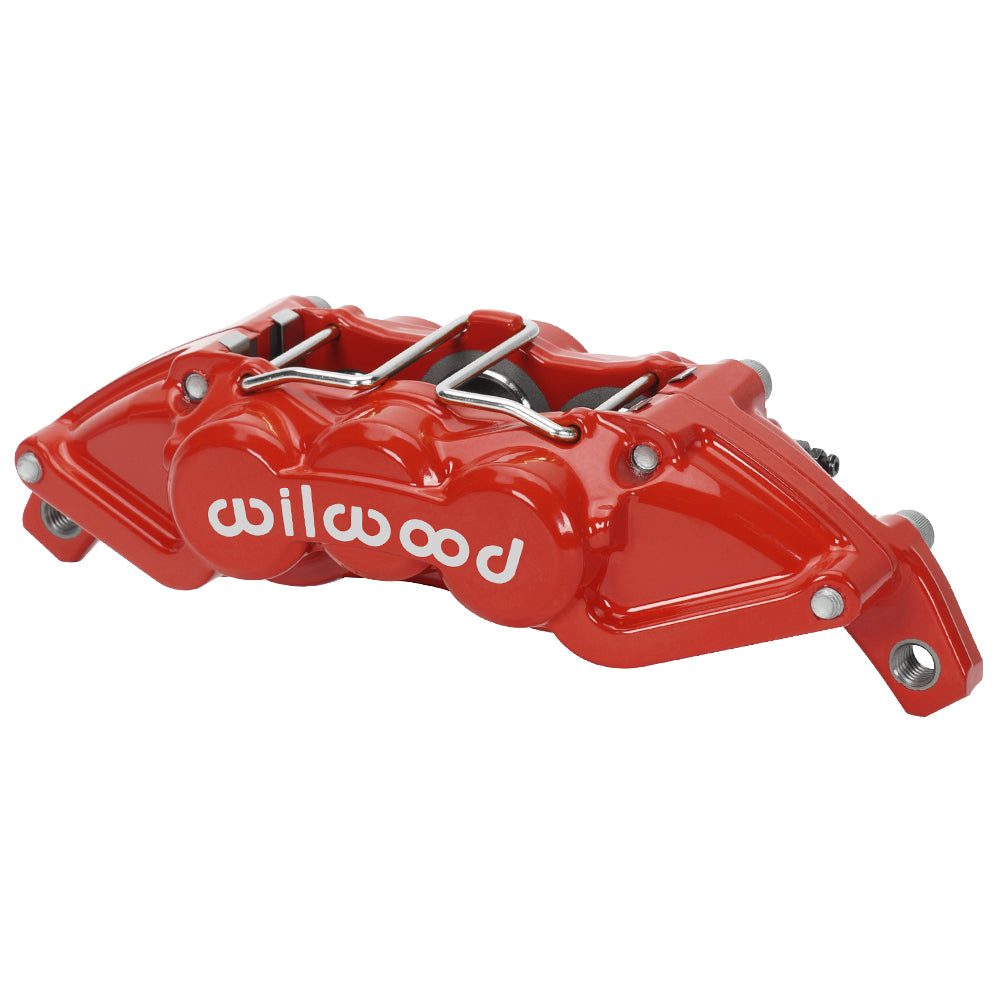

The rotor and bracket determine whether this red Wilwood UTV6 front right brake caliper for Polaris RZR XP1000 is the correct choice. Its 0.25-inch rotor-width configuration works with the lug mount and 6-piston layout detailed below. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc brake design and manufacturing work includes master cylinders, valves, fittings and brake lines as well as rotors and calipers. The company serves motorsport, street-performance and specialized applications in which the entire brake system determines component choice. UTV6 is a forged six-piston hydraulic caliper used in Wilwood UTV conversion packages. The original UTV caliper is not a substitute for the required Wilwood rotor, adapter and mounting arrangement. Match the vehicle-specific package and handed casting before ordering one replacement caliper.
Technical Details
- Manufacturer part number: 120-16568-RD
- Component: UTV6 Caliper; one individual caliper
- Placement: Front Right
- Construction and finish: Forged aluminum; Red Powder Coat
- Nominal rotor width: 0.25 inches
- Rotor width range: 0.19–0.25 inches
- Maximum rotor diameter: 11.25 inches
- Caliper weight reference: 3.3 lb
- Mounting interface: Lug; mounting centers 8.75 inches
- Hydraulic inlet thread: M10 x 1.25
- Pistons: 6; stainless steel; bore dimensions 1.25/1.12/1.12 inches
- Hydraulic piston area: 3.21 square inches
- Dust boots: No
- Brake pad shape: 7812; shape number does not specify a friction compound
Fitment & Compatibility
For the matching Wilwood front UTV6 conversion on Polaris RZR XP1000 (2014–2023), using the specified bracket, dynamic-mount 11.25 × 0.25-inch-wide rotor and adapter. Match the handed caliper and confirm the kit already installed; the caliper alone is not a complete front brake upgrade.
Wilwood caliper specifications · Wilwood technical reference
PMB Performance has over 20 years of experience with parts and brake fitment. Send the installed rotor dimensions, bracket measurements and hydraulic details so we can help compare the component before you order.
