Product details

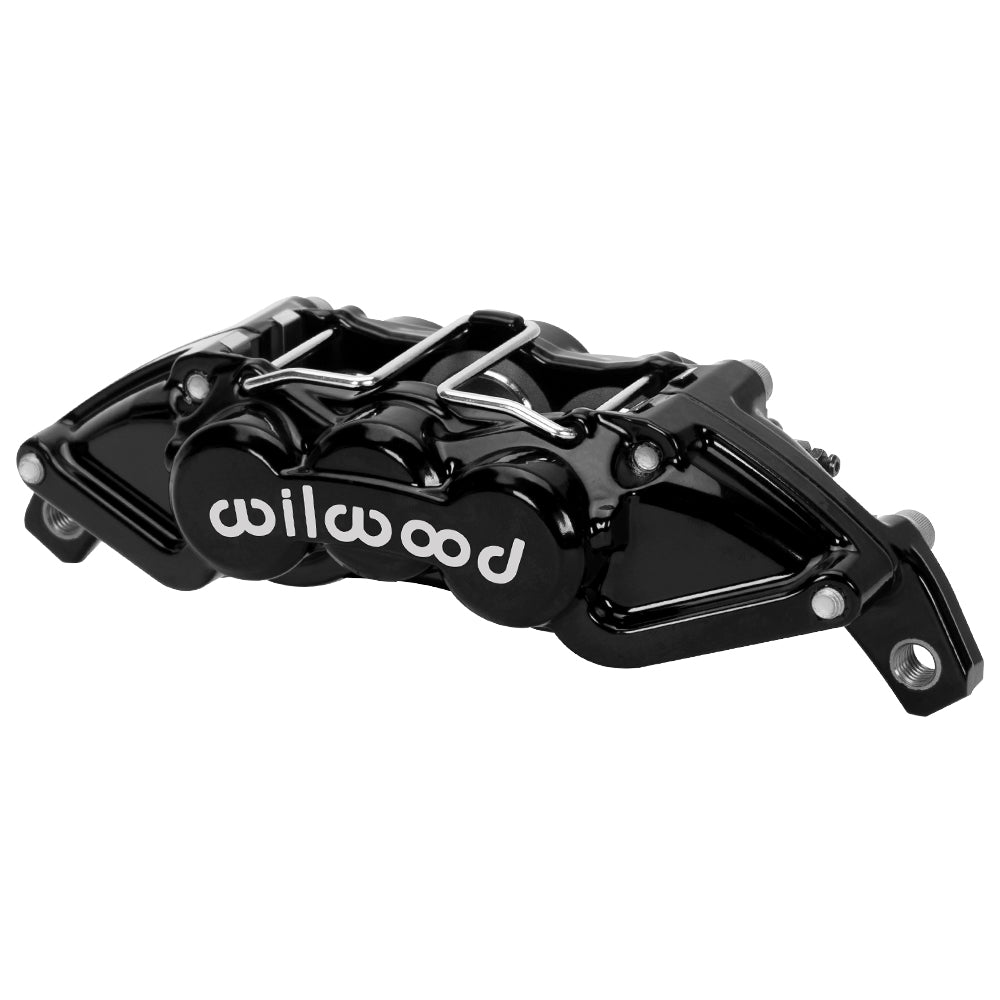

The black front right Wilwood UTV6 for Polaris RZR XP1000 is an individual brake caliper. It combines an 8.75-inch attachment span with 1.25/1.12/1.12-inch piston bores; confirm the rotor centerline and 0.25-inch width configuration before installation. Based in Camarillo, California, Wilwood Engineering has its origins in the company Bill Wood founded in 1977. Its designs and manufactured disc brake products cover calipers and rotors alongside master cylinders, valves, fittings and lines. Motorsport, street-performance and specialized installations each require components selected for the complete system. UTV6 is a forged six-piston hydraulic caliper used in Wilwood UTV conversion packages. The original UTV caliper is not a substitute for the required Wilwood rotor, adapter and mounting arrangement. Match the vehicle-specific package and handed casting before ordering one replacement caliper.
Technical Details
- Manufacturer part number: 120-16568-BK
- Component: UTV6 Caliper; one individual caliper
- Placement: Front Right
- Construction and finish: Forged aluminum; Black Powder Coat
- Mounting interface: Lug; mounting centers 8.75 inches
- Hydraulic inlet thread: M10 x 1.25
- Pistons: 6; stainless steel; bore dimensions 1.25/1.12/1.12 inches
- Hydraulic piston area: 3.21 square inches
- Dust boots: No
- Brake pad shape: 7812; shape number does not specify a friction compound
- Nominal rotor width: 0.25 inches
- Rotor width range: 0.19–0.25 inches
- Maximum rotor diameter: 11.25 inches
- Caliper weight reference: 3.3 lb
Fitment & Compatibility
For the matching Wilwood front UTV6 conversion on Polaris RZR XP1000 (2014–2023), using the specified bracket, dynamic-mount 11.25 × 0.25-inch-wide rotor and adapter. Match the handed caliper and confirm the kit already installed; the caliper alone is not a complete front brake upgrade.
