Product details

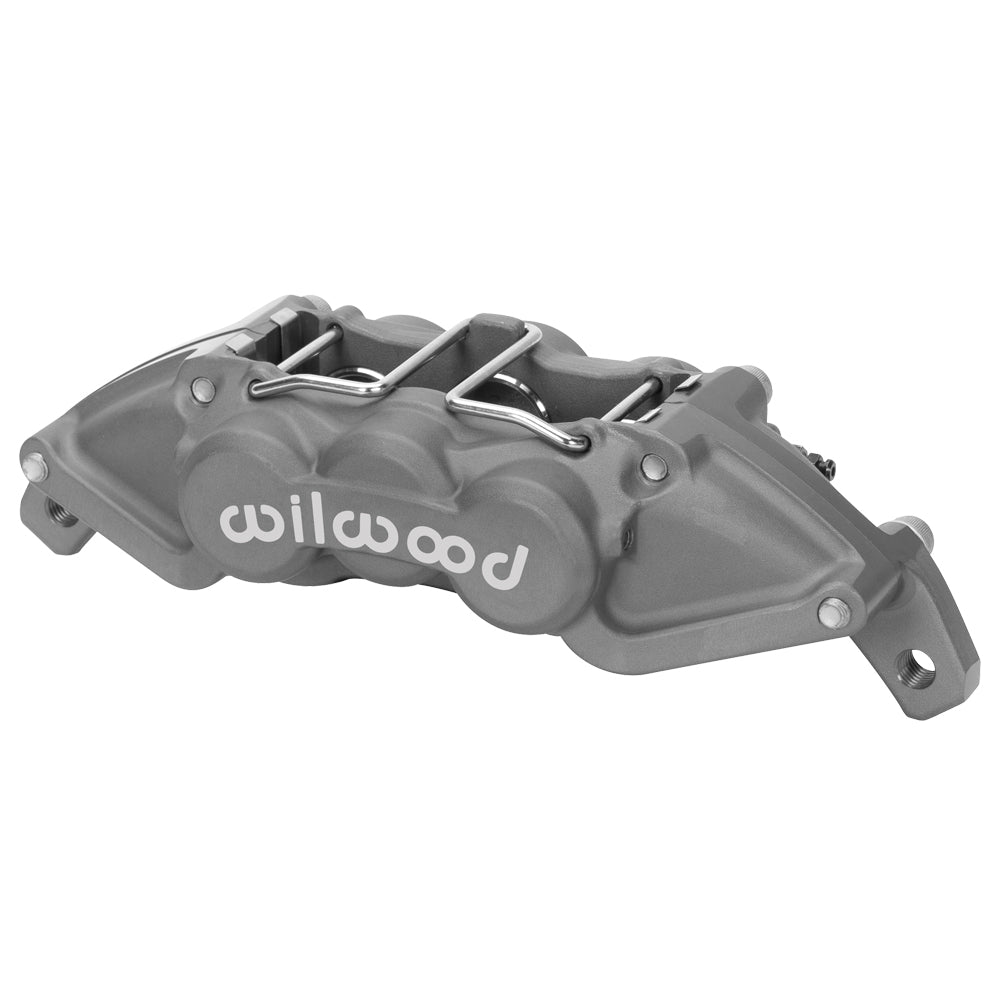

Check the 8.75-inch mounting centers before fitting this anodized Wilwood UTV6 front right brake caliper for Polaris RZR XP1000. The component is sold individually and uses 1.25/1.12/1.12-inch bores in its 0.25-inch rotor-width configuration. The Wilwood disc brake range is designed and manufactured for motorsport, street-performance and specialized applications. It includes brake lines, fittings, valves and master cylinders together with calipers and brake rotors. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California; its components must be matched to the complete braking system. UTV6 is a forged six-piston hydraulic caliper used in Wilwood UTV conversion packages. The original UTV caliper is not a substitute for the required Wilwood rotor, adapter and mounting arrangement. Match the vehicle-specific package and handed casting before ordering one replacement caliper.
Technical Details
- Manufacturer part number: 120-16568
- Component: UTV6 Caliper; one individual caliper
- Placement: Front Right
- Construction and finish: Forged aluminum; Type III Anodize
- Nominal rotor width: 0.25 inches
- Rotor width range: 0.19–0.25 inches
- Maximum rotor diameter: 11.25 inches
- Caliper weight reference: 3.3 lb
- Pistons: 6; stainless steel; bore dimensions 1.25/1.12/1.12 inches
- Hydraulic piston area: 3.21 square inches
- Dust boots: No
- Brake pad shape: 7812; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 8.75 inches
- Hydraulic inlet thread: M10 x 1.25
Fitment & Compatibility
For the matching Wilwood front UTV6 conversion on Polaris RZR XP1000 (2014–2023), using the specified bracket, dynamic-mount 11.25 × 0.25-inch-wide rotor and adapter. Match the handed caliper and confirm the kit already installed; the caliper alone is not a complete front brake upgrade.
