Product details

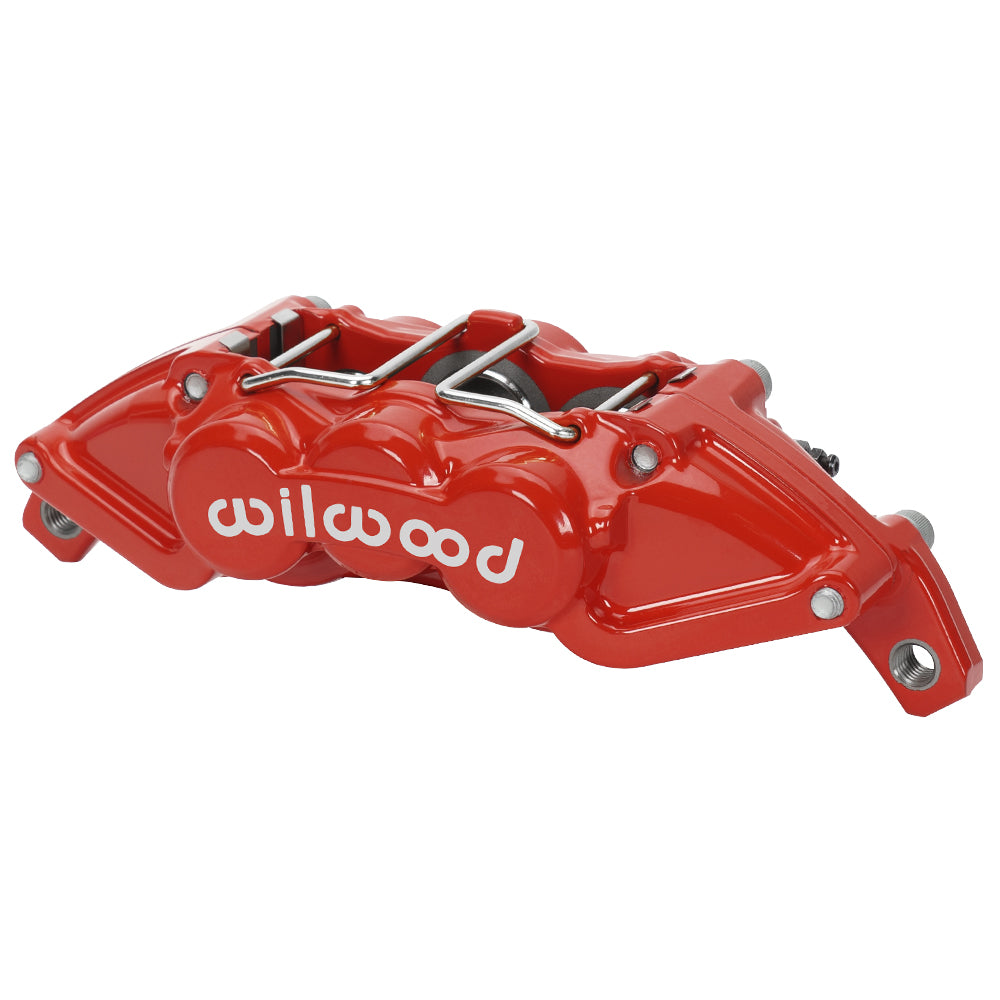

With 6 pistons and 1.12/1.12/1.00-inch bore dimensions, the red Wilwood UTV6 front left brake caliper for Honda Talon/Can-Am Maverick X3 must be matched to the brake system rather than selected by finish alone. Its 0.25-inch rotor-width specification is separate from rotor diameter. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among the disc brake components designed and manufactured by Wilwood Engineering. Bill Wood founded the company in 1977; it is based in Camarillo, California. The range serves motorsport, street-performance and specialized systems, with component selection determined by the full brake arrangement. UTV6 is a forged six-piston hydraulic caliper used in Wilwood UTV conversion packages. The original UTV caliper is not a substitute for the required Wilwood rotor, adapter and mounting arrangement. Match the vehicle-specific package and handed casting before ordering one replacement caliper.
Technical Details
- Manufacturer part number: 120-16567-RD
- Component: UTV6 Caliper; one individual caliper
- Placement: Front Left
- Construction and finish: Forged aluminum; Red Powder Coat
- Mounting interface: Lug; mounting centers 8.75 inches
- Hydraulic inlet thread: M10 x 1.25
- Nominal rotor width: 0.25 inches
- Rotor width range: 0.19–0.25 inches
- Maximum rotor diameter: 11.25 inches
- Caliper weight reference: 3.2 lb
- Pistons: 6; stainless steel; bore dimensions 1.12/1.12/1.00 inches
- Hydraulic piston area: 2.77 square inches
- Dust boots: No
- Brake pad shape: 7812; shape number does not specify a friction compound
Fitment & Compatibility
Replacement caliper for matching Wilwood front conversion kits on Honda Talon (2019–2021) and Can-Am Maverick X3 (2017–2023). It requires the Wilwood kit-specific bracket, 11.25 × 0.25-inch-wide rotor and adapter arrangement. Verify right versus left and the installed kit; it is not a direct factory-caliper replacement.
Wilwood caliper specifications · Wilwood technical reference
PMB Performance has over 20 years of experience with parts and brake fitment. Send the installed rotor dimensions, bracket measurements and hydraulic details so we can help compare the component before you order.
