Product details

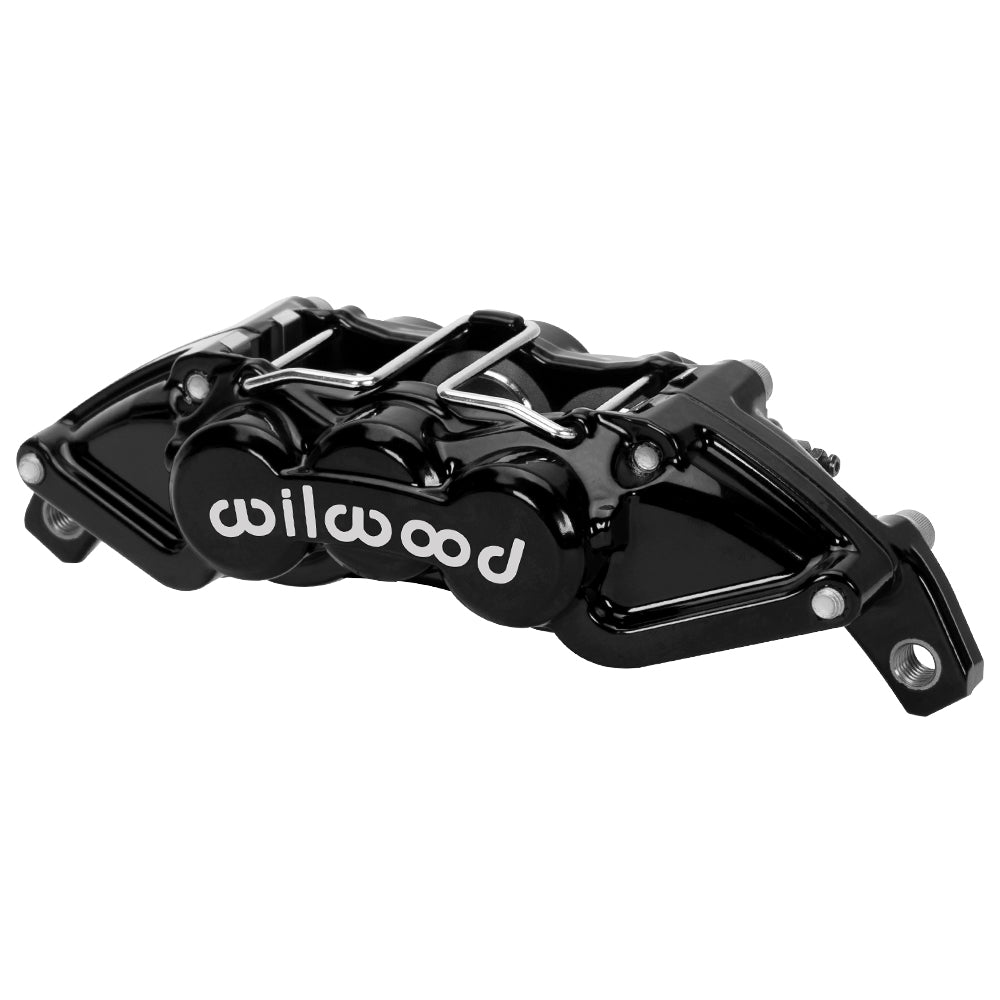

A 0.25-inch rotor-width specification and 1.12/1.12/1.00-inch piston bores identify this front left Wilwood UTV6 brake caliper for Honda Talon/Can-Am Maverick X3. The black finish is applied to the exact component described below; match the mounting bracket before replacement. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures calipers, rotors, master cylinders, valves, fittings and brake lines as part of its disc brake range. Its motorsport, street-performance and specialized products are chosen around the requirements of the whole braking system. UTV6 is a forged six-piston hydraulic caliper used in Wilwood UTV conversion packages. The original UTV caliper is not a substitute for the required Wilwood rotor, adapter and mounting arrangement. Match the vehicle-specific package and handed casting before ordering one replacement caliper.
Technical Details
- Manufacturer part number: 120-16567-BK
- Component: UTV6 Caliper; one individual caliper
- Placement: Front Left
- Construction and finish: Forged aluminum; Black Powder Coat
- Pistons: 6; stainless steel; bore dimensions 1.12/1.12/1.00 inches
- Hydraulic piston area: 2.77 square inches
- Dust boots: No
- Brake pad shape: 7812; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 8.75 inches
- Hydraulic inlet thread: M10 x 1.25
- Nominal rotor width: 0.25 inches
- Rotor width range: 0.19–0.25 inches
- Maximum rotor diameter: 11.25 inches
- Caliper weight reference: 3.2 lb
Fitment & Compatibility
Replacement caliper for matching Wilwood front conversion kits on Honda Talon (2019–2021) and Can-Am Maverick X3 (2017–2023). It requires the Wilwood kit-specific bracket, 11.25 × 0.25-inch-wide rotor and adapter arrangement. Verify right versus left and the installed kit; it is not a direct factory-caliper replacement.
