Product details

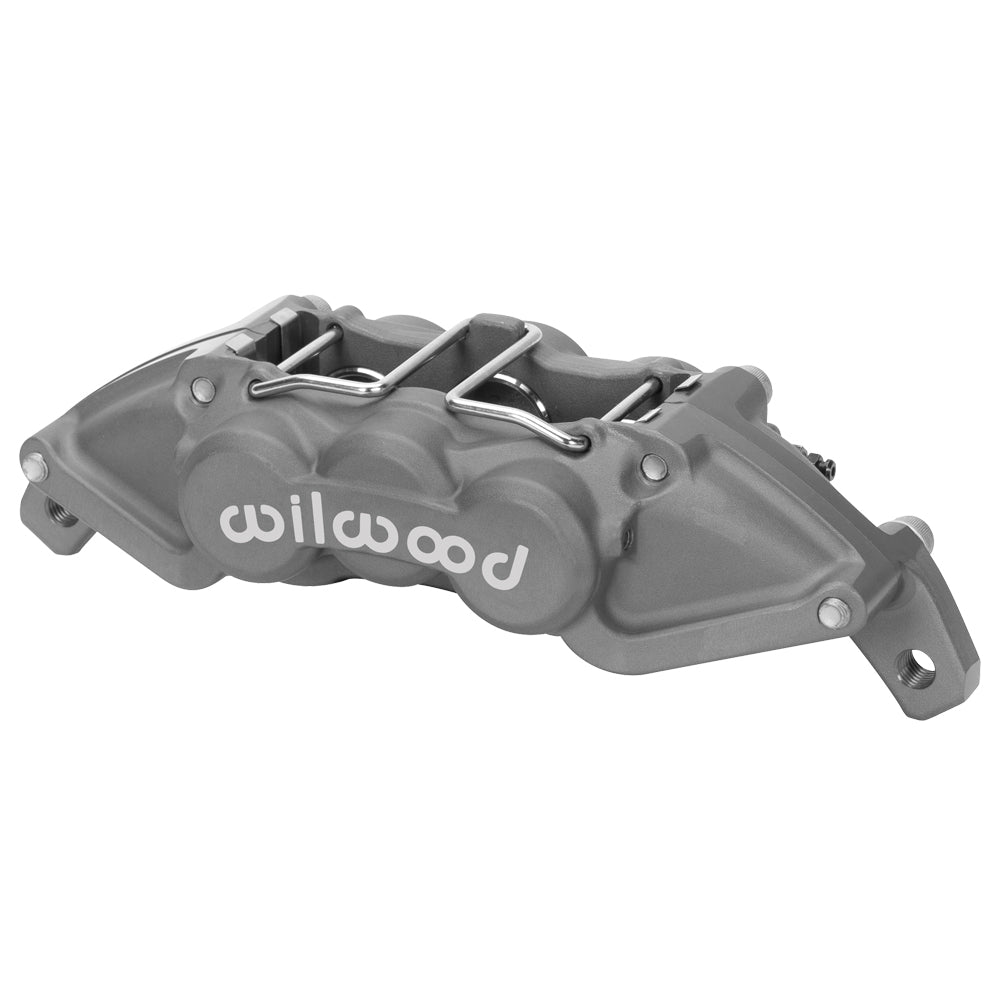

An individual Wilwood UTV6 front left brake caliper for Honda Talon/Can-Am Maverick X3, finished in anodized, is specified here. Use the 1.12/1.12/1.00-inch piston bores, 8.75-inch mounting centers and 0.25-inch rotor width to compare it with the existing brake assembly. UTV6 is a forged six-piston hydraulic caliper used in Wilwood UTV conversion packages. The original UTV caliper is not a substitute for the required Wilwood rotor, adapter and mounting arrangement. Match the vehicle-specific package and handed casting before ordering one replacement caliper. For motorsport, street-performance and specialized braking applications, Wilwood Engineering designs and manufactures disc brake systems and their individual components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood supplies a range encompassing calipers, rotors, master cylinders, valves, fittings and brake lines, all selected to match the complete system.
Technical Details
- Manufacturer part number: 120-16567
- Component: UTV6 Caliper; one individual caliper
- Placement: Front Left
- Construction and finish: Forged aluminum; Type III Anodize
- Mounting interface: Lug; mounting centers 8.75 inches
- Hydraulic inlet thread: M10 x 1.25
- Pistons: 6; stainless steel; bore dimensions 1.12/1.12/1.00 inches
- Hydraulic piston area: 2.77 square inches
- Dust boots: No
- Brake pad shape: 7812; shape number does not specify a friction compound
- Nominal rotor width: 0.25 inches
- Rotor width range: 0.19–0.25 inches
- Maximum rotor diameter: 11.25 inches
- Caliper weight reference: 3.2 lb
Fitment & Compatibility
Replacement caliper for matching Wilwood front conversion kits on Honda Talon (2019–2021) and Can-Am Maverick X3 (2017–2023). It requires the Wilwood kit-specific bracket, 11.25 × 0.25-inch-wide rotor and adapter arrangement. Verify right versus left and the installed kit; it is not a direct factory-caliper replacement.
