Product details

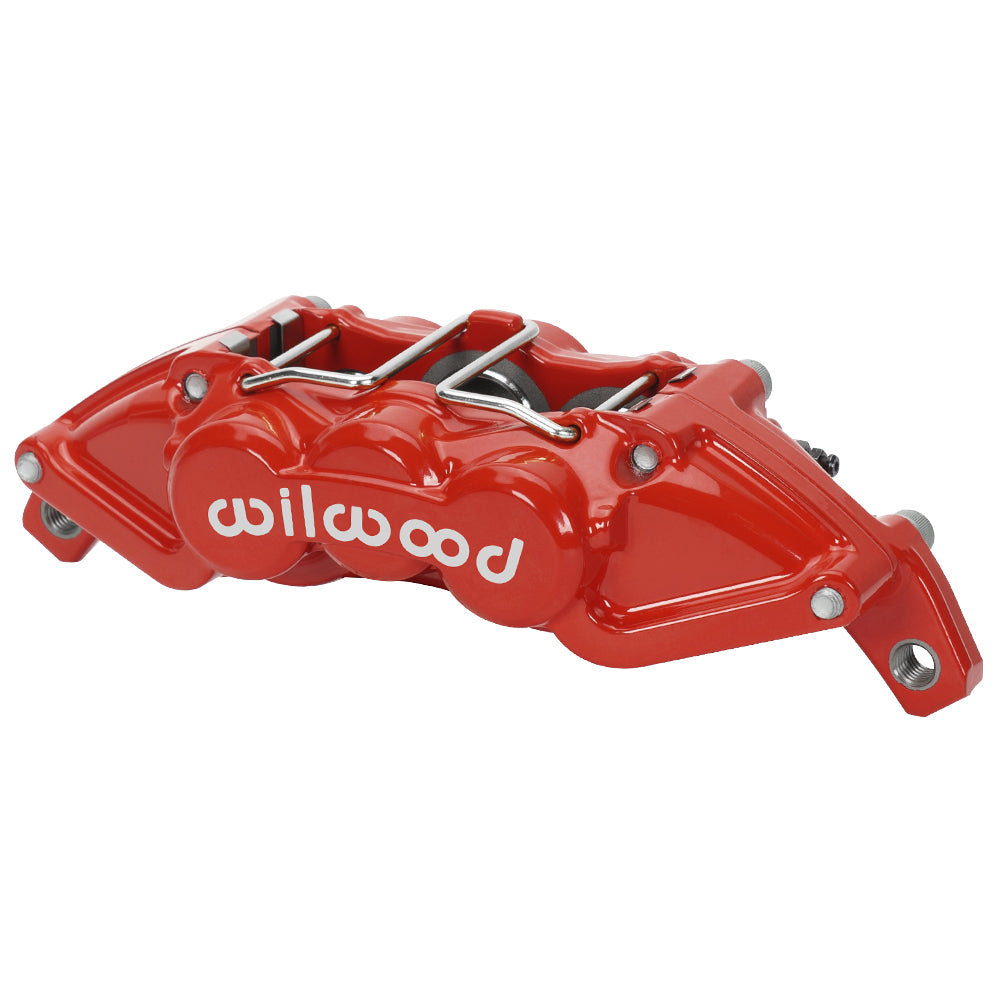

Select this red front right Wilwood UTV6 brake caliper for Honda Talon/Can-Am Maverick X3 by the actual lug mounting geometry, not just its appearance. The 6-piston unit uses 1.12/1.12/1.00-inch bore dimensions and is configured around a 0.25-inch-wide rotor. UTV6 is a forged six-piston hydraulic caliper used in Wilwood UTV conversion packages. The original UTV caliper is not a substitute for the required Wilwood rotor, adapter and mounting arrangement. Match the vehicle-specific package and handed casting before ordering one replacement caliper. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc braking equipment for motorsport, street-performance and specialized use. Calipers, rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must be matched to one another.
Technical Details
- Manufacturer part number: 120-16566-RD
- Component: UTV6 Caliper; one individual caliper
- Placement: Front Right
- Construction and finish: Forged aluminum; Red Powder Coat
- Pistons: 6; stainless steel; bore dimensions 1.12/1.12/1.00 inches
- Hydraulic piston area: 2.77 square inches
- Dust boots: No
- Brake pad shape: 7812; shape number does not specify a friction compound
- Nominal rotor width: 0.25 inches
- Rotor width range: 0.19–0.25 inches
- Maximum rotor diameter: 11.25 inches
- Caliper weight reference: 3.2 lb
- Mounting interface: Lug; mounting centers 8.75 inches
- Hydraulic inlet thread: M10 x 1.25
Fitment & Compatibility
Replacement caliper for matching Wilwood front conversion kits on Honda Talon (2019–2021) and Can-Am Maverick X3 (2017–2023). It requires the Wilwood kit-specific bracket, 11.25 × 0.25-inch-wide rotor and adapter arrangement. Verify right versus left and the installed kit; it is not a direct factory-caliper replacement.
Wilwood caliper specifications · Wilwood technical reference
For a modified brake system, provide its existing component specifications along with the vehicle details. PMB Performance has over 20 years of parts and fitment experience to help check the assembly before purchase.
