Product details

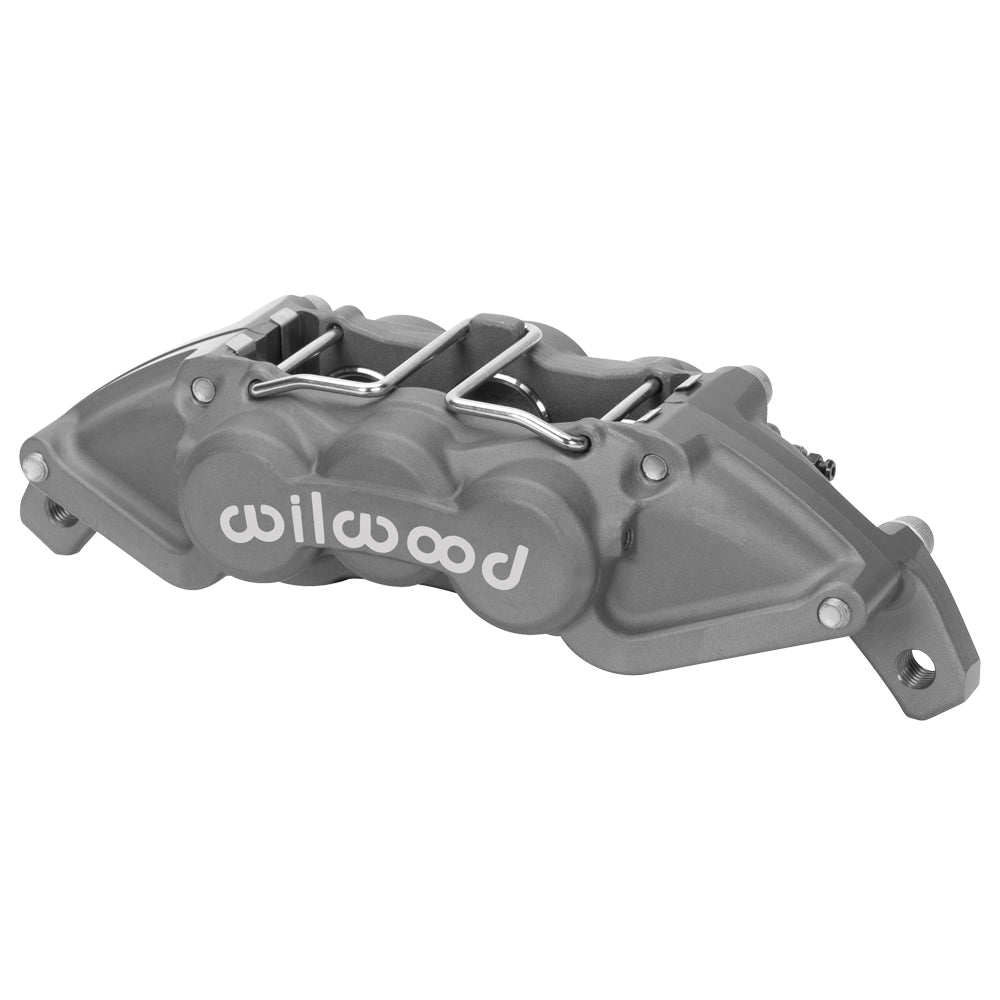

For a brake assembly requiring the 0.25-inch rotor-width version, this Wilwood UTV6 front right brake caliper for Honda Talon/Can-Am Maverick X3 provides the anodized configuration. Compare its lug mount and piston area with the component being replaced. UTV6 is a forged six-piston hydraulic caliper used in Wilwood UTV conversion packages. The original UTV caliper is not a substitute for the required Wilwood rotor, adapter and mounting arrangement. Match the vehicle-specific package and handed casting before ordering one replacement caliper. Based in Camarillo, California, Wilwood Engineering has its origins in the company Bill Wood founded in 1977. Its designs and manufactured disc brake products cover calipers and rotors alongside master cylinders, valves, fittings and lines. Motorsport, street-performance and specialized installations each require components selected for the complete system.
Technical Details
- Manufacturer part number: 120-16566
- Component: UTV6 Caliper; one individual caliper
- Placement: Front Right
- Construction and finish: Forged aluminum; Type III Anodize
- Pistons: 6; stainless steel; bore dimensions 1.12/1.12/1.00 inches
- Hydraulic piston area: 2.77 square inches
- Dust boots: No
- Brake pad shape: 7812; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 8.75 inches
- Hydraulic inlet thread: M10 x 1.25
- Nominal rotor width: 0.25 inches
- Rotor width range: 0.19–0.25 inches
- Maximum rotor diameter: 11.25 inches
- Caliper weight reference: 3.2 lb
Fitment & Compatibility
Replacement caliper for matching Wilwood front conversion kits on Honda Talon (2019–2021) and Can-Am Maverick X3 (2017–2023). It requires the Wilwood kit-specific bracket, 11.25 × 0.25-inch-wide rotor and adapter arrangement. Verify right versus left and the installed kit; it is not a direct factory-caliper replacement.
Wilwood caliper specifications · Wilwood technical reference
For a modified brake system, provide its existing component specifications along with the vehicle details. PMB Performance has over 20 years of parts and fitment experience to help check the assembly before purchase.
