Product details

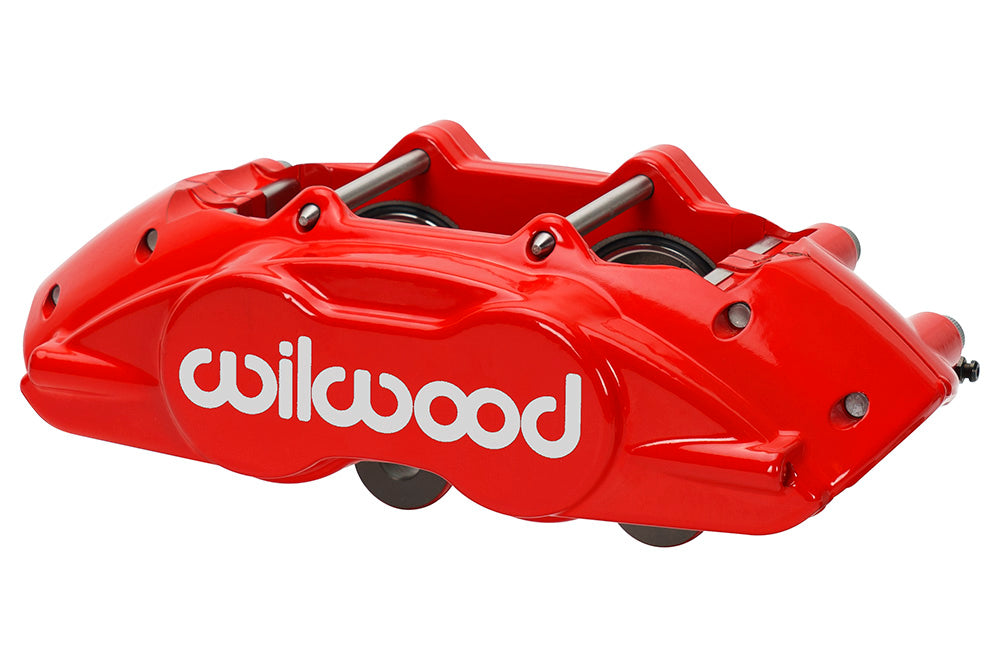

Wilwood supplies this front D11 brake caliper for Ford Mustang/Fairlane (1965–1967) and Ranchero (1966–1967) with a red finish. Its 7.00-inch mounting span and 0.94-inch-wide rotor configuration are key checks when selecting a single caliper for an existing system. The D11 is an individual four-piston replacement for the matching Kelsey-Hayes front brake. It retains the D11 pad outline and uses a 1/8-27 NPT hose connection. Calipers, pads, flexlines and rotors are separate from the complete brake kits sold under other part numbers. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures calipers, rotors, master cylinders, valves, fittings and brake lines as part of its disc brake range. Its motorsport, street-performance and specialized products are chosen around the requirements of the whole braking system.
Technical Details
- Manufacturer part number: 120-16510-RD
- Component: D11 Caliper; one individual caliper
- Placement: Front Universal mounting orientation; verify axle position
- Construction and finish: Forged aluminum; Red Powder Coat
- Nominal rotor width: 0.94 inches
- Rotor width range: 0.81–0.94 inches
- Rotor diameter range: 11.30–11.30 inches
- Caliper weight reference: 6.3 lb
- Pistons: 4; stainless steel; bore dimensions 1.62/1.62 inches
- Hydraulic piston area: 4.12 square inches
- Dust boots: No
- Brake pad shape: D11; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 7.00 inches
- Mount height: 1.83 inches
- Hydraulic inlet thread: 1/8-27 NPT
Fitment & Compatibility
Direct replacement for the matching Kelsey-Hayes front disc brakes on Ford Mustang and Fairlane (1965–1967), and Ranchero (1966–1967). Falcon and Mercury Comet installations require the correct Kelsey-Hayes bracket and other matching brake components; do not assume a direct fit from the model name. Use a compatible flexline with the specified 1/8-27 NPT connection. Pads, rotors and hoses are separate.
