Product details

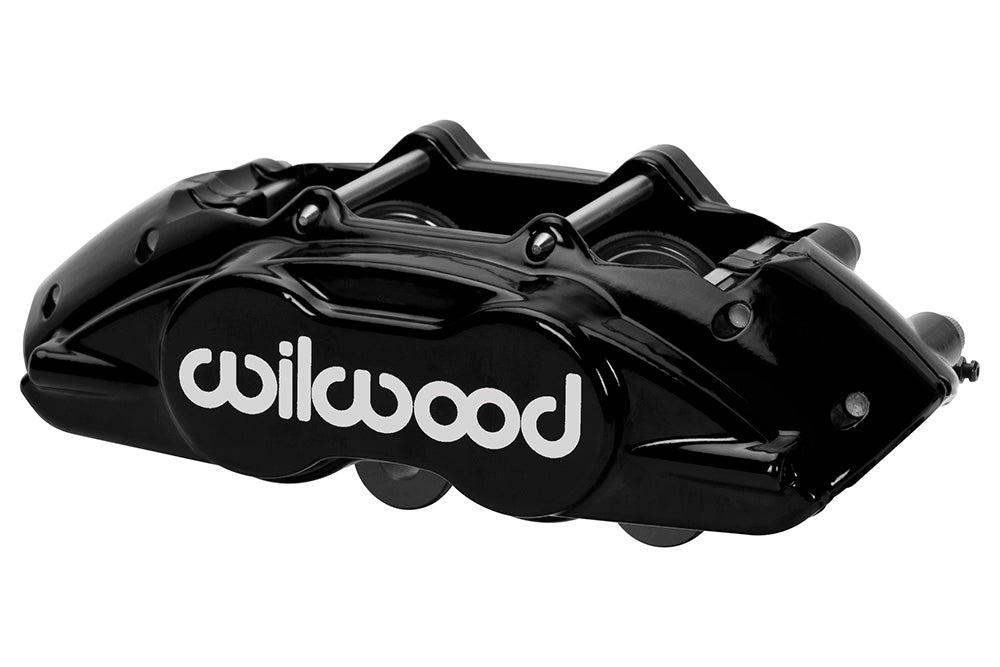

The rotor and bracket determine whether this black Wilwood D11 front brake caliper for Ford Mustang/Fairlane (1965–1967) and Ranchero (1966–1967) is the correct choice. Its 0.94-inch rotor-width configuration works with the lug mount and 4-piston layout detailed below. The D11 is an individual four-piston replacement for the matching Kelsey-Hayes front brake. It retains the D11 pad outline and uses a 1/8-27 NPT hose connection. Calipers, pads, flexlines and rotors are separate from the complete brake kits sold under other part numbers. For motorsport, street-performance and specialized braking applications, Wilwood Engineering designs and manufactures disc brake systems and their individual components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood supplies a range encompassing calipers, rotors, master cylinders, valves, fittings and brake lines, all selected to match the complete system.
Technical Details
- Manufacturer part number: 120-16510-BK
- Component: D11 Caliper; one individual caliper
- Placement: Front Universal mounting orientation; verify axle position
- Construction and finish: Forged aluminum; Black Powder Coat
- Pistons: 4; stainless steel; bore dimensions 1.62/1.62 inches
- Hydraulic piston area: 4.12 square inches
- Dust boots: No
- Brake pad shape: D11; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 7.00 inches
- Mount height: 1.83 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Nominal rotor width: 0.94 inches
- Rotor width range: 0.81–0.94 inches
- Rotor diameter range: 11.30–11.30 inches
- Caliper weight reference: 6.3 lb
Fitment & Compatibility
Direct replacement for the matching Kelsey-Hayes front disc brakes on Ford Mustang and Fairlane (1965–1967), and Ranchero (1966–1967). Falcon and Mercury Comet installations require the correct Kelsey-Hayes bracket and other matching brake components; do not assume a direct fit from the model name. Use a compatible flexline with the specified 1/8-27 NPT connection. Pads, rotors and hoses are separate.
Wilwood caliper specifications · Wilwood technical reference
Contact PMB Performance for a component comparison using the actual caliper, bracket and rotor measurements. Our team has over 20 years of experience with parts and fitment details.
