Product details

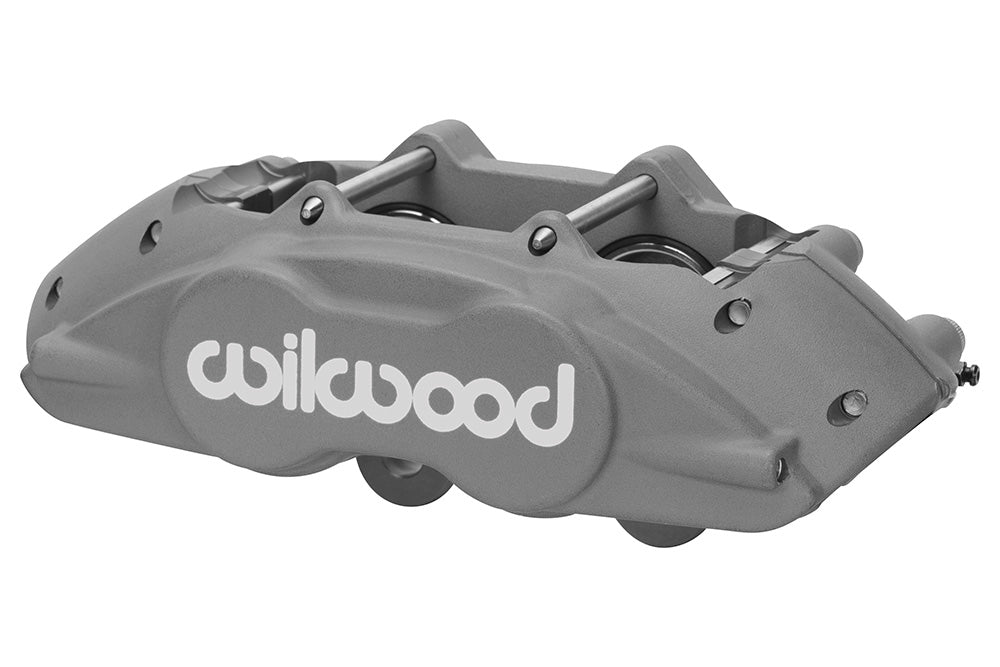

The anodized front Wilwood D11 for Ford Mustang/Fairlane (1965–1967) and Ranchero (1966–1967) is an individual brake caliper. It combines a 7.00-inch attachment span with 1.62/1.62-inch piston bores; confirm the rotor centerline and 0.94-inch width configuration before installation. The D11 is an individual four-piston replacement for the matching Kelsey-Hayes front brake. It retains the D11 pad outline and uses a 1/8-27 NPT hose connection. Calipers, pads, flexlines and rotors are separate from the complete brake kits sold under other part numbers. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc braking equipment for motorsport, street-performance and specialized use. Calipers, rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must be matched to one another.
Technical Details
- Manufacturer part number: 120-16510
- Component: D11 Caliper; one individual caliper
- Placement: Front Universal mounting orientation; verify axle position
- Construction and finish: Forged aluminum; Type III Anodize
- Nominal rotor width: 0.94 inches
- Rotor width range: 0.81–0.94 inches
- Rotor diameter range: 11.30–11.30 inches
- Caliper weight reference: 6.3 lb
- Mounting interface: Lug; mounting centers 7.00 inches
- Mount height: 1.83 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Pistons: 4; stainless steel; bore dimensions 1.62/1.62 inches
- Hydraulic piston area: 4.12 square inches
- Dust boots: No
- Brake pad shape: D11; shape number does not specify a friction compound
Fitment & Compatibility
Direct replacement for the matching Kelsey-Hayes front disc brakes on Ford Mustang and Fairlane (1965–1967), and Ranchero (1966–1967). Falcon and Mercury Comet installations require the correct Kelsey-Hayes bracket and other matching brake components; do not assume a direct fit from the model name. Use a compatible flexline with the specified 1/8-27 NPT connection. Pads, rotors and hoses are separate.
Wilwood caliper specifications · Wilwood technical reference
A correct caliper choice begins with the complete brake arrangement. PMB Performance has over 20 years of parts and fitment experience; send the mounting geometry and rotor dimensions for help with your selection.
