Product details

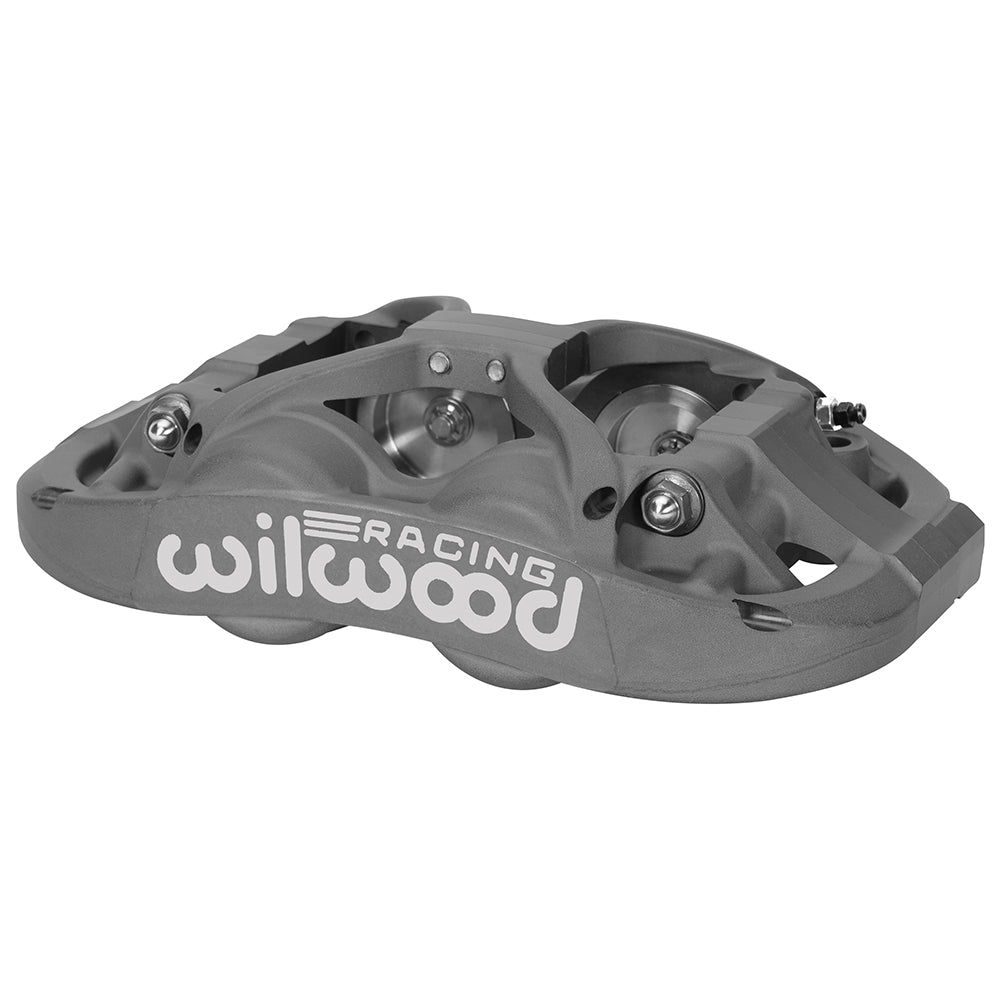

Wilwood supplies this right XRZ4R-ST brake caliper with an anodized finish. Its 5.98-inch mounting span and 0.81-inch-wide rotor configuration are key checks when selecting a single caliper for an existing system. XRZ4R-ST is a forged four-piston radial race caliper with Thermlock pistons and an X-shaped center bridge. It uses 10420-shape pads and a 3/8-24 hydraulic inlet. Confirm the brake bracket and piston volume when replacing another radial caliper. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Components must be selected to suit the complete brake system.
Technical Details
- Manufacturer part number: 120-16462
- Component: XRZ4R Radial Mount; one individual caliper
- Placement: Right
- Construction and finish: Forged aluminum; Type III Anodize
- Pistons: 4; Thermlock insulated; bore dimensions 1.88/1.75 inches
- Hydraulic piston area: 5.18 square inches
- Dust boots: No
- Brake pad shape: 10420; shape number does not specify a friction compound
- Nominal rotor width: 0.81 inches
- Rotor width range: 0.75–0.90 inches
- Rotor diameter range: 11.75–14.00 inches
- Caliper weight reference: 5.2 lb
- Mounting interface: Radial; mounting centers 5.98 inches
- Mounting-hole diameter: 0.39 inches
- Mount height: 1.63 inches
- Hydraulic inlet thread: 3/8-24
Fitment & Compatibility
Check bracket location and rotor sweep using the installation drawing; 5.98-inch radial mounting alone does not establish a vehicle fit. Use the right-hand caliper and keep the bleed arrangement in the specified orientation. Use the 1.88/1.75-inch piston-bore specification when reviewing hydraulic balance, and verify hose routing and wheel clearance.
