Product details

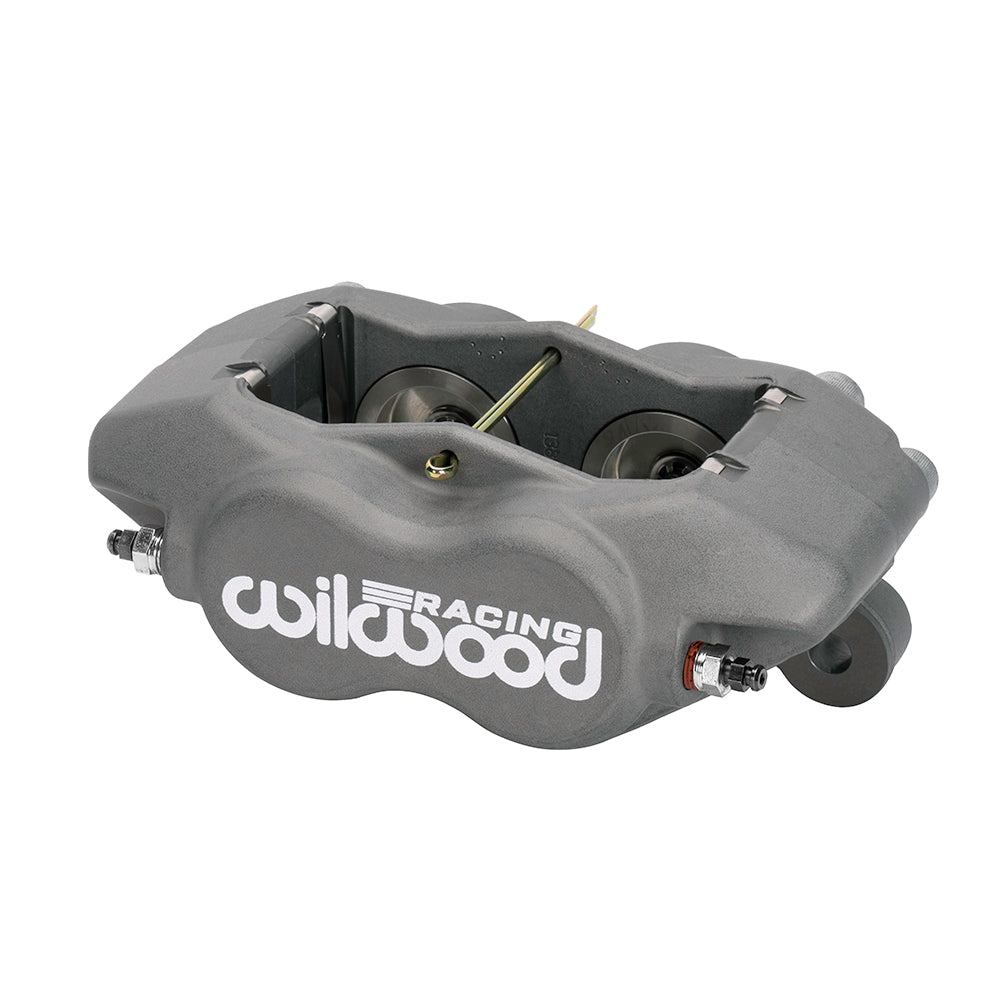

Check the 5.25-inch mounting centers before fitting this anodized Wilwood Dynalite Internal-ST brake caliper. The component is sold individually and uses 1.38/1.38-inch bores in its 0.81-inch rotor-width configuration. Dynalite Internal-ST combines a forged body and internal fluid routing with Thermlock insulated pistons. It is a four-piston caliper for a measured lug-mount assembly; rotor centering, pad sweep and clearance must be verified before the hydraulic system is commissioned. For motorsport, street-performance and specialized braking applications, Wilwood Engineering designs and manufactures disc brake systems and their individual components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood supplies a range encompassing calipers, rotors, master cylinders, valves, fittings and brake lines, all selected to match the complete system.
Technical Details
- Manufacturer part number: 120-16456
- Component: Forged Dynalite Internal-ST; one individual caliper
- Placement: Universal mounting orientation; verify axle position
- Construction and finish: Forged aluminum; Type III Anodize
- Mounting interface: Lug; mounting centers 5.25 inches
- Mounting-hole diameter: 0.39 inches
- Mount height: 2.03 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Pistons: 4; Thermlock insulated; bore dimensions 1.38/1.38 inches
- Hydraulic piston area: 3.00 square inches
- Dust boots: No
- Brake pad shape: 7112; shape number does not specify a friction compound
- Nominal rotor width: 0.81 inches
- Rotor width range: 0.75–0.83 inches
- Rotor diameter range: 10.00–13.06 inches
- Caliper weight reference: 3.6 lb
Fitment & Compatibility
This caliper requires the measured 0.81-inch rotor-width configuration and the matching lug bracket on 5.25-inch centers. Axle placement is determined by the engineered brake package, not by a generic caliper designation. Confirm the 1/8-27 NPT hydraulic inlet, pad outline and total piston area with the rest of the brake system before assembly.
