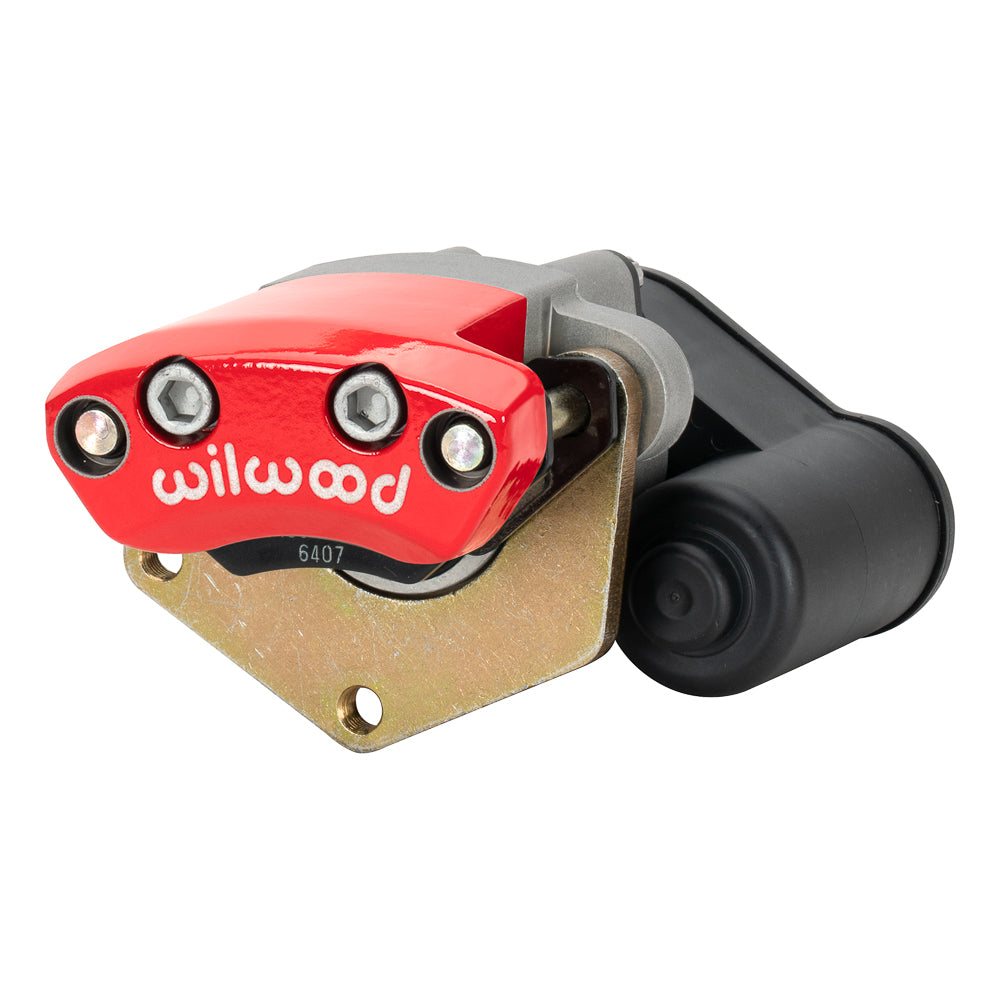

Wilwood 1-Piston EPB Caliper, Red — Left Lug Mount for 0.81-Inch Rotor Width

Select this red left Wilwood EPB electric parking brake caliper by the actual lug mounting geometry, not just its appearance. The 1-piston unit uses 1.25-inch bore dimensions and is configured around a 0.81-inch-wide rotor. An electric motor and reduction drive operate this separate parking caliper. The brake-system controller, harness and dashboard switch are separate components. Mounting geometry, motor clearance and rotor width must all be checked; this is one caliper rather than a complete parking-brake conversion. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Components must be selected to suit the complete brake system.

Technical Details

• Manufacturer part number: 120-16341-RD
• Component: Electric Parking Brake; one individual caliper
• Placement: Left
• Construction and finish: aluminum / Steel; Red Powder Coat
• Nominal rotor width: 0.81 inches
• Rotor width range: 0.75–0.81 inches
• Rotor diameter range: 11.00–14.00 inches
• Caliper weight reference: 5.0 lb
• Mounting interface: Lug; mounting centers 2.00 inches
• Mount height: 1.18 inches
• Hydraulic inlet: none; this is a separate parking caliper
• Pistons: 1; steel; bore dimensions 1.25 inches
• Actuation: electric motor and gear drive
• Dust boots: No
• Brake pad shape: 6407; shape number does not specify a friction compound

One electric parking caliper with its motor; the control module, harness, dashboard switch, rotor and vehicle-specific mounting adapters are separate. Confirm the required pad configuration before assembly.

Fitment & Compatibility

Use this motor-operated caliper only as a parking brake in a properly engineered installation. Confirm the motor side, rotor centering and mounting plate. The controller, electrical harness, switch and vehicle-specific attachment hardware must be selected separately; no hydraulic inlet is used.
