Product details

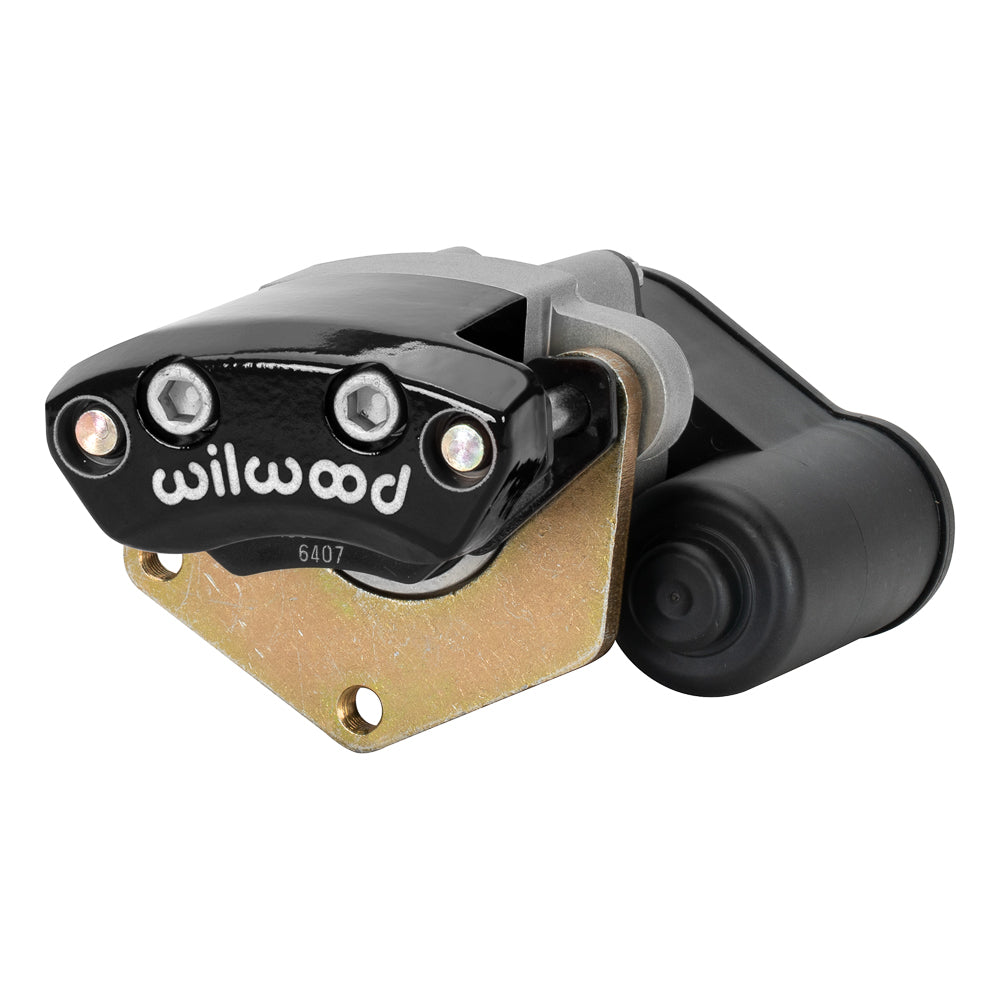

Wilwood EPB calipers must be matched by width and mounting configuration. This black left electric parking brake caliper has 1.25-inch bore dimensions, a 2.00-inch mounting span and the 0.81-inch-wide rotor specification. An electric motor and reduction drive operate this separate parking caliper. The brake-system controller, harness and dashboard switch are separate components. Mounting geometry, motor clearance and rotor width must all be checked; this is one caliper rather than a complete parking-brake conversion. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among the disc brake components designed and manufactured by Wilwood Engineering. Bill Wood founded the company in 1977; it is based in Camarillo, California. The range serves motorsport, street-performance and specialized systems, with component selection determined by the full brake arrangement.
Technical Details
- Manufacturer part number: 120-16341-BK
- Component: Electric Parking Brake; one individual caliper
- Placement: Left
- Construction and finish: aluminum / Steel; Black Powder Coat
- Pistons: 1; steel; bore dimensions 1.25 inches
- Actuation: electric motor and gear drive
- Dust boots: No
- Brake pad shape: 6407; shape number does not specify a friction compound
- Nominal rotor width: 0.81 inches
- Rotor width range: 0.75–0.81 inches
- Rotor diameter range: 11.00–14.00 inches
- Caliper weight reference: 5.0 lb
- Mounting interface: Lug; mounting centers 2.00 inches
- Mount height: 1.18 inches
- Hydraulic inlet: none; this is a separate parking caliper
One electric parking caliper with its motor; the control module, harness, dashboard switch, rotor and vehicle-specific mounting adapters are separate. Confirm the required pad configuration before assembly.
Fitment & Compatibility
Use this motor-operated caliper only as a parking brake in a properly engineered installation. Confirm the motor side, rotor centering and mounting plate. The controller, electrical harness, switch and vehicle-specific attachment hardware must be selected separately; no hydraulic inlet is used.
