Product details

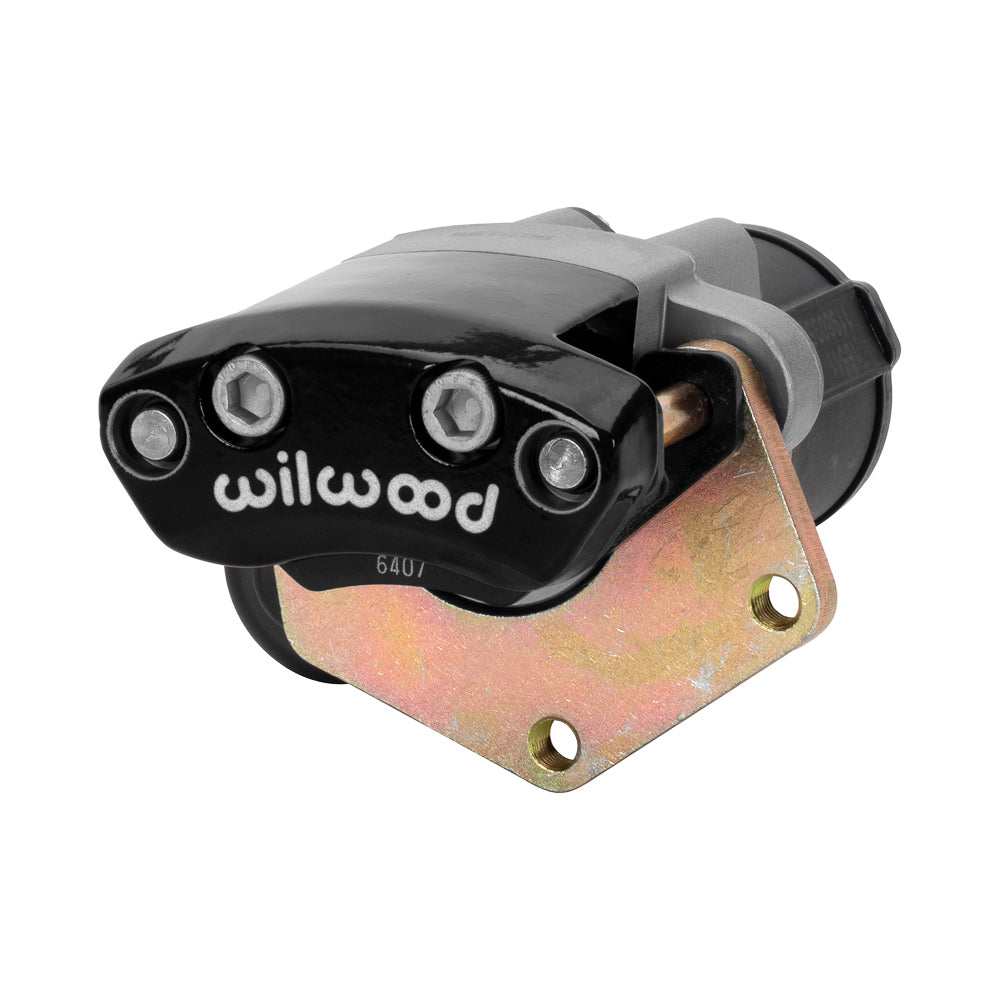

The 2.00-inch lug attachment distinguishes this right Wilwood EPB electric parking brake caliper. This individual black unit is built for the 0.81-inch-wide rotor configuration and requires accurate alignment with the mating rotor and bracket. An electric motor and reduction drive operate this separate parking caliper. The brake-system controller, harness and dashboard switch are separate components. Mounting geometry, motor clearance and rotor width must all be checked; this is one caliper rather than a complete parking-brake conversion. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc braking equipment for motorsport, street-performance and specialized use. Calipers, rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must be matched to one another.
Technical Details
- Manufacturer part number: 120-16340-BK
- Component: Electric Parking Brake; one individual caliper
- Placement: Right
- Construction and finish: aluminum / Steel; Black Powder Coat
- Nominal rotor width: 0.81 inches
- Rotor width range: 0.75–0.81 inches
- Rotor diameter range: 11.00–14.00 inches
- Caliper weight reference: 5.0 lb
- Mounting interface: Lug; mounting centers 2.00 inches
- Mount height: 1.18 inches
- Hydraulic inlet: none; this is a separate parking caliper
- Pistons: 1; steel; bore dimensions 1.25 inches
- Actuation: electric motor and gear drive
- Dust boots: No
- Brake pad shape: 6407; shape number does not specify a friction compound
One electric parking caliper with its motor; the control module, harness, dashboard switch, rotor and vehicle-specific mounting adapters are separate. Confirm the required pad configuration before assembly.
Fitment & Compatibility
Use this motor-operated caliper only as a parking brake in a properly engineered installation. Confirm the motor side, rotor centering and mounting plate. The controller, electrical harness, switch and vehicle-specific attachment hardware must be selected separately; no hydraulic inlet is used.
