Product details

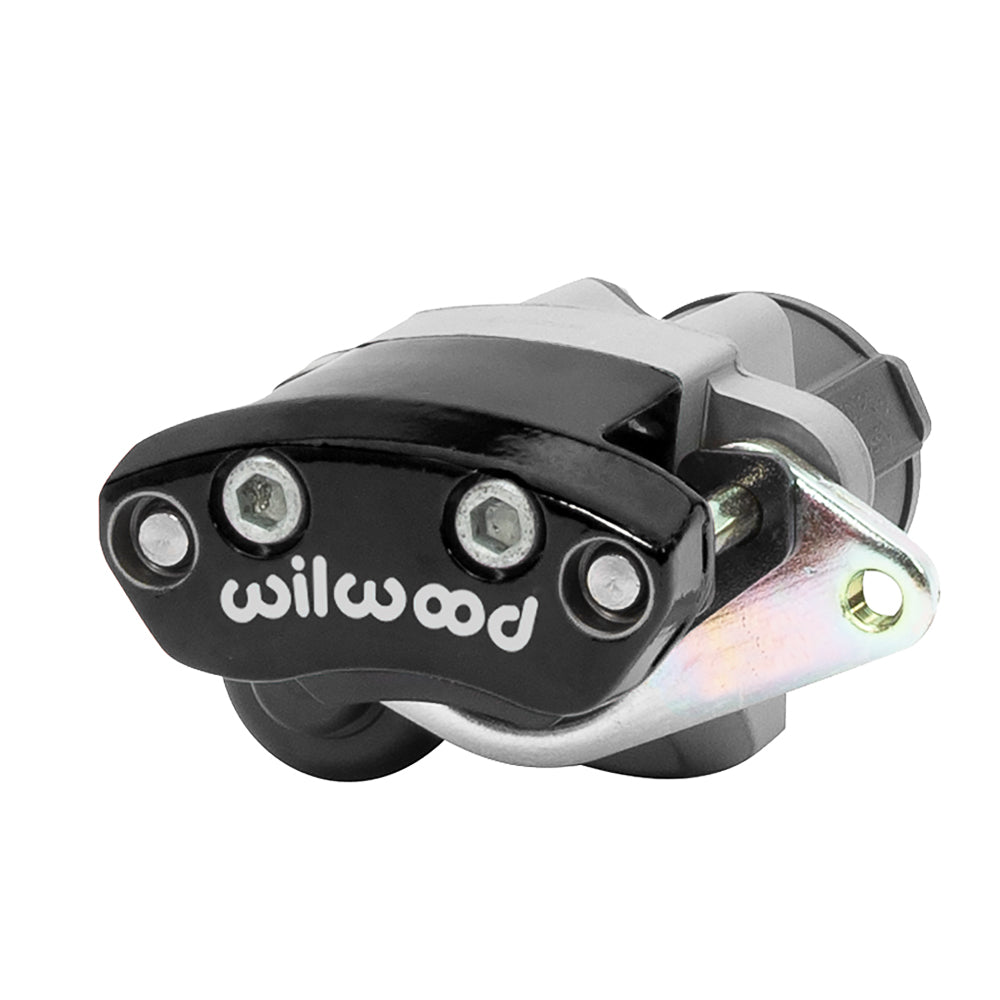

A 0.39-inch rotor-width specification and 1.25-inch piston bore identify this right Wilwood EPB electric parking brake caliper. The black finish is applied to the exact component described below; match the mounting bracket before replacement. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. Its disc brake design and manufacturing work includes master cylinders, valves, fittings and brake lines as well as rotors and calipers. The company serves motorsport, street-performance and specialized applications in which the entire brake system determines component choice. An electric motor and reduction drive operate this separate parking caliper. The brake-system controller, harness and dashboard switch are separate components. Mounting geometry, motor clearance and rotor width must all be checked; this is one caliper rather than a complete parking-brake conversion.
Technical Details
- Manufacturer part number: 120-16297-BK
- Component: Electric Parking Brake; one individual caliper
- Placement: Right
- Construction and finish: aluminum / Steel; Black Powder Coat
- Nominal rotor width: 0.39 inches
- Rotor width range: 0.15–0.39 inches
- Rotor diameter range: 11.00–14.00 inches
- Caliper weight reference: 5.0 lb
- Pistons: 1; steel; bore dimensions 1.25 inches
- Actuation: electric motor and gear drive
- Dust boots: No
- Brake pad shape: 6407; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 4.75 inches
- Mount height: 0.36 inches
- Hydraulic inlet: none; this is a separate parking caliper
One electric parking caliper with its motor; the control module, harness, dashboard switch, rotor and vehicle-specific mounting adapters are separate. Confirm the required pad configuration before assembly.
Fitment & Compatibility
Use this motor-operated caliper only as a parking brake in a properly engineered installation. Confirm the motor side, rotor centering and mounting plate. The controller, electrical harness, switch and vehicle-specific attachment hardware must be selected separately; no hydraulic inlet is used.
