Product details

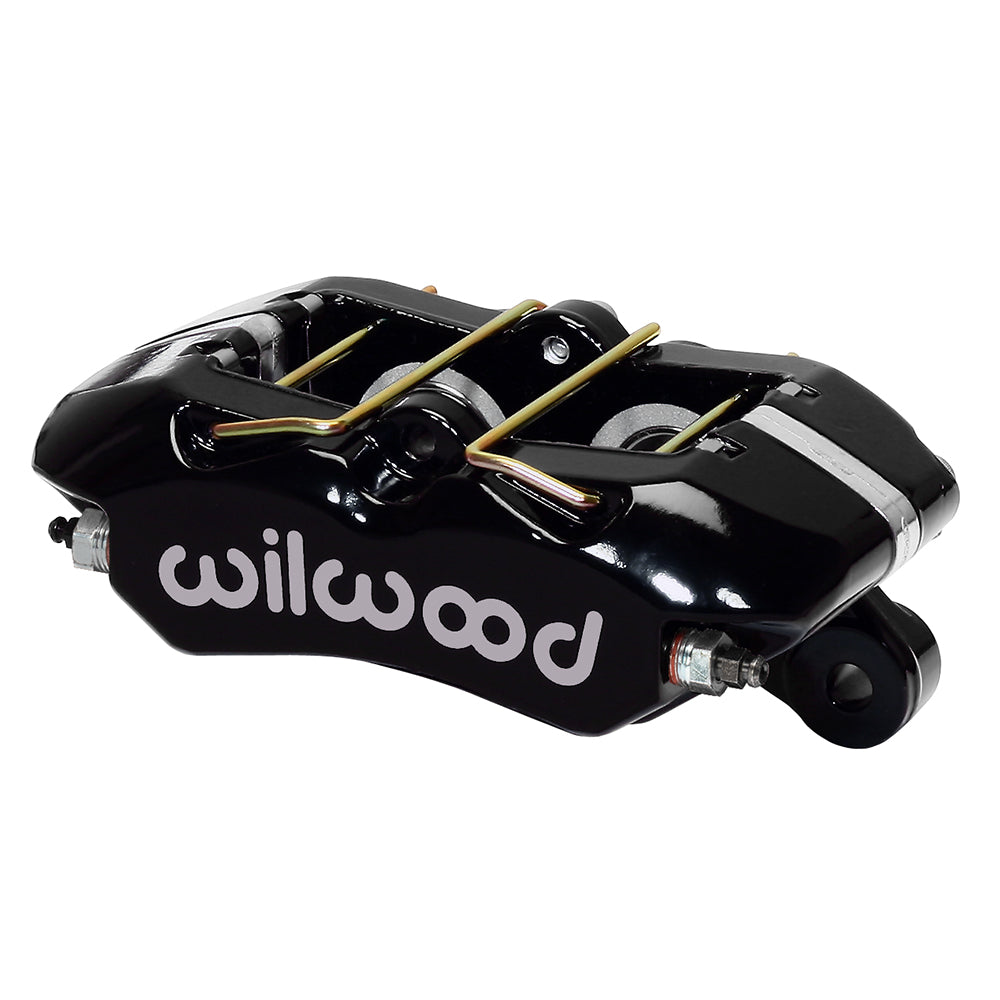

For a brake assembly requiring the 0.81-inch rotor-width version, this Wilwood DynaPro Low-Profile brake caliper provides the black configuration. Compare its lug mount and piston area with the component being replaced. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Components must be selected to suit the complete brake system. The forged DynaPro Low-Profile lug-mount caliper is shaped for limited outboard rotor-hat clearance and narrow swept areas. Top-supported 4812-shape pads and the reduced lower profile distinguish it from standard DynaPro configurations; confirm the actual envelope with the wheel and hat.
Technical Details
- Manufacturer part number: 120-16190-BK
- Component: Forged Dynapro Lug Mount Low-Profile; one individual caliper
- Placement: Universal mounting orientation; verify axle position
- Construction and finish: Forged aluminum; Black Powder Coat
- Pistons: 4; stainless steel; bore dimensions 1.38/1.38 inches
- Hydraulic piston area: 3.00 square inches
- Dust boots: No
- Brake pad shape: 4812; shape number does not specify a friction compound
- Nominal rotor width: 0.81 inches
- Rotor width range: 0.75–0.83 inches
- Rotor diameter range: 11.00–13.06 inches
- Caliper weight reference: 3.6 lb
- Mounting interface: Lug; mounting centers 5.25 inches
- Mounting-hole diameter: 0.39 inches
- Mount height: 2.10 inches
- Hydraulic inlet thread: 1/8-27 NPT
Fitment & Compatibility
Match the 5.25-inch lug attachment to the existing bracket, then check caliper centering over the 0.81-inch nominal-width rotor. Axle placement is determined by the engineered brake package, not by a generic caliper designation. The 1/8-27 NPT connection must use the correct fitting and seal. Check the full wheel envelope with the actual bracket and rotor installed.
