Product details

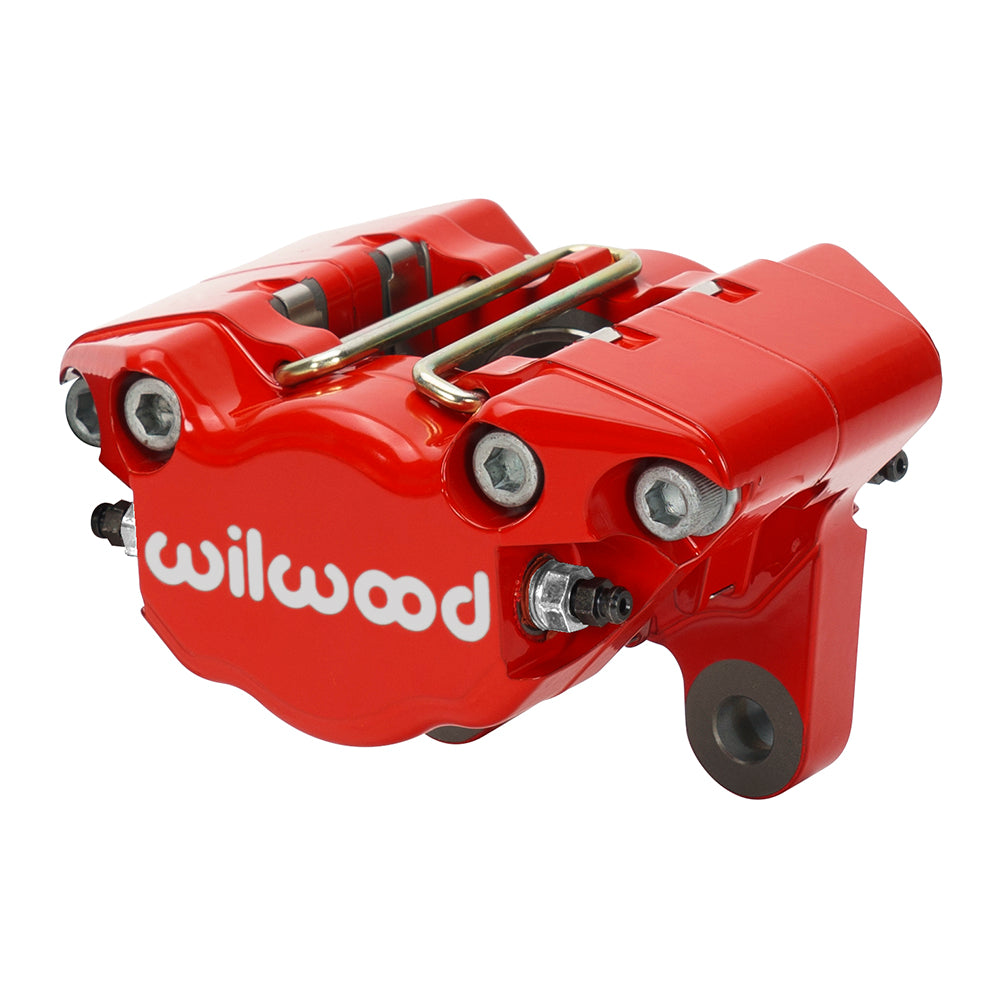

The red Wilwood DPS-VW for Volkswagen is an individual brake caliper. It combines a 2.22-inch attachment span with 1.62-inch piston bores; confirm the rotor centerline and 0.38-inch width configuration before installation. The Wilwood disc brake range is designed and manufactured for motorsport, street-performance and specialized applications. It includes brake lines, fittings, valves and master cylinders together with calipers and brake rotors. Wilwood Engineering was founded in 1977 by Bill Wood and is based in Camarillo, California; its components must be matched to the complete braking system. DynaPro Single-VW is an opposed two-piston billet caliper for selected classic Volkswagen disc-brake arrangements. Two 1.62-inch stainless pistons and a 2.22-inch lug spacing identify the configuration. Verify the installed brake conversion; a Volkswagen badge alone does not establish fitment.
Technical Details
- Manufacturer part number: 120-16070-RD
- Component: Dynapro Single VW; one individual caliper
- Placement: Universal mounting orientation; verify axle position
- Construction and finish: Billet aluminum; Red Powder Coat
- Mounting interface: Lug; mounting centers 2.22 inches
- Mounting-hole diameter: 0.40 inches
- Mount height: 2.22 inches
- Hydraulic inlet thread: M10 x 1.00
- Nominal rotor width: 0.38 inches
- Rotor width range: 0.25–0.38 inches
- Rotor diameter range: 6.00–13.00 inches
- Caliper weight reference: 2.3 lb
- Pistons: 2; stainless steel; bore dimensions 1.62 inches
- Hydraulic piston area: 2.06 square inches
- Dust boots: No
- Brake pad shape: 6812; shape number does not specify a friction compound
Fitment & Compatibility
For selected classic air-cooled Volkswagen disc-brake arrangements using the 2.22-inch lug mount. Compare the actual bracket, rotor width and hydraulic fitting. A specific Volkswagen model or year is not established here, and no direct axle position is assigned without checking the installed conversion.
Wilwood caliper specifications · Wilwood technical reference
A correct caliper choice begins with the complete brake arrangement. PMB Performance has over 20 years of parts and fitment experience; send the mounting geometry and rotor dimensions for help with your selection.
