Product details

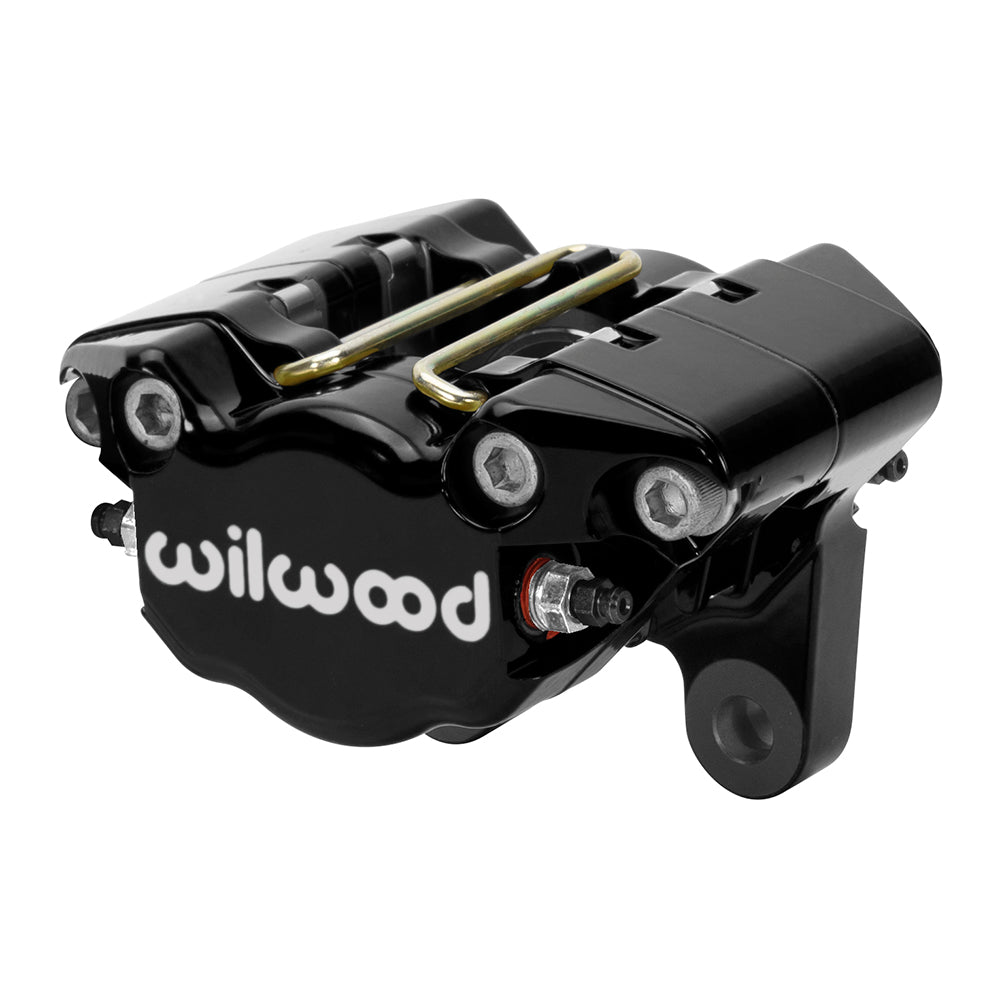

Check the 2.22-inch mounting centers before fitting this black Wilwood DPS-VW brake caliper for Volkswagen. The component is sold individually and uses 1.62-inch bores in its 0.38-inch rotor-width configuration. Based in Camarillo, California, Wilwood Engineering has its origins in the company Bill Wood founded in 1977. Its designs and manufactured disc brake products cover calipers and rotors alongside master cylinders, valves, fittings and lines. Motorsport, street-performance and specialized installations each require components selected for the complete system. DynaPro Single-VW is an opposed two-piston billet caliper for selected classic Volkswagen disc-brake arrangements. Two 1.62-inch stainless pistons and a 2.22-inch lug spacing identify the configuration. Verify the installed brake conversion; a Volkswagen badge alone does not establish fitment.
Technical Details
- Manufacturer part number: 120-16070-BK
- Component: Dynapro Single VW; one individual caliper
- Placement: Universal mounting orientation; verify axle position
- Construction and finish: Billet aluminum; Black Powder Coat
- Pistons: 2; stainless steel; bore dimensions 1.62 inches
- Hydraulic piston area: 2.06 square inches
- Dust boots: No
- Brake pad shape: 6812; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 2.22 inches
- Mounting-hole diameter: 0.40 inches
- Mount height: 2.22 inches
- Hydraulic inlet thread: M10 x 1.00
- Nominal rotor width: 0.38 inches
- Rotor width range: 0.25–0.38 inches
- Rotor diameter range: 6.00–13.00 inches
- Caliper weight reference: 2.3 lb
Fitment & Compatibility
For selected classic air-cooled Volkswagen disc-brake arrangements using the 2.22-inch lug mount. Compare the actual bracket, rotor width and hydraulic fitting. A specific Volkswagen model or year is not established here, and no direct axle position is assigned without checking the installed conversion.
Wilwood caliper specifications · Wilwood technical reference
A correct caliper choice begins with the complete brake arrangement. PMB Performance has over 20 years of parts and fitment experience; send the mounting geometry and rotor dimensions for help with your selection.
