Product details

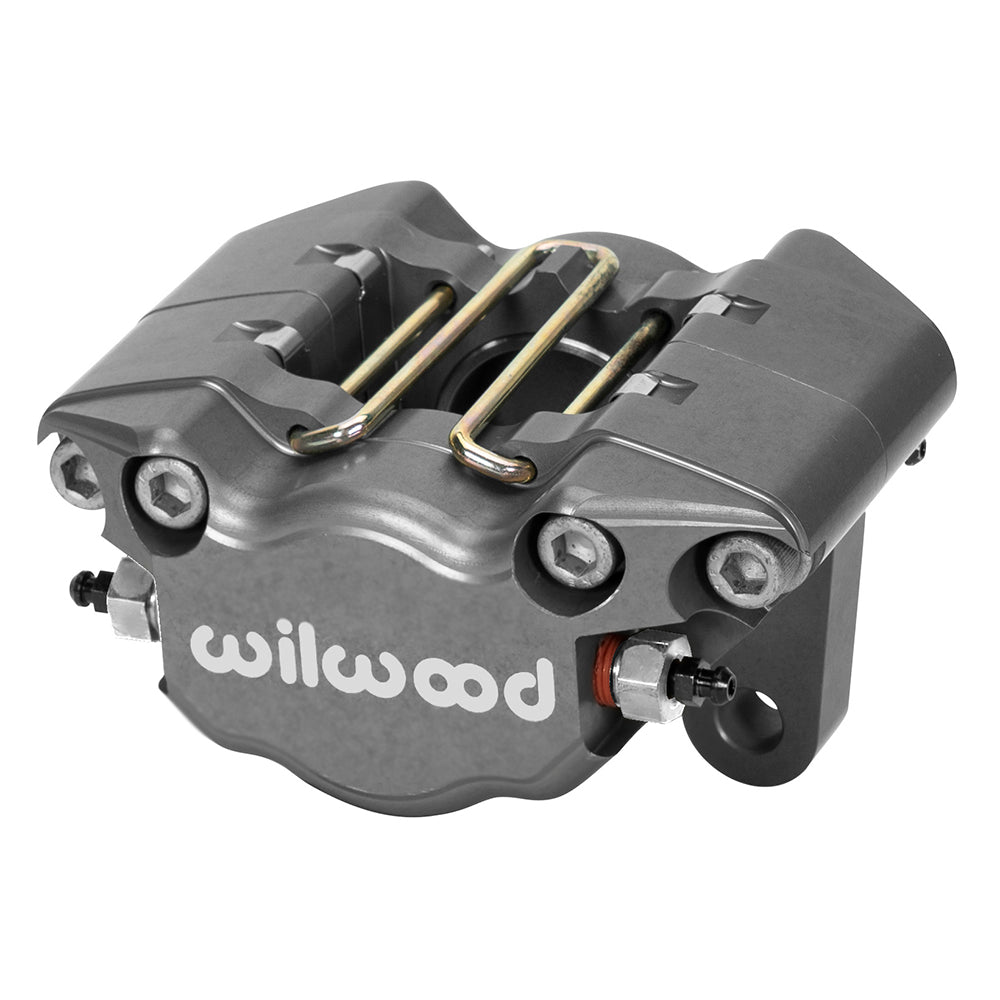

With 2 pistons and 1.62-inch bore dimensions, the anodized Wilwood DPS-VW brake caliper for Volkswagen must be matched to the brake system rather than selected by finish alone. Its 0.38-inch rotor-width specification is separate from rotor diameter. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized applications. Components must be selected to suit the complete brake system. DynaPro Single-VW is an opposed two-piston billet caliper for selected classic Volkswagen disc-brake arrangements. Two 1.62-inch stainless pistons and a 2.22-inch lug spacing identify the configuration. Verify the installed brake conversion; a Volkswagen badge alone does not establish fitment.
Technical Details
- Manufacturer part number: 120-16070
- Component: Dynapro Single VW; one individual caliper
- Placement: Universal mounting orientation; verify axle position
- Construction and finish: Billet aluminum; Type III Anodize
- Nominal rotor width: 0.38 inches
- Rotor width range: 0.25–0.38 inches
- Rotor diameter range: 6.00–13.00 inches
- Caliper weight reference: 2.3 lb
- Mounting interface: Lug; mounting centers 2.22 inches
- Mounting-hole diameter: 0.40 inches
- Mount height: 2.22 inches
- Hydraulic inlet thread: M10 x 1.00
- Pistons: 2; stainless steel; bore dimensions 1.62 inches
- Hydraulic piston area: 2.06 square inches
- Dust boots: No
- Brake pad shape: 6812; shape number does not specify a friction compound
Fitment & Compatibility
For selected classic air-cooled Volkswagen disc-brake arrangements using the 2.22-inch lug mount. Compare the actual bracket, rotor width and hydraulic fitting. A specific Volkswagen model or year is not established here, and no direct axle position is assigned without checking the installed conversion.
Wilwood caliper specifications · Wilwood technical reference
Share the vehicle and the brake system actually installed with PMB Performance before ordering if the configuration is uncertain. We draw on over 20 years of parts and fitment experience when comparing the rotor, mount and caliper.
