Product details

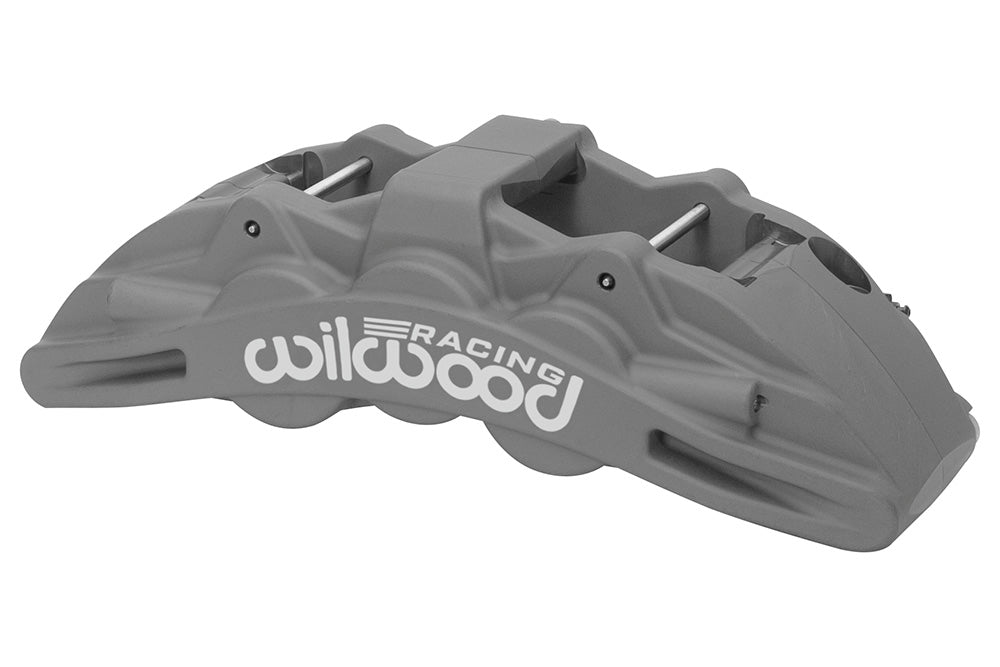

Wilwood SX6R-ST calipers must be matched by width and mounting configuration. This anodized right brake caliper has 1.75/1.38/1.38-inch bore dimensions, a 9.84-inch mounting span and the 1.25-inch-wide rotor specification. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc braking equipment for motorsport, street-performance and specialized use. Calipers, rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must be matched to one another. SX6R-ST is a forged six-piston radial caliper equipped with Thermlock insulated pistons. Its wide mounting span and D1792 pad shape must be matched to the installed bracket and rotor. The caliper does not include a vehicle-specific mounting conversion.
Technical Details
- Manufacturer part number: 120-16039
- Component: SX6R Radial Mount; one individual caliper
- Placement: Right
- Construction and finish: Forged aluminum; Type III Anodize
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.10–1.28 inches
- Rotor diameter range: 12.88–15.00 inches
- Caliper weight reference: 11.6 lb
- Mounting interface: Radial; mounting centers 9.84 inches
- Mounting-hole diameter: 0.52 inches
- Hydraulic inlet thread: 1/8-27 NPT
- Pistons: 6; Thermlock insulated; bore dimensions 1.75/1.38/1.38 inches
- Hydraulic piston area: 5.40 square inches
- Dust boots: No
- Brake pad shape: D1792; shape number does not specify a friction compound
Fitment & Compatibility
Check bracket location and rotor sweep using the installation drawing; 9.84-inch radial mounting alone does not establish a vehicle fit. Use the right-hand caliper and keep the bleed arrangement in the specified orientation. Use the 1.75/1.38/1.38-inch piston-bore specification when reviewing hydraulic balance, and verify hose routing and wheel clearance.
