Wilwood Red D154-DS Caliper, 2.50-Inch Piston Bore

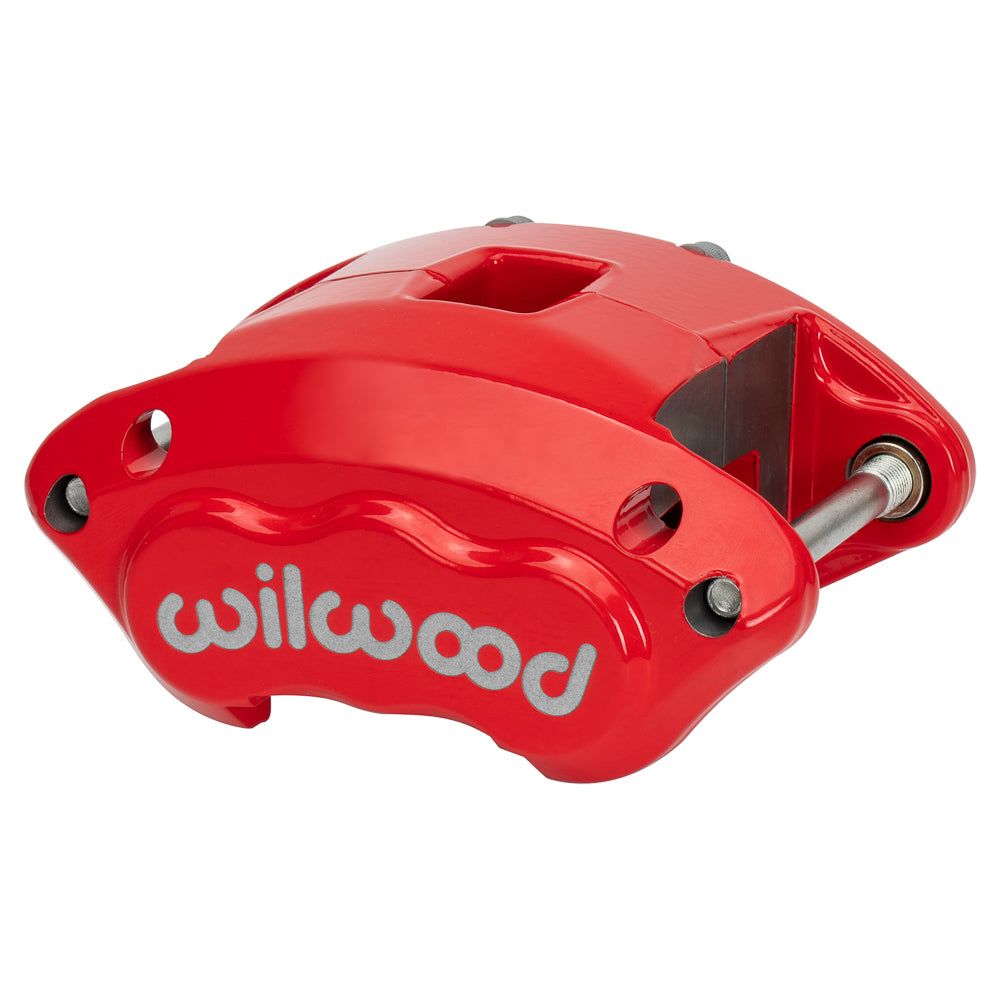

The rotor and bracket determine whether this red Wilwood D154-DS brake caliper is the correct choice. Its 1.04-inch rotor-width configuration works with the floating mount and 1-piston layout detailed below. Bill Wood established Wilwood Engineering in 1977. From Camarillo, California, the company designs and manufactures calipers, rotors, master cylinders, valves, fittings and brake lines as part of its disc brake range. Its motorsport, street-performance and specialized products are chosen around the requirements of the whole braking system. This D154-DS floating caliper uses a single 2.50-inch stainless piston with a dust wiper seal and D154-shape pads. It replaces the matching GM metric brake arrangement only after the slider, rotor and hose connection have been checked. It is not an axle kit.

Technical Details

• Manufacturer part number: 120-15796-RD
• Component: D154-Dust Seal Single Piston Floater; one individual caliper
• Placement: Universal mounting orientation; verify axle position
• Construction and finish: Forged aluminum; Red Powder Coat
• Mounting interface: Floating; mounting centers 5.46 inches
• Mounting-hole diameter: 0.69 inches
• Mount height: 0.37 inches
• Hydraulic inlet thread: M10 x 1.50

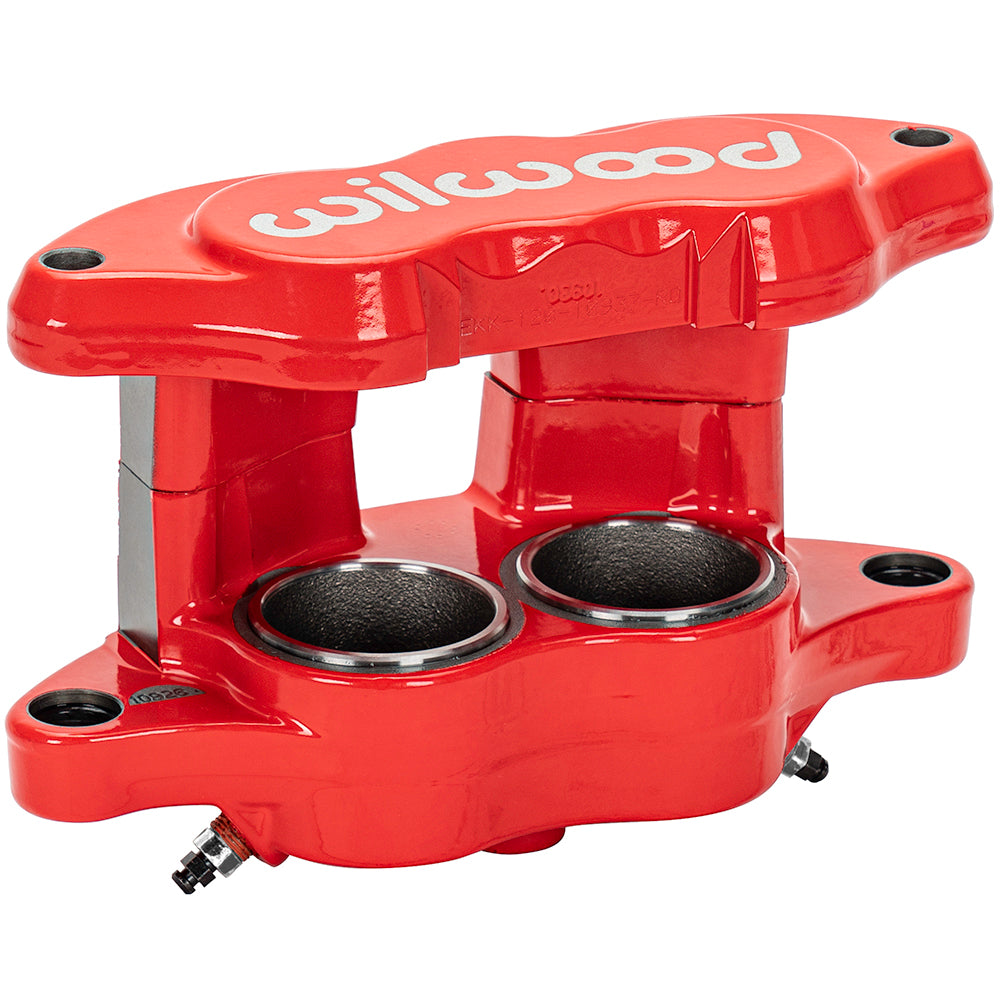

• Pistons: 1; stainless steel; bore dimensions 2.50 inches
• Hydraulic piston area: 4.90 square inches
• Dust boots: Yes
• Brake pad shape: D154; shape number does not specify a friction compound
• Nominal rotor width: 1.04 inches
• Rotor width range: 0.87–1.04 inches
• Rotor diameter range: 11.00–12.19 inches
• Caliper weight reference: 4.7 lb

Fitment & Compatibility

This caliper requires the measured 1.04-inch rotor-width configuration and the matching floating bracket on 5.46-inch centers. Axle placement is determined by the engineered brake package, not by a generic caliper designation. Confirm the M10 x 1.50 hydraulic inlet, pad outline and total piston area with the rest of the brake system before assembly.

Wilwood caliper specifications

With over 20 years of experience in parts and fitment, PMB Performance can help you compare the actual brake assembly. Include rotor width, mounting centers and the existing caliper details when requesting assistance.
