Product details

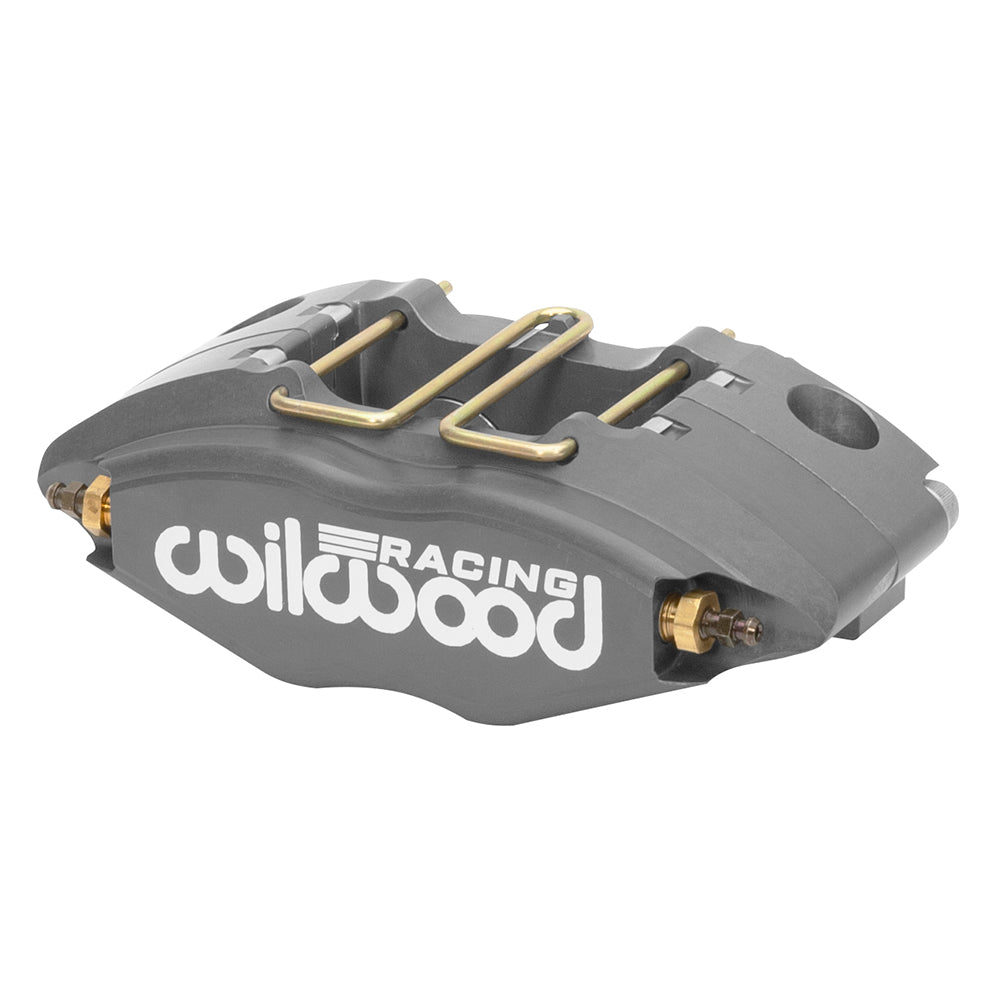

The anodized Wilwood Powerlite-ST is an individual brake caliper. It combines a 5.08-inch attachment span with 1.25/1.25-inch piston bores; confirm the rotor centerline and 0.86-inch width configuration before installation. Powerlite-ST uses a compact radial-mount body with Thermlock insulated pistons and top-supported 7912-shape pads. The bore size must be selected with the master cylinder and hydraulic balance; nominal rotor width is independent of rotor diameter and wheel diameter. For motorsport, street-performance and specialized braking applications, Wilwood Engineering designs and manufactures disc brake systems and their individual components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood supplies a range encompassing calipers, rotors, master cylinders, valves, fittings and brake lines, all selected to match the complete system.
Technical Details
- Manufacturer part number: 120-15735
- Component: Powerlite Radial Mount; one individual caliper
- Placement: Universal mounting orientation; verify axle position
- Construction and finish: Forged aluminum; Type III Anodize
- Pistons: 4; Thermlock insulated; bore dimensions 1.25/1.25 inches
- Hydraulic piston area: 2.46 square inches
- Dust boots: No
- Brake pad shape: 7912; shape number does not specify a friction compound
- Nominal rotor width: 0.86 inches
- Rotor width range: 0.79–0.86 inches
- Rotor diameter range: 9.45–11.00 inches
- Caliper weight reference: 2.8 lb
- Mounting interface: Radial; mounting centers 5.08 inches
- Mounting-hole diameter: 0.40 inches
- Mount height: 1.56 inches
- Hydraulic inlet thread: 1/8-27 NPT
Fitment & Compatibility
Compare the caliper drawing with your radial bracket before ordering. The 5.08-inch mounting centers and 1.25/1.25-inch bores must suit the installed rotor offset and hydraulic system. Axle placement is determined by the engineered brake package, not by a generic caliper designation. A suitable pad sweep and clearance inside the wheel must be verified independently of rotor width.
