Product details

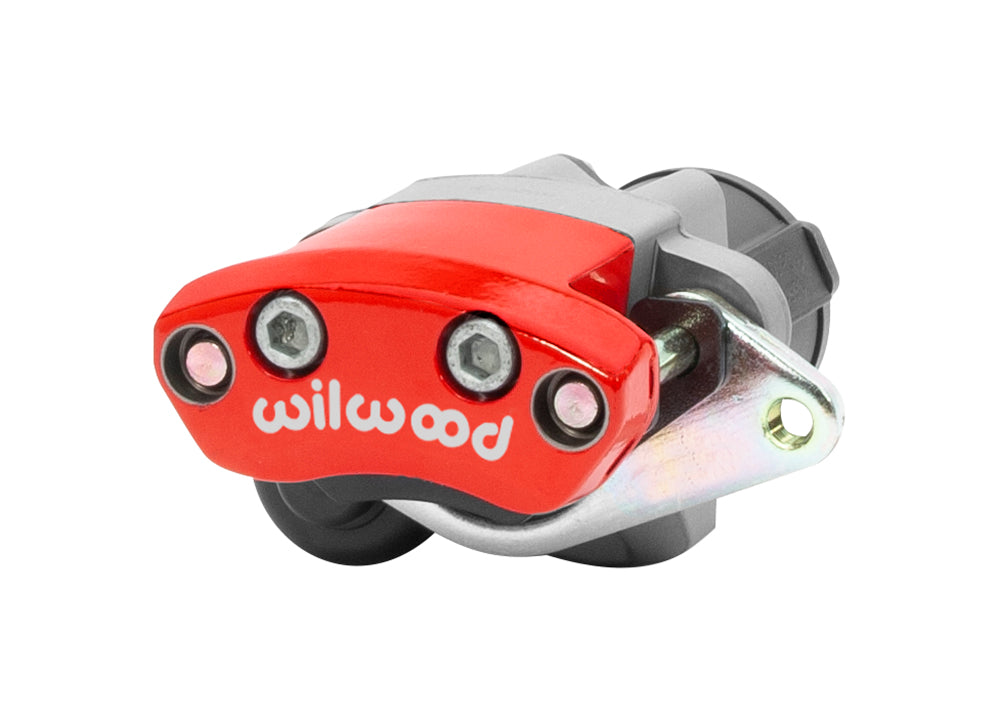

With 1 piston and 1.25-inch bore dimensions, the red Wilwood EPB right electric parking brake caliper must be matched to the brake system rather than selected by finish alone. Its 0.81-inch rotor-width specification is separate from rotor diameter. An electric motor and reduction drive operate this separate parking caliper. The brake-system controller, harness and dashboard switch are separate components. Mounting geometry, motor clearance and rotor width must all be checked; this is one caliper rather than a complete parking-brake conversion. For motorsport, street-performance and specialized braking applications, Wilwood Engineering designs and manufactures disc brake systems and their individual components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood supplies a range encompassing calipers, rotors, master cylinders, valves, fittings and brake lines, all selected to match the complete system.
Technical Details
- Manufacturer part number: 120-15700-RD
- Component: Electric Parking Brake; one individual caliper
- Placement: Right
- Construction and finish: aluminum / Steel; Red Powder Coat
- Mounting interface: Lug; mounting centers 4.75 inches
- Mount height: 0.36 inches
- Hydraulic inlet: none; this is a separate parking caliper
- Nominal rotor width: 0.81 inches
- Rotor width range: 0.75–0.81 inches
- Rotor diameter range: 11.00–14.00 inches
- Caliper weight reference: 4.9 lb
- Pistons: 1; steel; bore dimensions 1.25 inches
- Actuation: electric motor and gear drive
- Dust boots: No
- Brake pad shape: 6407; shape number does not specify a friction compound
One electric parking caliper with its motor; the control module, harness, dashboard switch, rotor and vehicle-specific mounting adapters are separate. Confirm the required pad configuration before assembly.
Fitment & Compatibility
Use this motor-operated caliper only as a parking brake in a properly engineered installation. Confirm the motor side, rotor centering and mounting plate. The controller, electrical harness, switch and vehicle-specific attachment hardware must be selected separately; no hydraulic inlet is used.
Wilwood caliper specifications · Wilwood technical reference
Share the vehicle and the brake system actually installed with PMB Performance before ordering if the configuration is uncertain. We draw on over 20 years of parts and fitment experience when comparing the rotor, mount and caliper.
