Product details

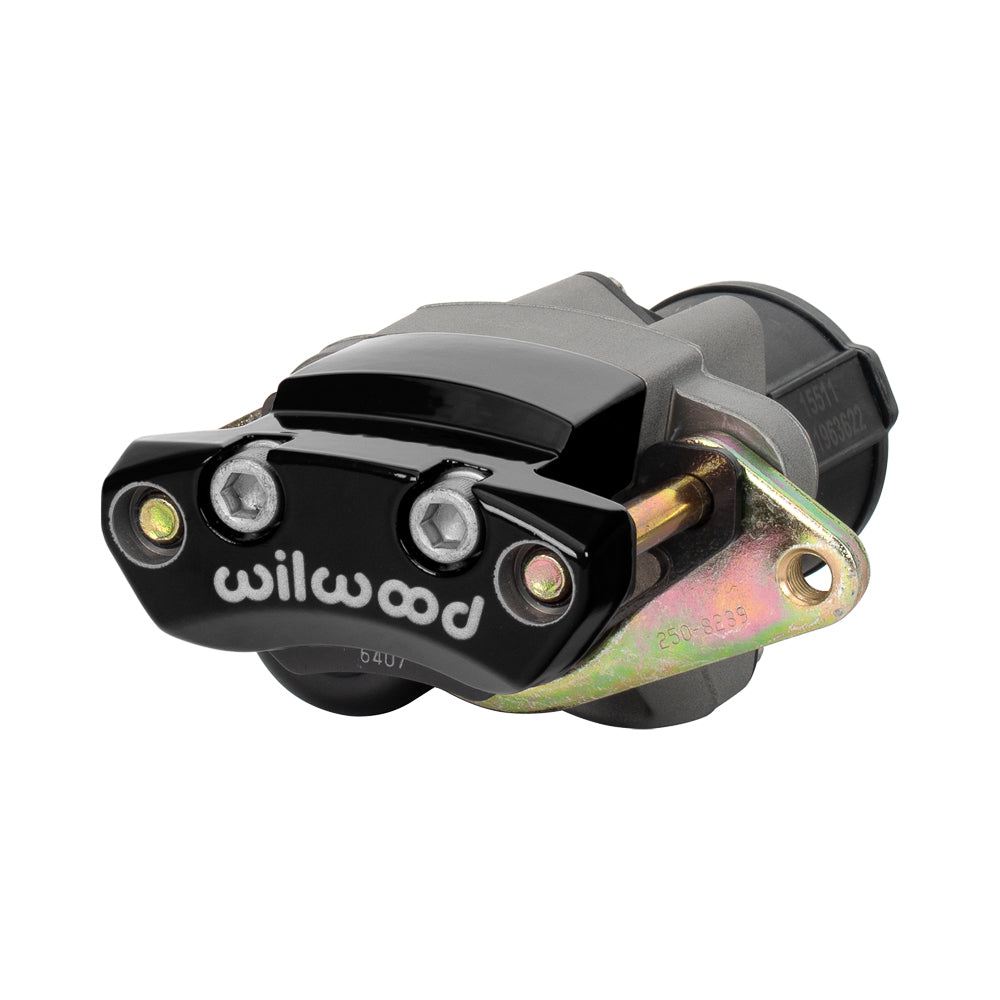

Wilwood supplies this right EPB electric parking brake caliper with a black finish. Its 4.75-inch mounting span and 1.25-inch-wide rotor configuration are key checks when selecting a single caliper for an existing system. An electric motor and reduction drive operate this separate parking caliper. The brake-system controller, harness and dashboard switch are separate components. Mounting geometry, motor clearance and rotor width must all be checked; this is one caliper rather than a complete parking-brake conversion. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc braking equipment for motorsport, street-performance and specialized use. Calipers, rotors, master cylinders, valves, fittings and brake lines form a range whose individual components must be matched to one another.
Technical Details
- Manufacturer part number: 120-15687-BK
- Component: Electric Parking Brake; one individual caliper
- Placement: Right
- Construction and finish: aluminum / Steel; Black Powder Coat
- Nominal rotor width: 1.25 inches
- Rotor width range: 1.19–1.25 inches
- Rotor diameter range: 11.00–14.00 inches
- Caliper weight reference: 5.1 lb
- Pistons: 1; steel; bore dimensions 1.25 inches
- Actuation: electric motor and gear drive
- Dust boots: No
- Brake pad shape: 6407; shape number does not specify a friction compound
- Mounting interface: Lug; mounting centers 4.75 inches
- Mount height: 1.18 inches
- Hydraulic inlet: none; this is a separate parking caliper
One electric parking caliper with its motor; the control module, harness, dashboard switch, rotor and vehicle-specific mounting adapters are separate. Confirm the required pad configuration before assembly.
Fitment & Compatibility
Use this motor-operated caliper only as a parking brake in a properly engineered installation. Confirm the motor side, rotor centering and mounting plate. The controller, electrical harness, switch and vehicle-specific attachment hardware must be selected separately; no hydraulic inlet is used.
Wilwood caliper specifications · Wilwood technical reference
With over 20 years of experience in parts and fitment, PMB Performance can help you compare the actual brake assembly. Include rotor width, mounting centers and the existing caliper details when requesting assistance.
