Product details

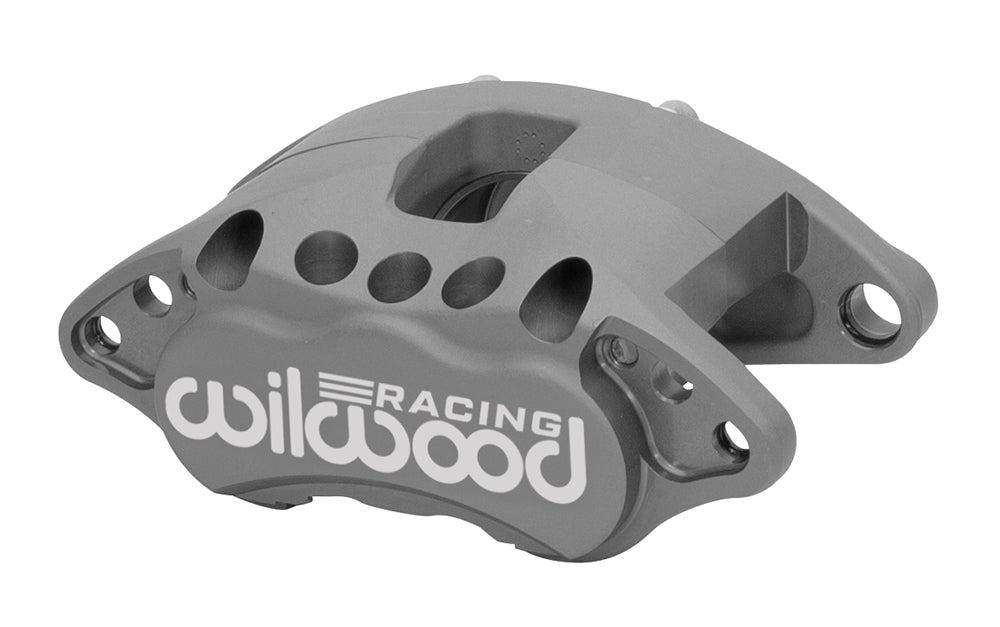

With 1 piston and 2.75-inch bore dimensions, the anodized Wilwood D52-R brake caliper must be matched to the brake system rather than selected by finish alone. Its 0.81-inch rotor-width specification is separate from rotor diameter. The D52-R is a single-piston floating race caliper using the D52 pad outline and stock-height mounting geometry. Slide pins and vibration dampeners are not supplied. Match the racing rules and the complete sliding support before installation. Calipers, brake rotors, master cylinders, valves, fittings and brake lines are among the disc brake components designed and manufactured by Wilwood Engineering. Bill Wood founded the company in 1977; it is based in Camarillo, California. The range serves motorsport, street-performance and specialized systems, with component selection determined by the full brake arrangement.
Technical Details
- Manufacturer part number: 120-15610
- Component: D52-R Single Piston Floater; one individual caliper
- Placement: Universal mounting orientation; verify axle position
- Construction and finish: Forged aluminum; Type III Anodize
- Nominal rotor width: 0.81 inches
- Rotor width range: 0.75–0.81 inches
- Rotor diameter range: 11.00–12.19 inches
- Caliper weight reference: 4.6 lb
- Pistons: 1; stainless steel; bore dimensions 2.75 inches
- Hydraulic piston area: 5.94 square inches
- Dust boots: No
- Brake pad shape: D52; shape number does not specify a friction compound
- Mounting interface: Floating; mounting centers 7.06 inches
- Mounting-hole diameter: 0.69 inches
- Mount height: 0.77 inches
- Hydraulic inlet thread: 7/16-20
Fitment & Compatibility
Compare the caliper drawing with your floating bracket before ordering. The 7.06-inch mounting centers and 2.75-inch bore must suit the installed rotor offset and hydraulic system. Axle placement is determined by the engineered brake package, not by a generic caliper designation. A suitable pad sweep and clearance inside the wheel must be verified independently of rotor width.
Wilwood caliper specifications
For help selecting the correct caliper, contact PMB Performance with the brake package and measured mounting arrangement. Our over 20 years of parts and fitment experience supports a configuration check before purchase.
