Product details

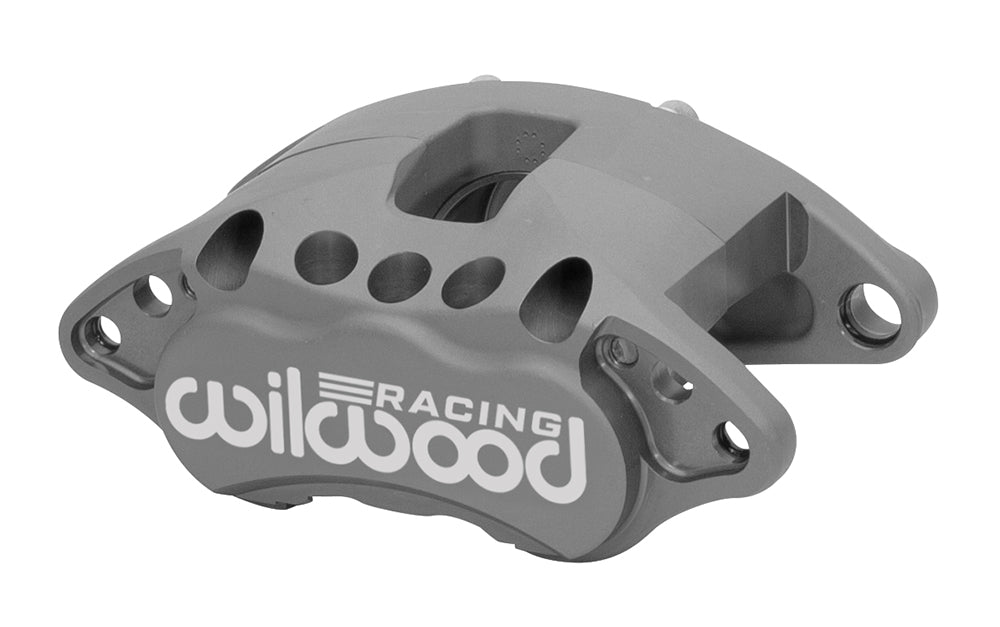

An individual Wilwood D52-R brake caliper, finished in anodized, is specified here. Use the 2.38-inch piston bore, 7.06-inch mounting centers and 1.04-inch rotor width to compare it with the existing brake assembly. The D52-R is a single-piston floating race caliper using the D52 pad outline and stock-height mounting geometry. Slide pins and vibration dampeners are not supplied. Match the racing rules and the complete sliding support before installation. For motorsport, street-performance and specialized braking applications, Wilwood Engineering designs and manufactures disc brake systems and their individual components. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood supplies a range encompassing calipers, rotors, master cylinders, valves, fittings and brake lines, all selected to match the complete system.
Technical Details
- Manufacturer part number: 120-15608
- Component: D52-R Single Piston Floater; one individual caliper
- Placement: Universal mounting orientation; verify axle position
- Construction and finish: Forged aluminum; Type III Anodize
- Nominal rotor width: 1.04 inches
- Rotor width range: 0.94–1.04 inches
- Rotor diameter range: 11.00–12.19 inches
- Caliper weight reference: 4.8 lb
- Mounting interface: Floating; mounting centers 7.06 inches
- Mounting-hole diameter: 0.69 inches
- Mount height: 0.77 inches
- Hydraulic inlet thread: 7/16-20
- Pistons: 1; stainless steel; bore dimensions 2.38 inches
- Hydraulic piston area: 4.45 square inches
- Dust boots: No
- Brake pad shape: D52; shape number does not specify a friction compound
Fitment & Compatibility
Match the 7.06-inch floating attachment to the existing bracket, then check caliper centering over the 1.04-inch nominal-width rotor. Axle placement is determined by the engineered brake package, not by a generic caliper designation. The 7/16-20 connection must use the correct fitting and seal. Check the full wheel envelope with the actual bracket and rotor installed.
Wilwood caliper specifications
PMB Performance has over 20 years of experience with parts and brake fitment. Send the installed rotor dimensions, bracket measurements and hydraulic details so we can help compare the component before you order.
