Product details

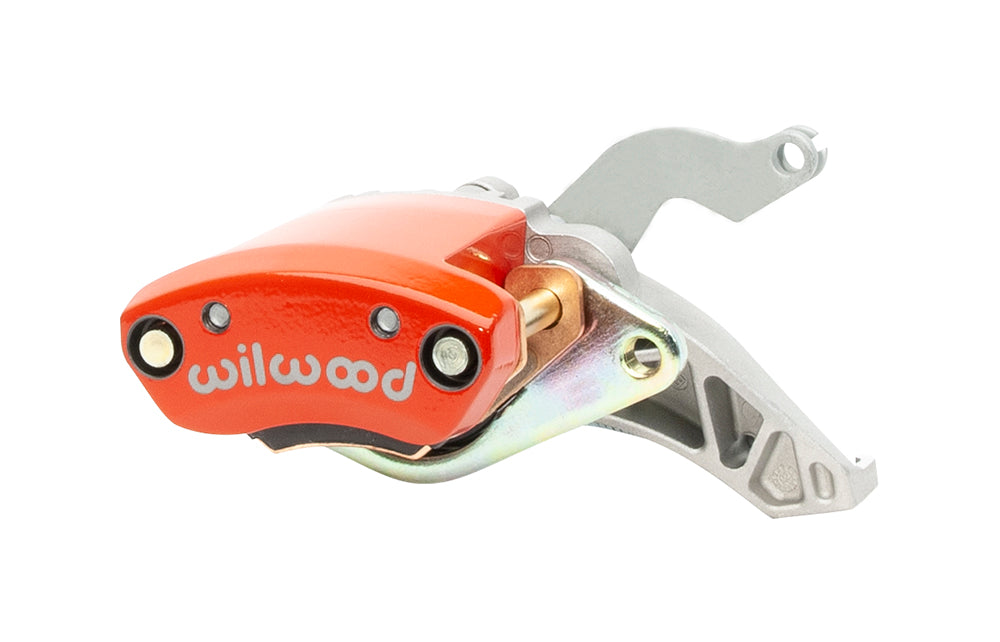

For a dedicated mechanical parking brake, this right-hand Wilwood MC4 uses a cable lever and red floating body. Match its 4.75-inch mounting plate and 1.10-inch-wide rotor-width version to the brake assembly. Wilwood Engineering’s disc brake range includes calipers, rotors, master cylinders, valves, fittings and brake lines. Bill Wood founded the company in 1977 in California; it is based in Camarillo and serves motorsport, street-performance and specialized brake applications.
The MC4 is a separate cable-operated parking brake caliper, not a hydraulic service caliper. Its lever can be clocked in three positions for cable routing, with a return spring and a manual wear adjuster. The lever accepts a 0.310-inch barrel-ended cable.
Technical Details
- Manufacturer part number: 120-15484-RD
- Function: Separate mechanically operated parking brake caliper
- Cable pull: Right hand; lever clockable in three positions
- Mounting plate: 4.75-inch mounting centers
- Rotor width: 1.10-inch nominal; 0.99–1.10-inch range
- Rotor diameter: 11.00–14.00 inches
- Piston: 1.19-inch aluminum, dust booted
- Construction: Die-cast aluminum body with a forged aluminum anvil
- Body finish: Red Powder Coat
- Cable end: 0.310-inch barrel end
- Adjustment: Manual wear adjuster and cable return spring
- Included components: One caliper with mounting plate and parking brake pads
Fitment & Compatibility
Use a separate parking brake cable with the correct barrel end and sufficient lever travel. Check cable pull direction, lever clearance and mounting-plate position. This mechanical caliper does not connect to a hydraulic brake hose.
Parking pads and the mounting plate are included. Match the parking brake cable, rotor position, bracket placement and cable routing to the vehicle.
