Product details

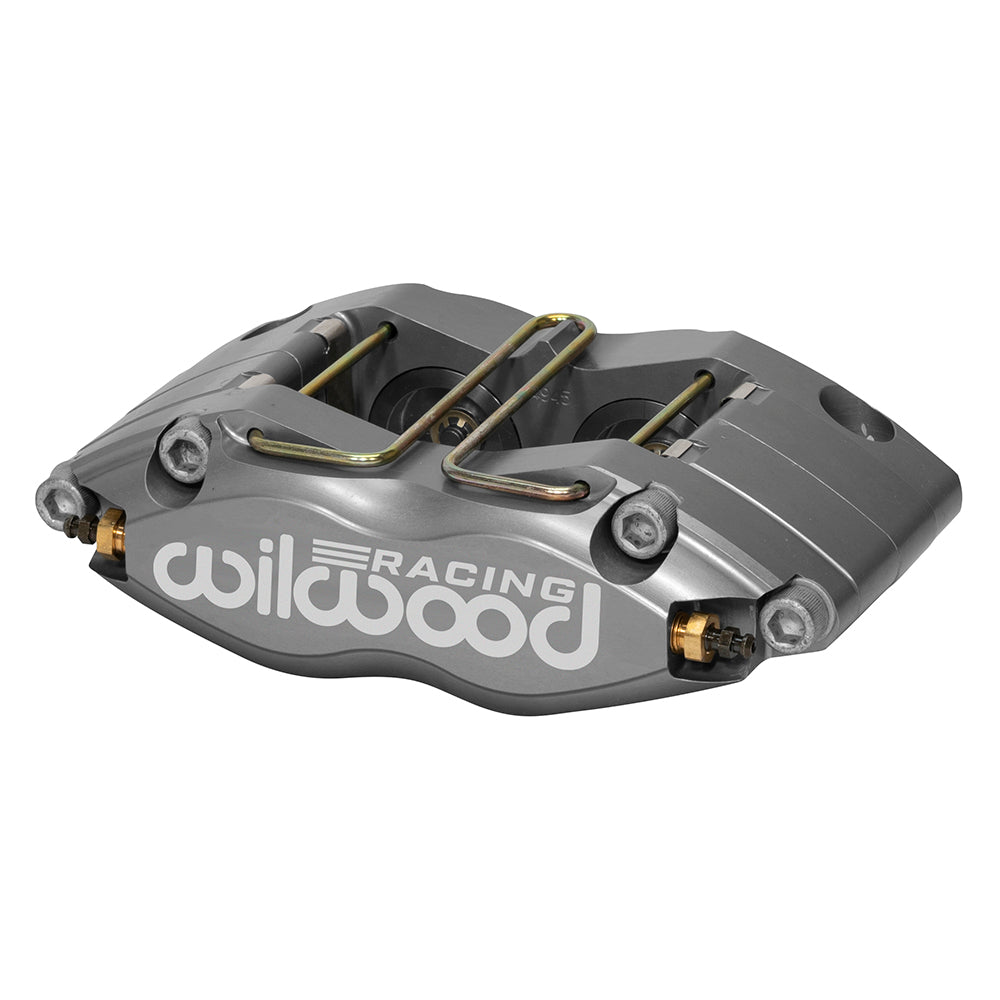

The Wilwood Dynapro-ST Radial uses four 1.75-inch Thermlock pistons to limit heat transfer from the pads into the caliper, fluid and seals. This Type III anodized forged aluminum version includes dust boots, a 5.98-inch radial mounting pattern and a nominal 0.81-inch rotor-width specification. It is a single hydraulic caliper for a matching rotor and bracket arrangement. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, Wilwood designs and manufactures disc brake systems and parts for motorsport, street-performance and specialized applications, from calipers and rotors to master cylinders, valves, fittings and brake lines.
Technical Details
- Manufacturer part number: 120-15453
- Mounting: universal side configuration; Radial; 5.98-inch centers; 0.39-inch mounting holes
- Mount height: 1.61 inches
- Rotor width: 0.81-inch nominal; 0.75–0.86-inch permitted range
- Rotor diameter range: 10.75–12.19 inches
- Pad shape: Wilwood type 7816; compound selected separately
- Piston arrangement: 4 pistons; 1.75-inch bores; Thermlock
- Hydraulic piston area: 4.80 square inches, as specified by Wilwood
- Body and finish: Forged aluminum; Type III anodized
- Fluid inlet: 1/8-27 NPT
- Dust boots: Yes
- Component: Wilwood Dynapro-ST Radial; one caliper
Fitment & Compatibility
Check the caliper-to-bracket attachment and rotor offset before ordering. Changing piston diameter changes hydraulic requirements even when a different caliper shares the same bolt spacing.
This listing covers one caliper. Match the brake pads, rotor, hose and mounting arrangement to the complete brake system.
The four-piston Dynapro-ST uses Thermlock insulated pistons to limit heat transfer from pads into the caliper, fluid and seals. Its radial mount and type 7816 pads must be combined with the specified rotor width and installation geometry.
PMB Performance has over 20 years of brake and parts experience. Send us the caliper specifications, rotor measurements and bracket details if you need help selecting the correct component.
